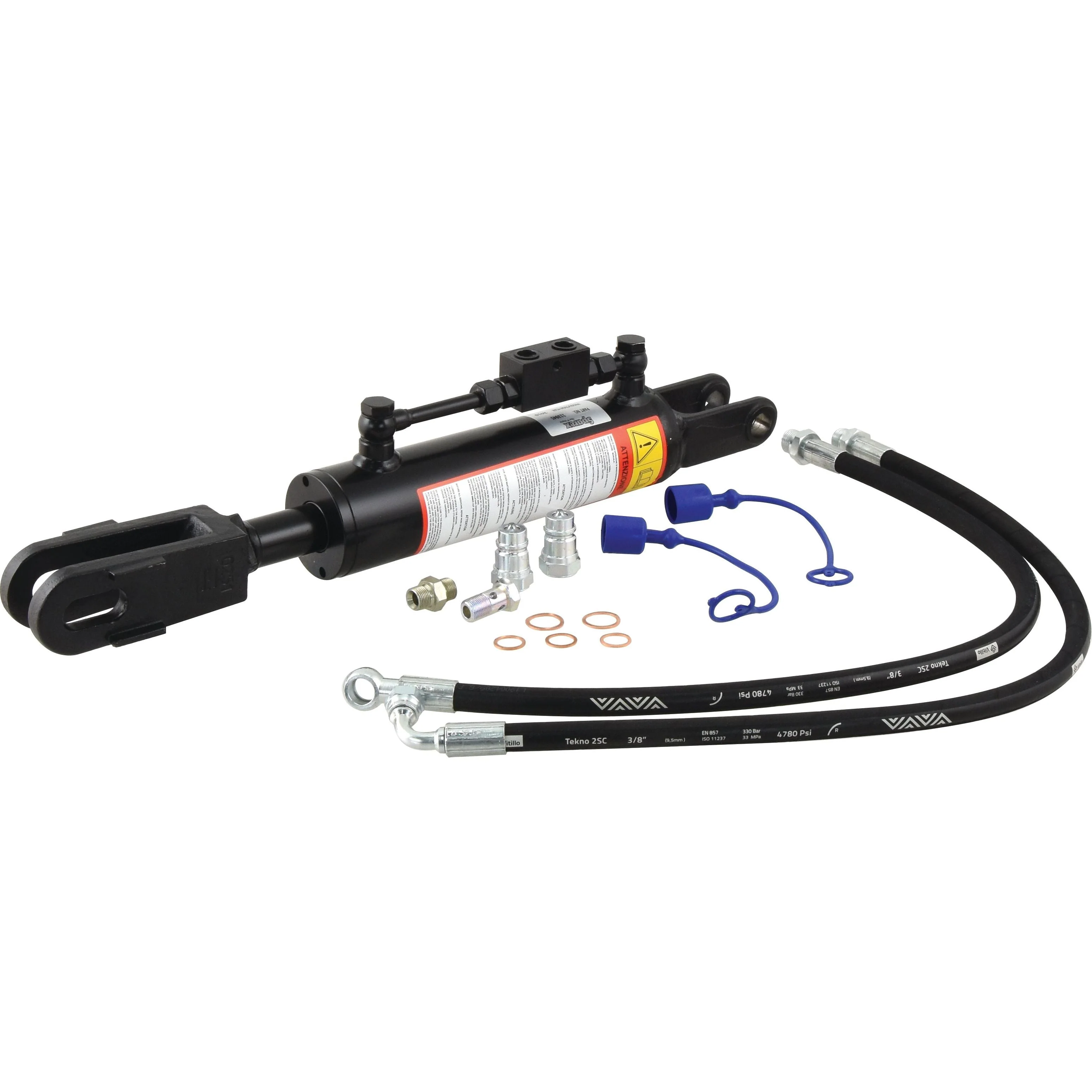

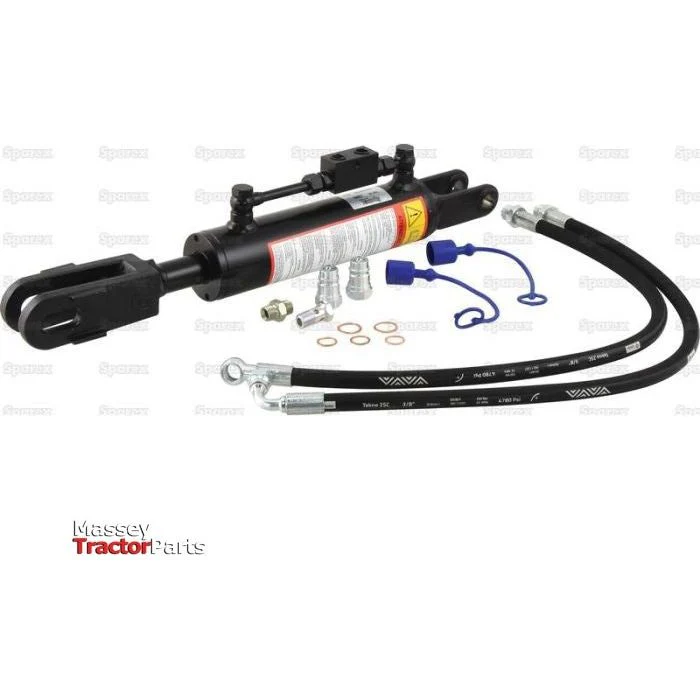

Hydraulic Levelling Box - Sparex Part No. S.113945

Enhance your agricultural machinery with the Hydraulic Levelling Box from Sparex. Designed for durability and efficiency, this hydraulic lift is perfect for various applications, ensuring optimal performance in the field.

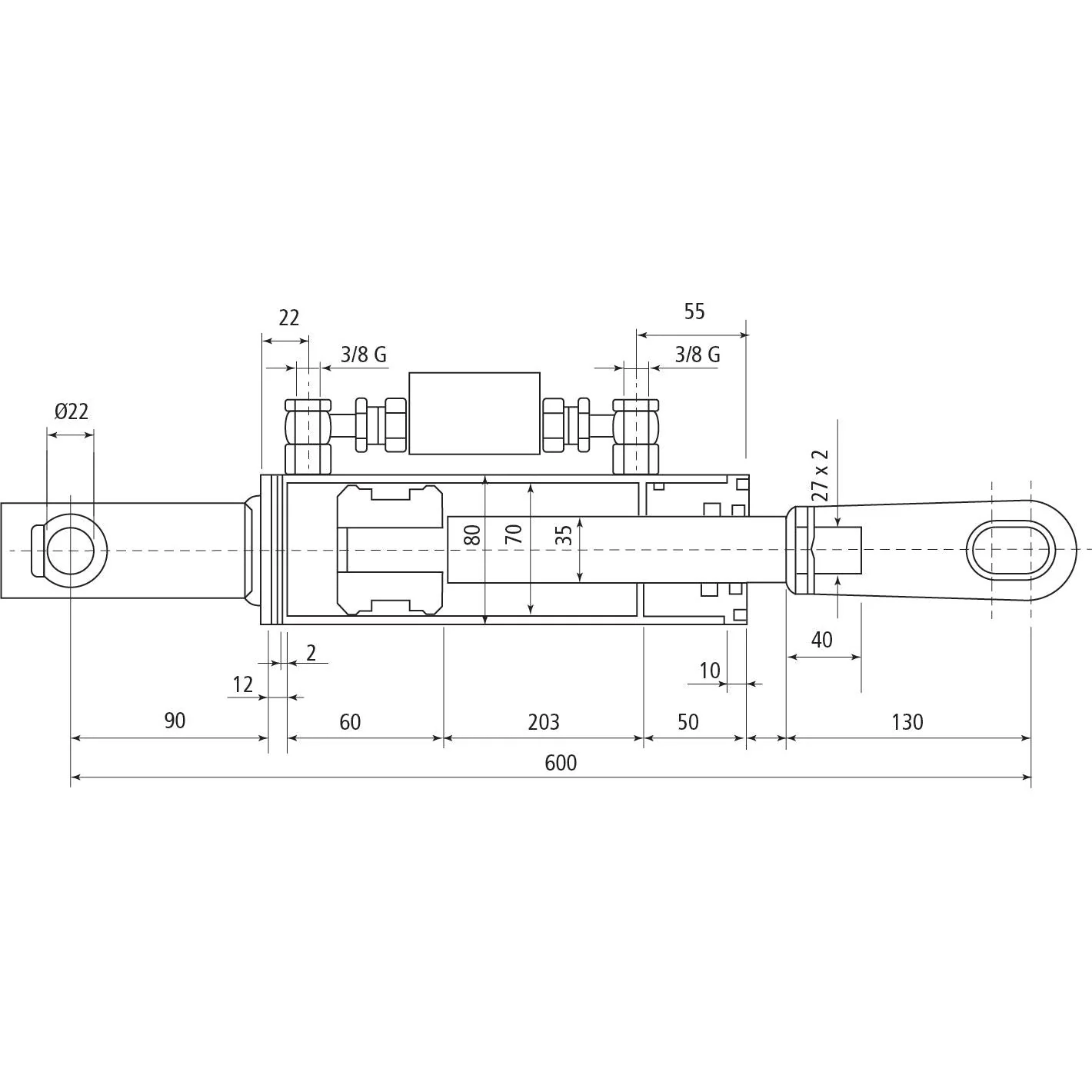

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore: 70 mm
• End Fittings A: Fork Hole Ø 22 mm
• End Fittings B: Fork Hole Ø 22 x 48 mm
• Maximum Length: 803 mm
• Minimum Length: 600 mm
• Related Products: 33137, 33144
• Rod Diameter: 35 mm
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External: 75 mm (Top) & 59 mm (Bottom)
• Width Internal: 37 mm (Top) & 28 mm (Bottom)

Dimensions

• Width External (inches): 2 61/64 (Top) & 2 21/64 (Bottom)
• Width Internal (inches): 1 29/64 (Top) & 1 7/64 (Bottom)

Compatibility Information

This hydraulic levelling box is compatible with a range of Case IH / International Harvester models, including:

• FARMALL 100C - HI-LO
• FARMALL 100C - POWER SHUTTLE
• FARMALL 105C
• FARMALL 110C - HI-LO
• FARMALL 115C - POWER SHUTTLE
• FARMALL 120C - HI-LO
• FARMALL 85C - POWER SHUTTLE
• FARMALL 90C - HI-LO
• FARMALL 95C - POWER SHUTTLE

Additionally, it fits various Ford / New Holland models, such as:

• T4.105 - HI-LO
• T4.115 - HI-LO
• T5.105 - DUAL COMMAND
• T5.115 - POWER SHUTTLE
• T5.75 - MECHANICAL
• T5.95 - POWER SHUTTLE

Manufacturer Information

Part Number: Case IH / International Harvester 84319878

Upgrade your machinery with the reliable and efficient Hydraulic Levelling Box from Sparex, designed to meet the demands of modern farming.
