Hydraulic Levelling Box - Sparex Part No. S.113937

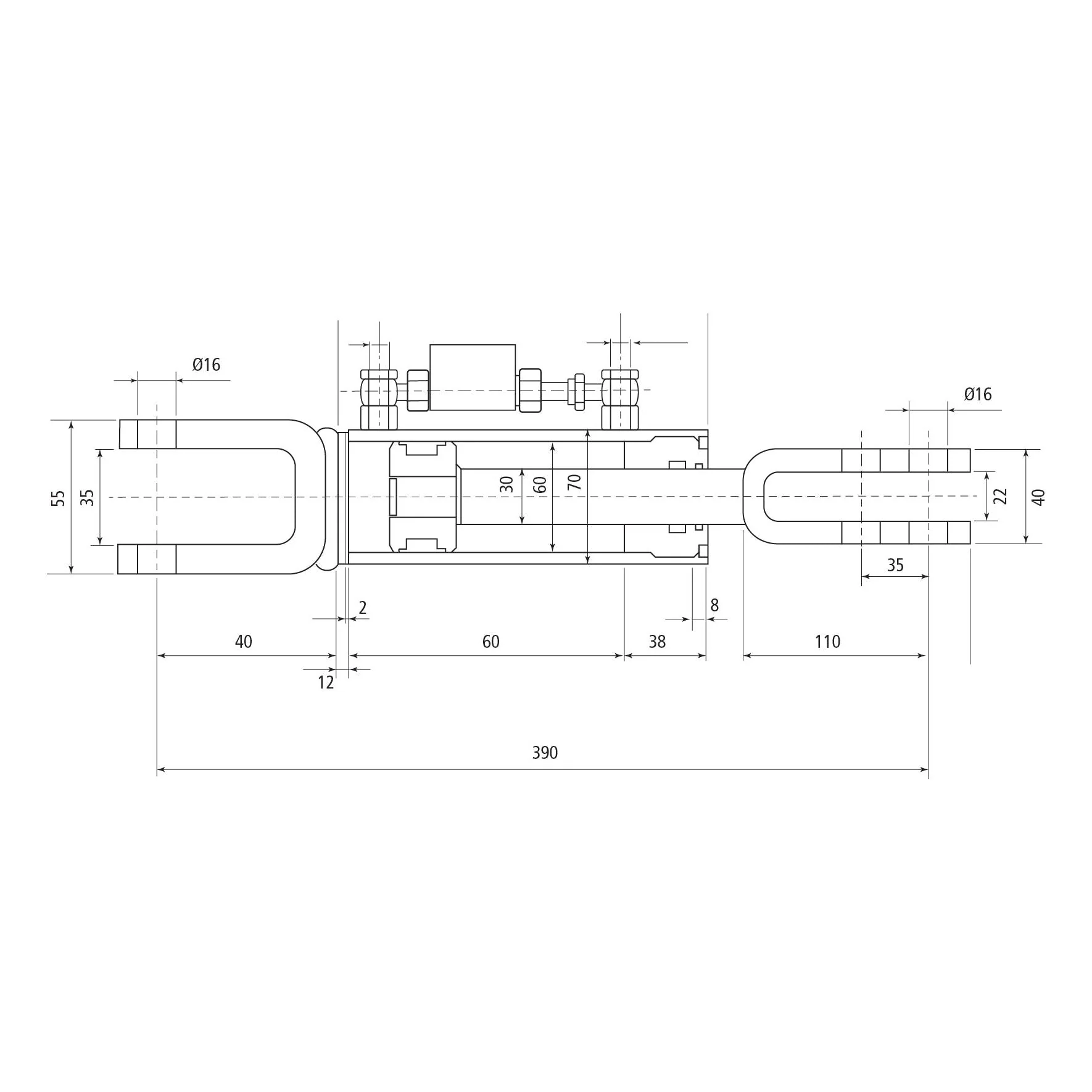

Enhance your agricultural machinery with the Hydraulic Levelling Box from Sparex. Designed for optimal performance, this hydraulic jack features a minimum length of 390mm and a maximum length of 520mm. The internal widths measure 35mm at the top and 22mm at the bottom, while the external widths are 55mm at the top and 40mm at the bottom.

Product Specifications

• Brand: Sparex
• Check Valve Position: Side
• Cylinder Bore: 63mm
• End Fittings A: Fork Hole Ø 16mm
• End Fittings B: Fork Hole Ø 16mm
• Implement End: Fork
• Maximum Length: 520mm
• Minimum Length: 390mm
• Related Products: 33137, 33144
• Rod Diameter: 35mm

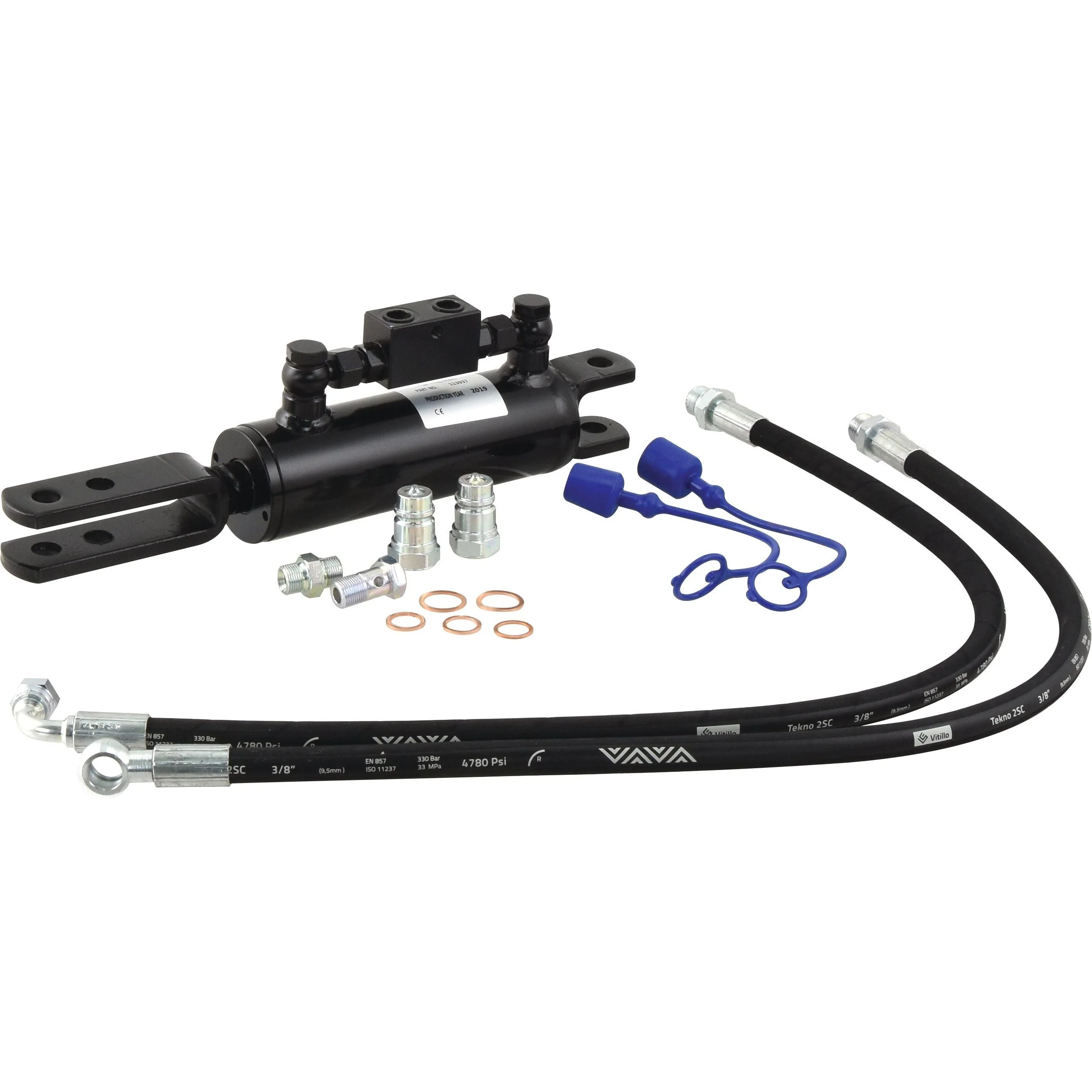

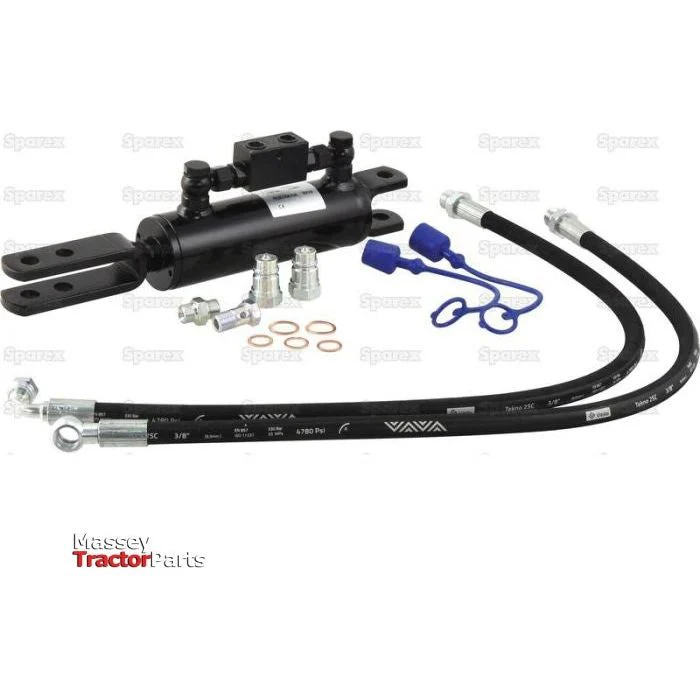

• Supplied With: Hoses
• Tariff Code: 8412212090
• Tractor End: Fork
• Width External: 55mm Top & 40mm Bottom
• Width Internal: 35mm Top & 22mm Bottom

Compatibility Information

This hydraulic levelling box is suitable for Ford / New Holland models including BOOMER 3040, BOOMER 3045, and BOOMER 3050.

Manufacturer Information

Compatible with OEM part numbers: Ford / New Holland 87549639, 87549638.
