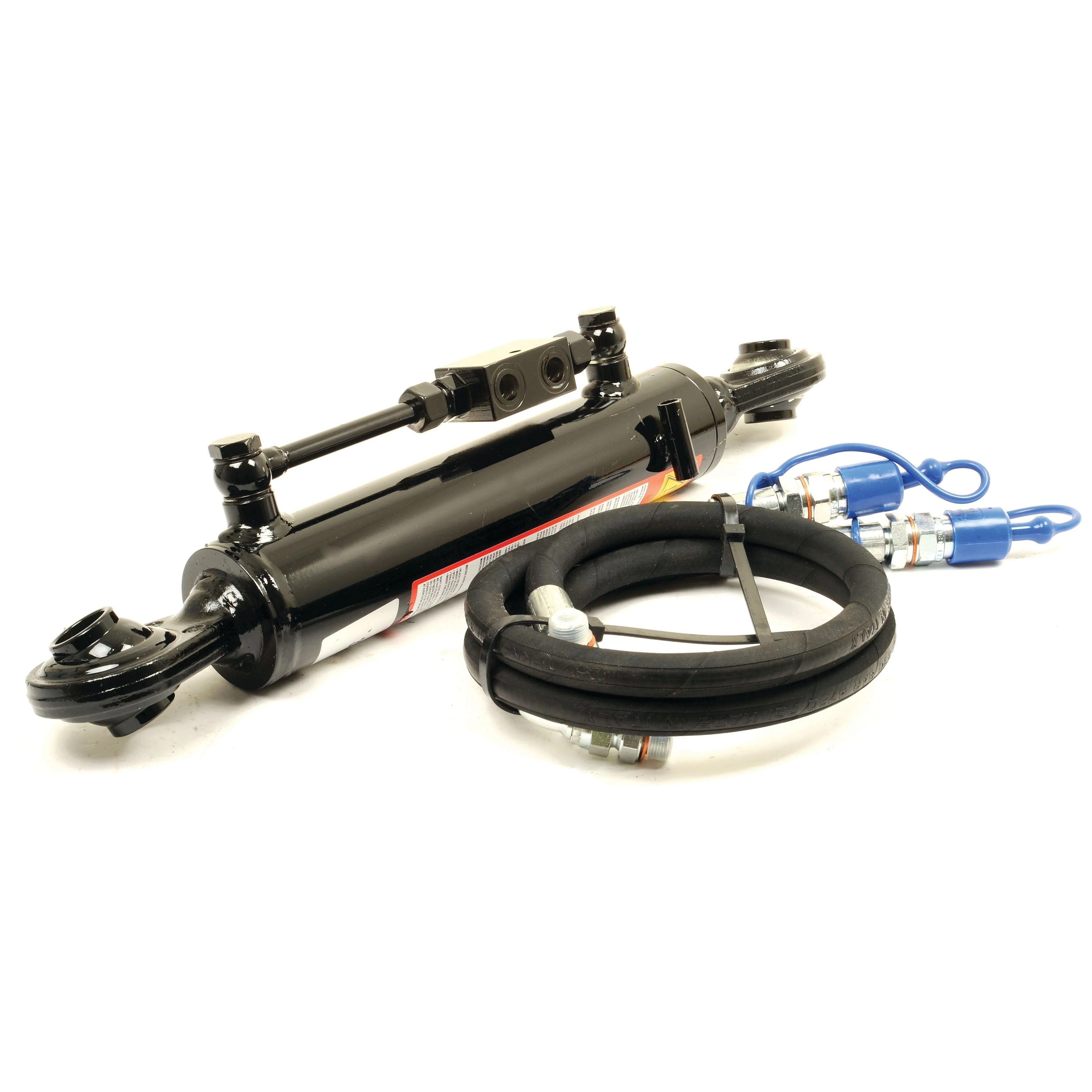

Hydraulic Top Link (Cat.1/2) Ball and Ball, Cylinder Bore: 70mm | Sparex Part No. S.331081

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 550mm and a maximum length of 790mm. It comes complete with a Hose Set for easy installation and use.

Product Specifications

• Alternative to: 331071
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 1
• Category: 1/2
• Check Valve Position: Top
• Cylinder Bore (mm): 70
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 5310
• Maximum Length (mm): 790
• Minimum Length (mm): 550
• Related Products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 164591
• Rod Diameter (mm): 35
• Suitable for Tractors up to: 150hp (110kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 7080
• Tractor End Fixing: Ball End
• Tractor End: Ball

Suitable For

This hydraulic top link is compatible with a variety of tractor models, including:

• Ford / New Holland: TK100A, TK4.100, TK4.100M, TK4.110, TK4.110M, TK4.80F, TK4.80N, TK4.80V, TK4.90, TK4.90M, TK4020, TK4030, TK4030V, TK4040, TK4040M, TK4050, TK4050M, TK4060, TK80A, TK80MA, TK90A, TK90MA
• Kubota: M6040 DTN-Q, M7040 DTN-Q, M8540 DTN-Q, M9540 DTN-Q
• Landini: GLOBUS 50, GLOBUS 55, GLOBUS 60, GLOBUS 65, GLOBUS 70, GLOBUS 75, GLOBUS 80

Manufacturer Information

Part Number: Ford / New Holland 5197936
