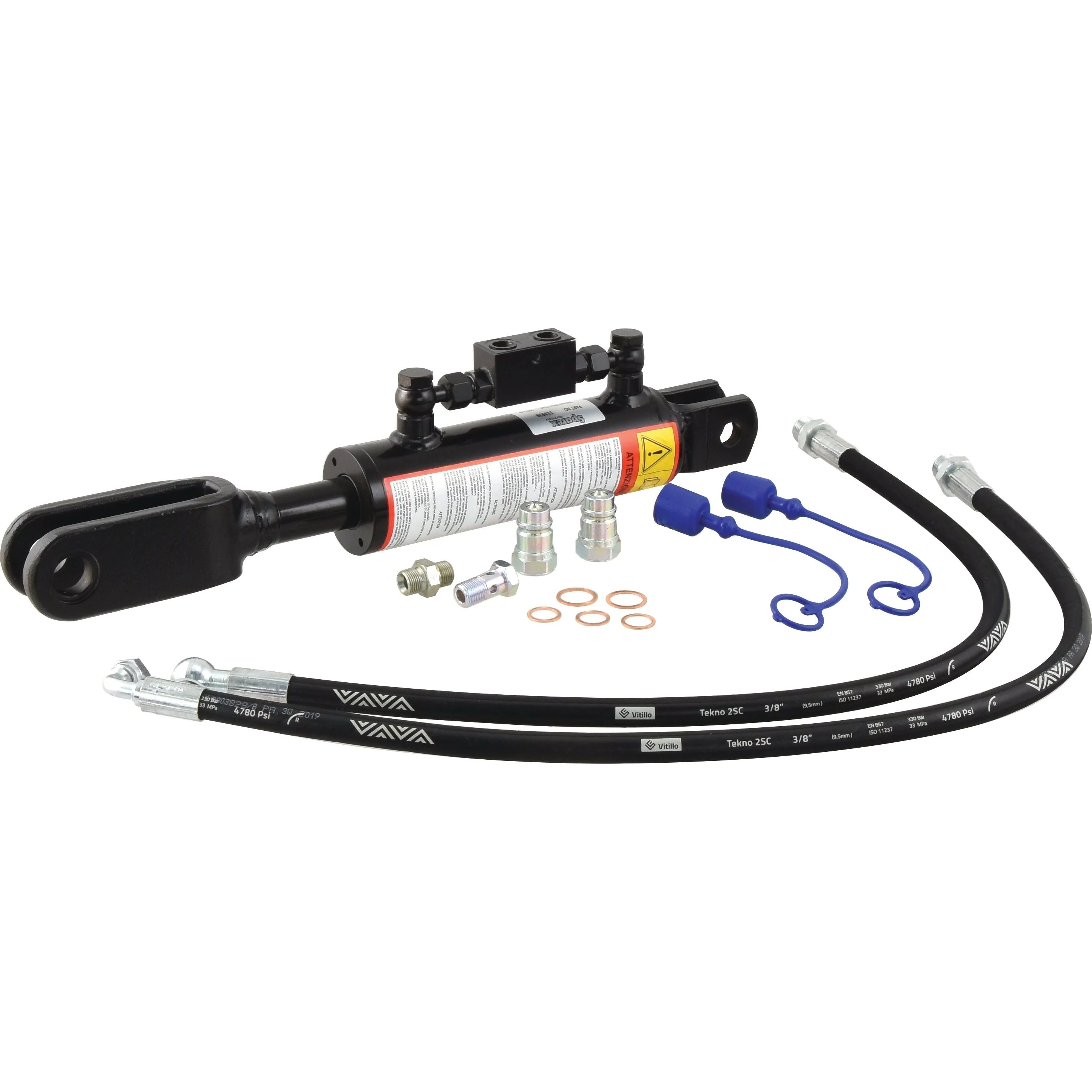

Hydraulic Levelling Box - Sparex Part No. S.113939

Enhance your machinery's performance with the Hydraulic Levelling Box from Sparex. This high-quality hydraulic jack is designed for durability and efficiency, making it an essential component for your agricultural equipment.

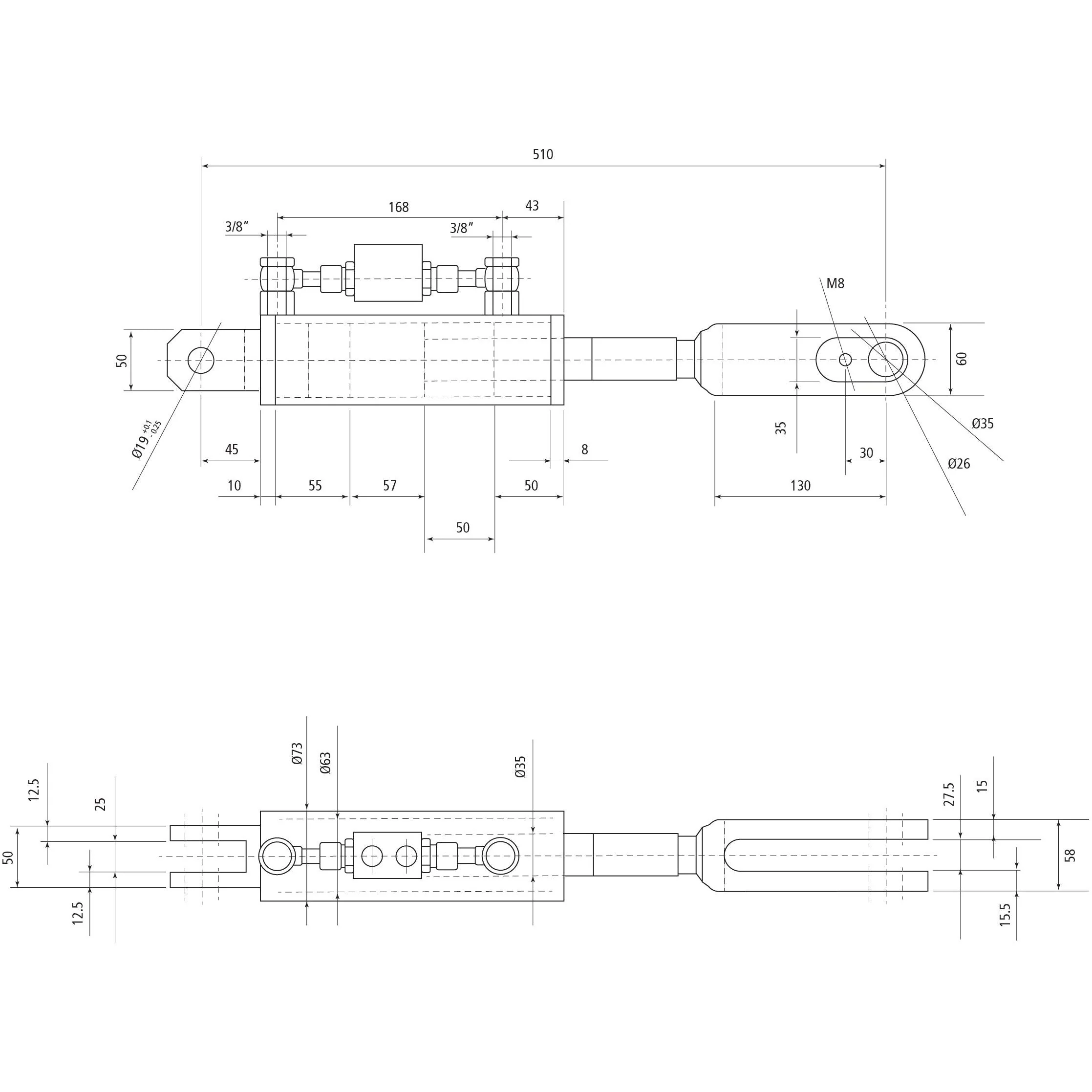

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore: 63 mm
• End Fittings A: Fork Hole Ø 19 mm
• End Fittings B: Fork Hole Ø 26 x 60 mm
• Maximum Length: 569 mm
• Minimum Length: 510 mm
• Related Products: 33137, 33144
• Rod Diameter: 35 mm
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External: 50 mm (Top) & 58 mm (Bottom)
• Width Internal: 25 mm (Top) & 28 mm (Bottom)

Dimensions

• Width External (inches): 1 31/32 (Top) & 2 9/32 (Bottom)
• Width Internal (inches): 63/64 (Top) & 1 7/64 (Bottom)

Compatibility Information

This hydraulic levelling box is suitable for a variety of models:

• Case IH / International Harvester: JX1060V, JX1070N, JX1070V, JX1075N, JX1075V, JX1095N, JX1095V, QUANTUM 100N, QUANTUM 100V, QUANTUM 105N, QUANTUM 105V, QUANTUM 110N, QUANTUM 110V, QUANTUM 65N, QUANTUM 65V, QUANTUM 75N, QUANTUM 75V, QUANTUM 80N, QUANTUM 80V, QUANTUM 85N, QUANTUM 85V, QUANTUM 90N, QUANTUM 90V, QUANTUM 95N, QUANTUM 95V
• Ford / New Holland: T4.100N, T4.100V, T4.105N, T4.105V, T4.110N, T4.110V, T4.65V, T4.75N, T4.75V, T4.80N, T4.80V, T4.85N, T4.85V, T4.90N, T4.90V, T4.95N, T4.95V, T4020V, T4030N, T4030V, T4040N, T4040V, T4050N, T4050V, T4060N, T4060V, TN55V, TN55VA, TN60VA, TN65N, TN65V, TN70NA, TN70VA, TN75N, TN75NA, TN75V, TN75VA, TN95NA, TN95VA

Manufacturer Information

Compatible with the following OEM part numbers:

• Ford / New Holland: 5193421, 5193433, 5186137

Upgrade your equipment with the reliable and efficient Hydraulic Levelling Box from Sparex, designed to meet the demands of modern farming.
