Hydraulic Levelling Box - Sparex Part No. S.113927

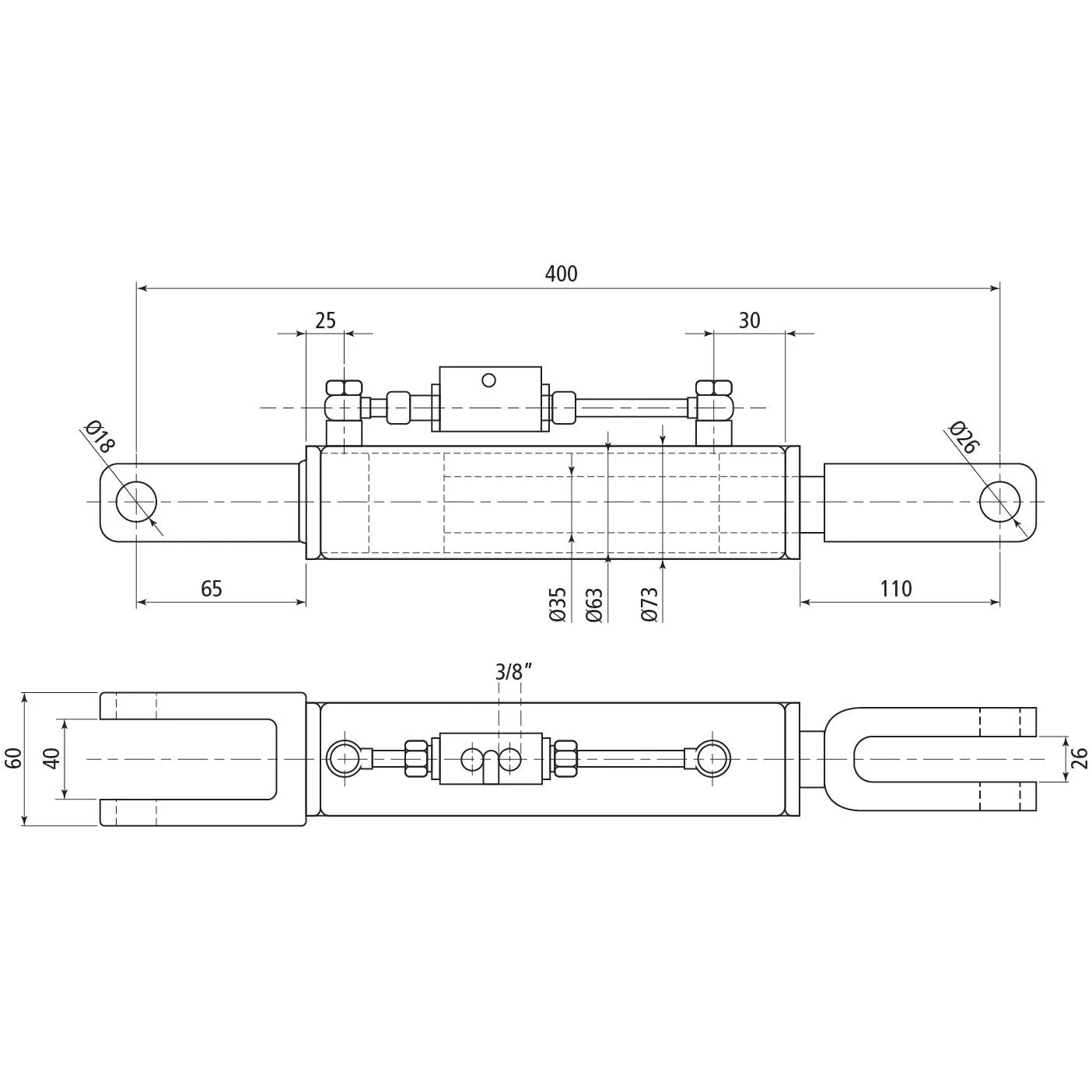

Enhance your agricultural machinery with the Hydraulic Levelling Box from Sparex. Designed for optimal performance, this hydraulic lift features a minimum length of 400mm and a maximum length of 530mm. The internal widths measure 40mm at the top and 26mm at the bottom, while the external widths are 60mm at the top and 52mm at the bottom.

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore: 63mm
• End Fittings A: Fork Hole Ø 18mm
• End Fittings B: Fork Hole Ø 26mm
• Maximum Length: 530mm
• Minimum Length: 400mm
• Related Products: 33137, 33144
• Rod Diameter: 35mm

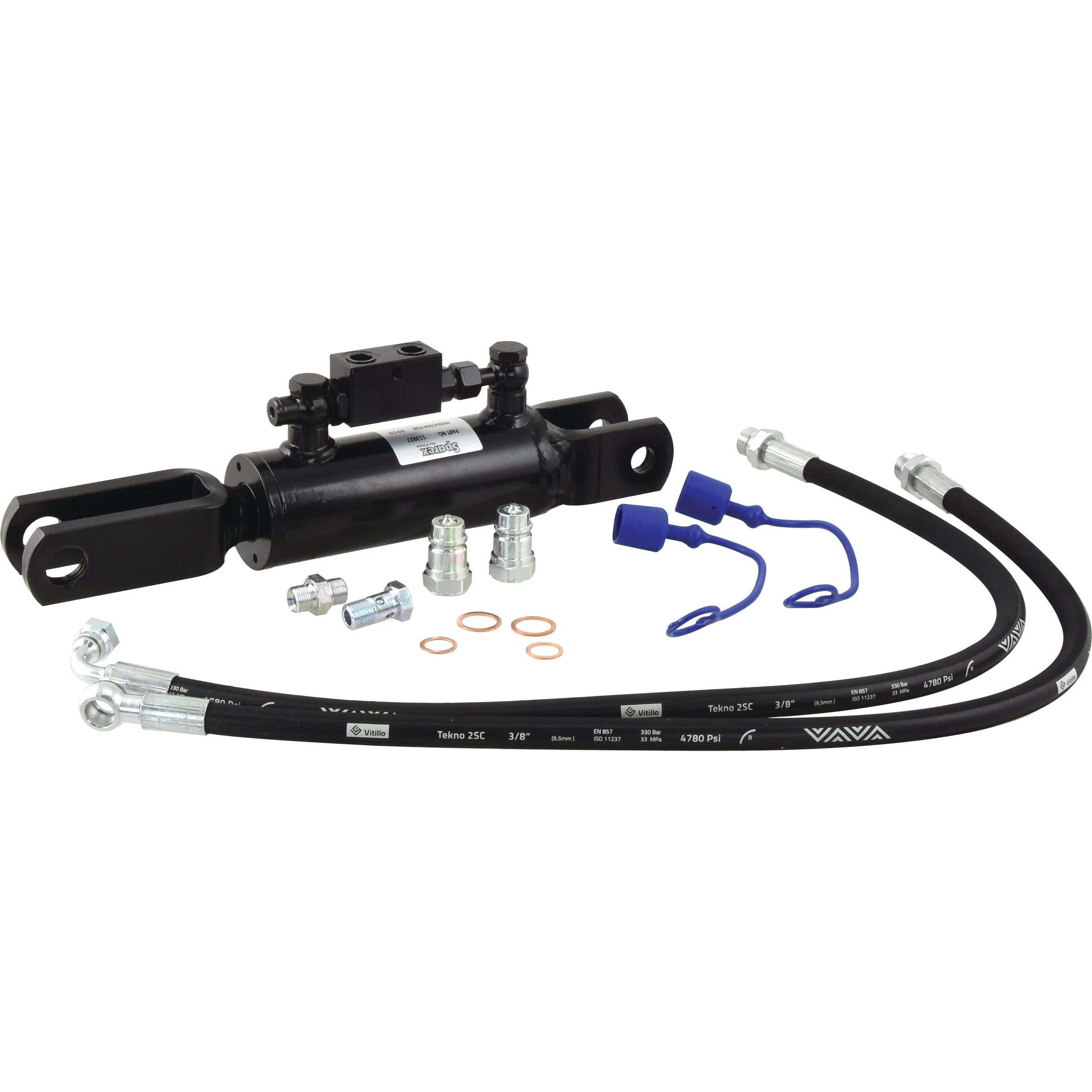

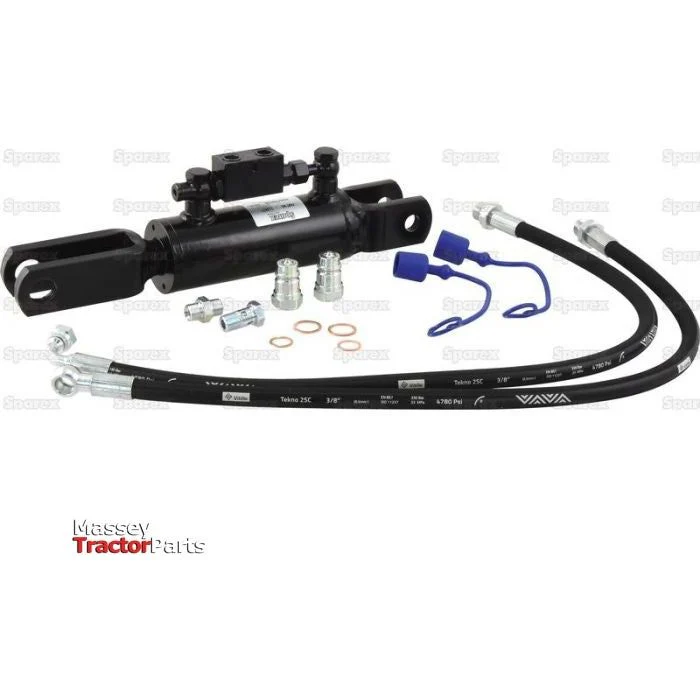

• Supplied With: Hoses
• Tariff Code: 8412212090
• Width External: 60mm Top & 52mm Bottom
• Width Internal: 40mm Top & 26mm Bottom

Compatibility Information

This hydraulic levelling box is suitable for Ford / New Holland models: T3.50F, T3.55F, T3.60F, T3.65F, T3.70F, T3.75F, and T3.80F.

OEM Fitment Information

Compatible with the following OEM part numbers: Ford / New Holland 47562250, 47443648, 47474751, 47474750.
