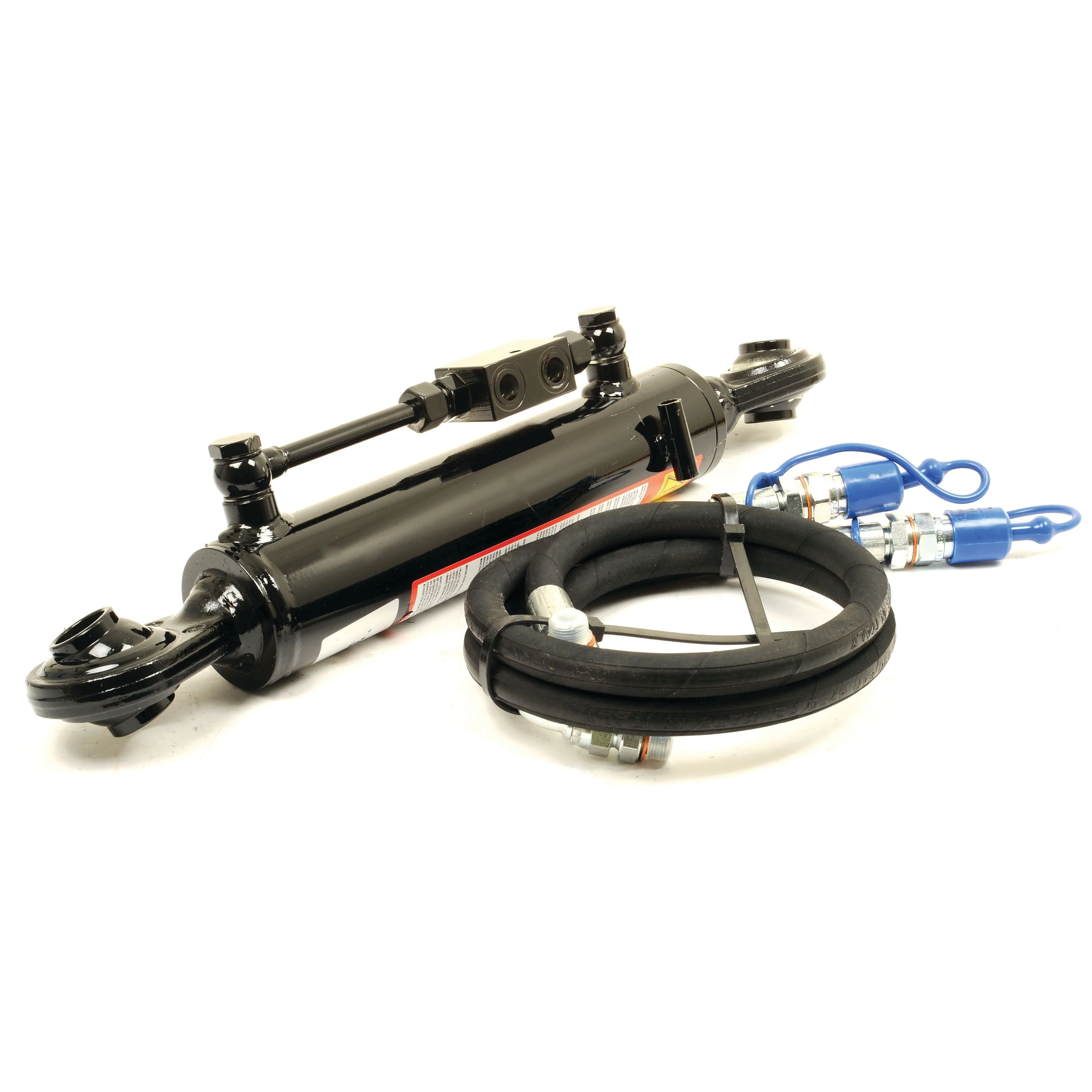

Hydraulic Top Link (Cat.1/2) Ball and Ball, Cylinder Bore: 63mm | Sparex Part No. S.331005

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 430mm and a maximum length of 590mm. It comes complete with a Hose Set for easy installation and use.

Product Specifications

• A (mm): 100
• Alternative to: 331000
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 1
• Category: 1/2
• Check Valve Position: Top
• Cylinder Bore (mm): 63
• Implement End: Ball
• Lift kgs @180 bar: 3960
• Maximum Length (mm): 590
• Minimum Length (mm): 430
• Related products: 32253, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Ø (mm): 35
• Suitable for Tractors up to HP/Kw: 100hp (75kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust kgs @180 (bar): 5730
• Tractor End: Ball

Suitable For Information

This hydraulic top link is compatible with:

• Fiat 470
• Ford / New Holland BOOMER 3040, BOOMER 3045, BOOMER 3050

Manufacturer Information

Part Number: Ford / New Holland 87549637
