Hydraulic Levelling Box - Sparex Part No. S.113944

Enhance your agricultural machinery with the Hydraulic Levelling Box from Sparex. Designed for durability and efficiency, this hydraulic lift is perfect for various applications, ensuring optimal performance in the field.

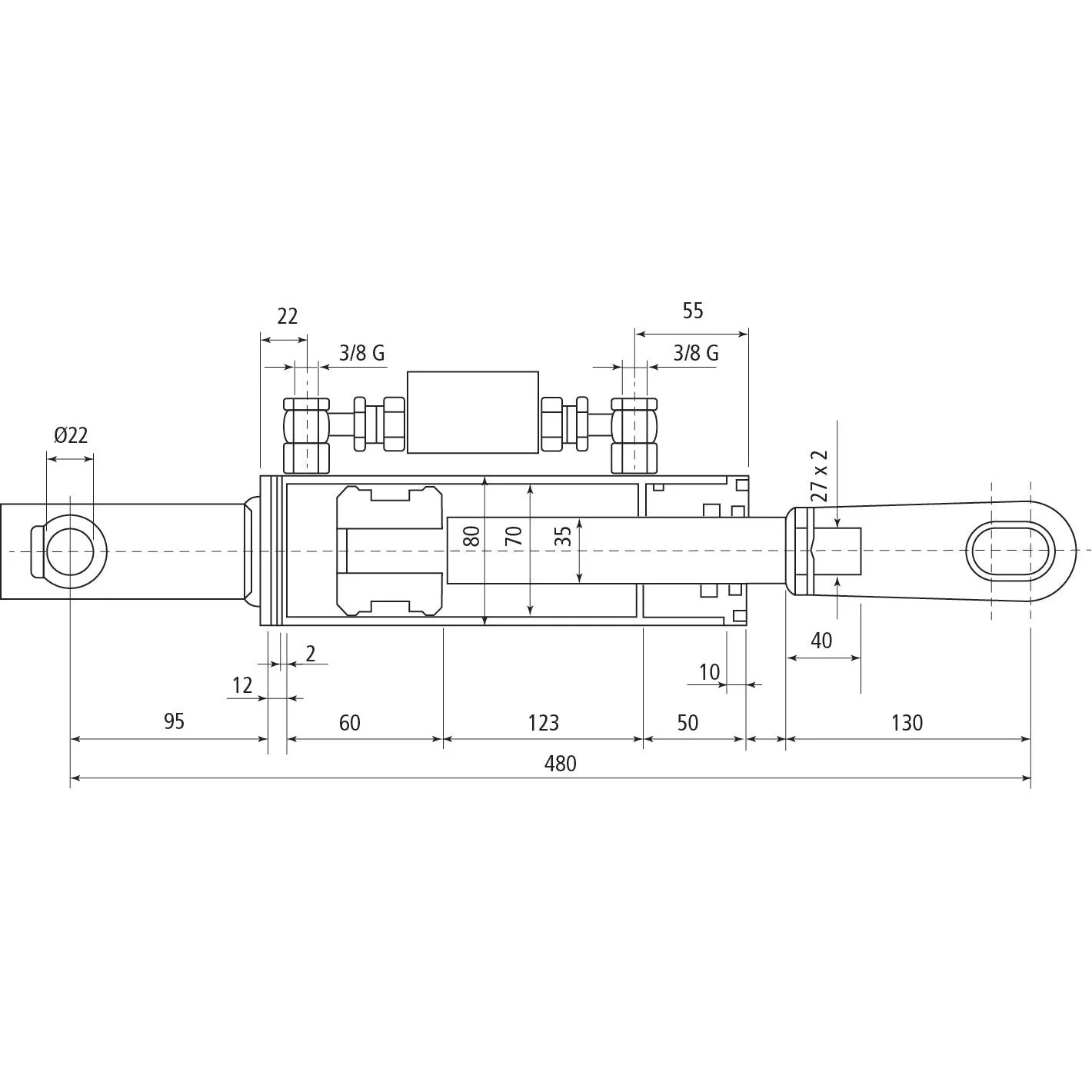

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore: 70 mm
• End Fittings A: Fork Hole Ø 22 mm
• End Fittings B: Fork Hole Ø 23 x 50 mm
• Maximum Length: 603 mm
• Minimum Length: 480 mm
• Rod Diameter: 35 mm
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External: 75 mm (Top) & 59 mm (Bottom)
• Width Internal: 37 mm (Top) & 28 mm (Bottom)

Compatibility Information

This hydraulic levelling box is suitable for:

• Case IH / International Harvester:
  • QUANTUM 100CL
  • QUANTUM 100F
  • QUANTUM 105F
  • QUANTUM 110CL
  • QUANTUM 110F
  • QUANTUM 75F
  • QUANTUM 80CL
  • QUANTUM 80F
  • QUANTUM 85F
  • QUANTUM 90CL
  • QUANTUM 90F
  • QUANTUM 95C
  • QUANTUM 95F
• Ford / New Holland:
  • T4.100F
  • T4.105F
  • T4.110F
  • T4.115F
  • T4.75F
  • T4.80F
  • T4.85F
  • T4.90F
  • T4.95F
  • T4030F
  • T4040F
  • T4050F
  • T4060F
  • TN65F
  • TN70F
  • TN75F
  • TN80F
  • TN90F
  • TN95F

Manufacturer Information

Compatible with the following OEM part numbers:

• Ford / New Holland: 47123246, 84346744, 84401549, 5194832

Upgrade your machinery with the reliable and efficient Hydraulic Levelling Box from Sparex, ensuring you have the right tools for the job.
