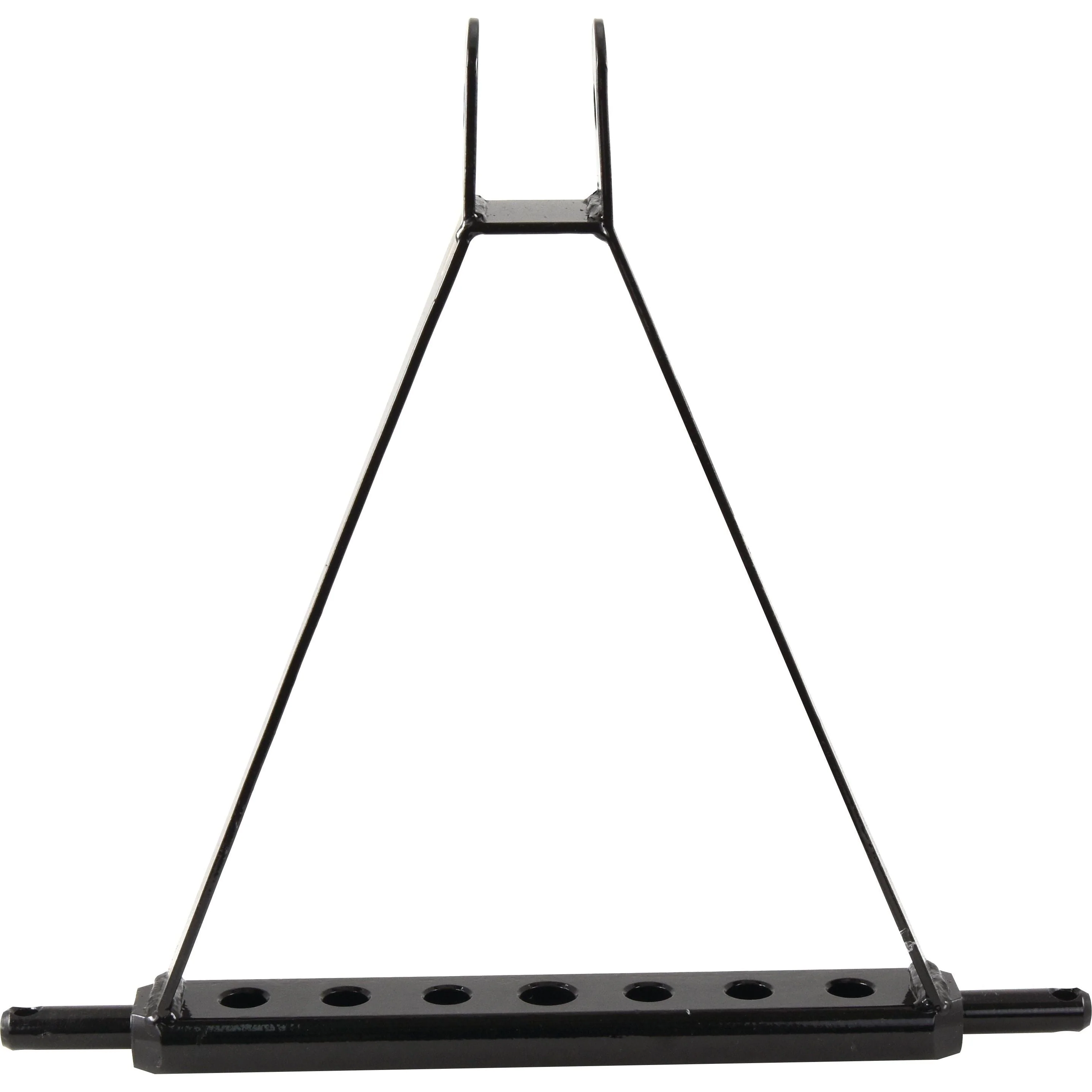

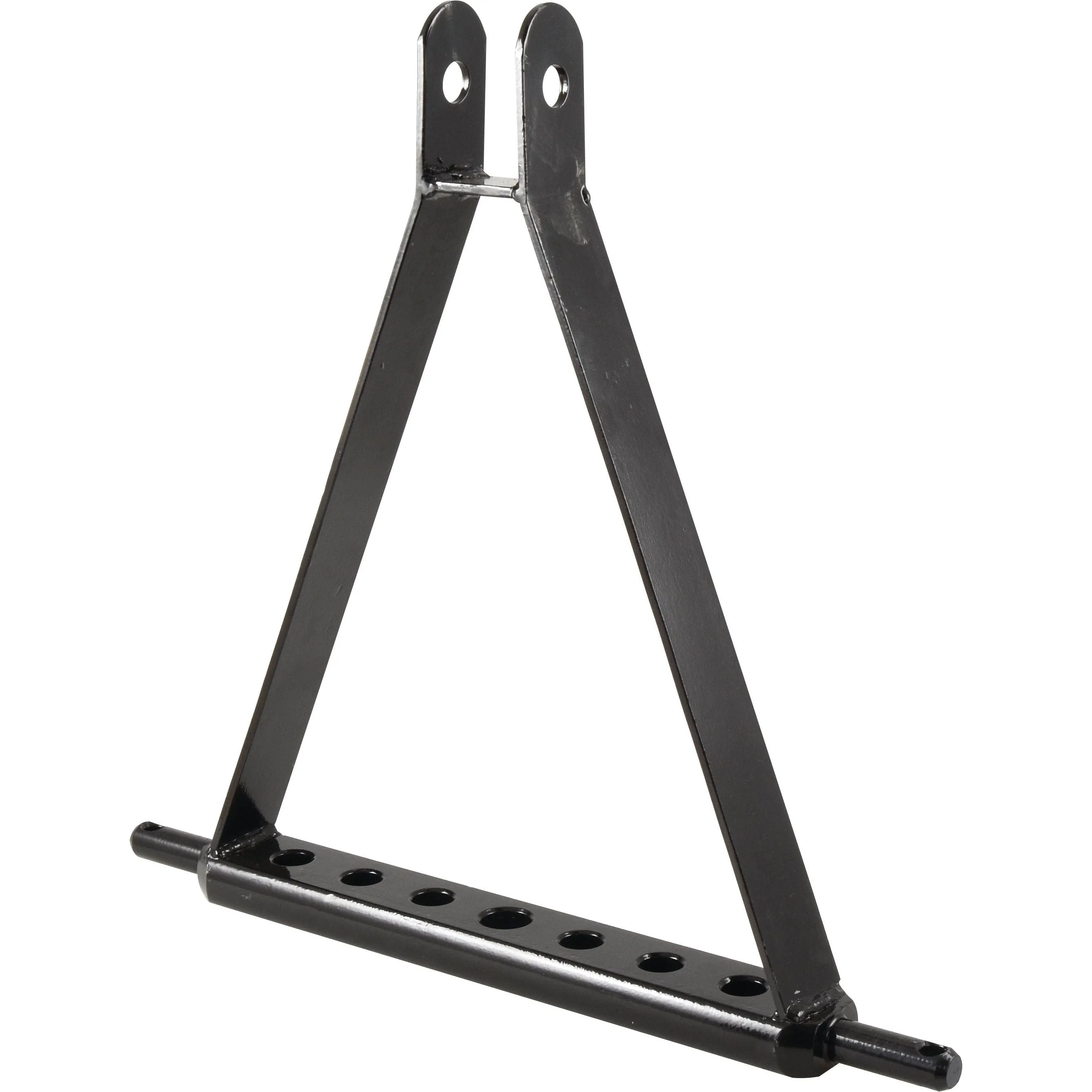

Drawbar Hitch System (Cat. 1) - Sparex Part No. S.144789

Introducing the Drawbar Hitch System (Cat. 1) by Sparex, designed for durability and efficiency. This hitch system features a pin diameter of 22mm and accommodates hole diameters of 21mm and 26mm. With a hole center distance of 50mm and an overall height of 507mm, this hitch is perfect for various applications.

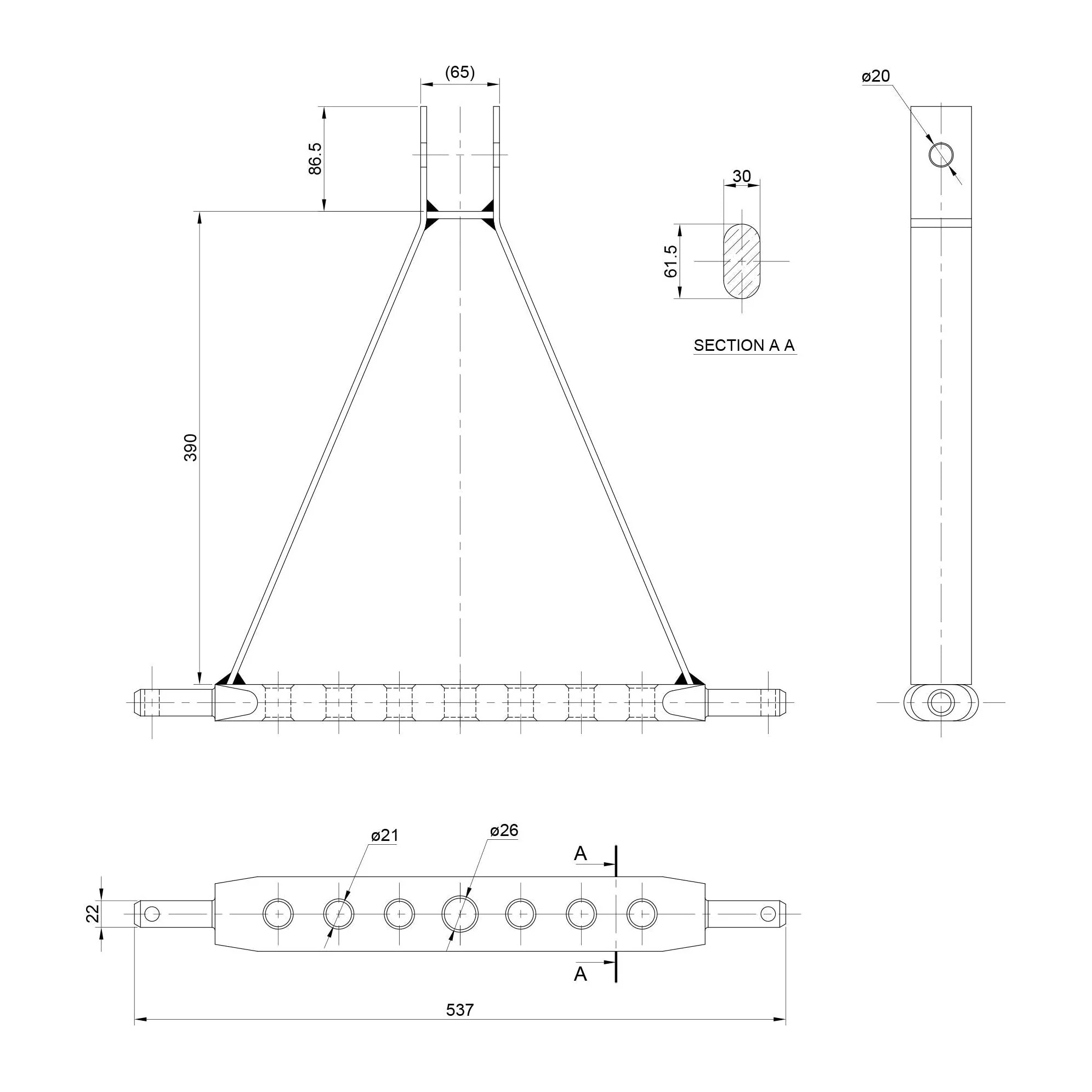

Product Specifications

• A (mm): 30
• B (mm): 61.5
• Brand: Sparex
• C (mm): 508
• Category: 1
• Hole Centres (mm): 50
• Hole Centres (inches): 1 31/32
• Hole Ø (inches): 53/64 & 1 1/32
• Hole Ø (mm): 21 & 26
• Linch Pin Ø (mm): 12
• Number of Holes: 7
• Overall Height (inches): 19 61/64
• Overall Height (mm): 507
• Overall Length (inches): 20
• Overall Length (mm): 508
• Pin Ø (inches): 7/8
• Pin Ø (mm): 22
• Related Products: 3342, 39, 73
• Section (mm): 30x61.5
• Section (inches): 1 3/16x2 27/64
• Tariff Code: 7319909000
• Top Pin Diameter (mm): 19
• Top Pin Ø (inches): 3/4
• Working Length (inches): 2 1/16
• Working Length (mm): 52

Suitable For Information

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.
