Drawbar Hitch System (Cat. 1) - Sparex Part No. S.119467

Introducing the Drawbar Hitch System designed for off-road use, featuring a robust construction and precise specifications to meet your towing needs. With a pin diameter of 22mm and a hole diameter of 23mm, this hitch system ensures a secure connection for your equipment. The hole centers are spaced at 215mm, providing compatibility with various setups.

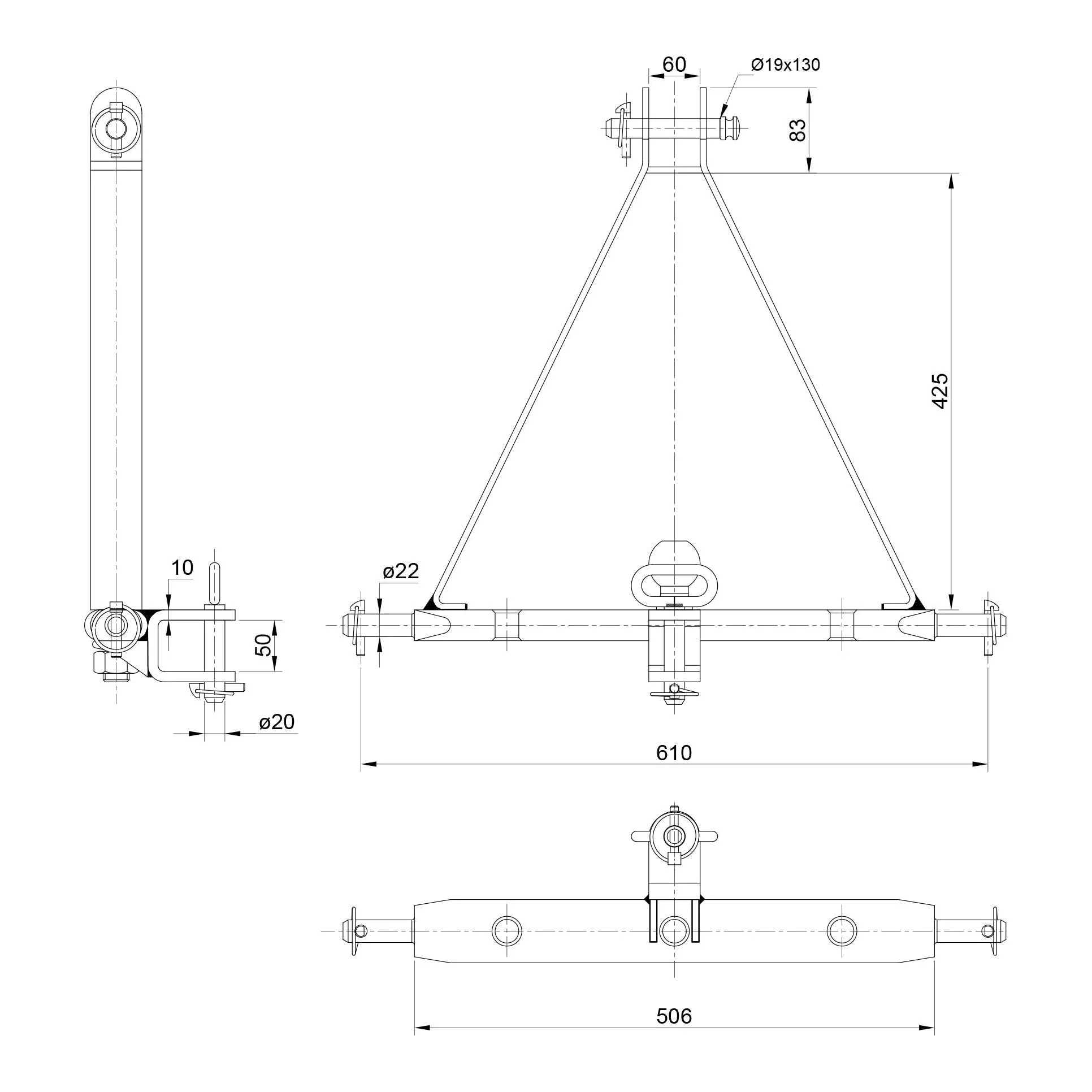

Product Specifications

• A (mm): 30
• B (mm): 61.5
• Ball Size (mm): 50
• Brand: Sparex
• C (mm): 610
• Category: 1
• D (mm): 52
• E (mm): 90
• F (mm): 63
• G (mm): 22
• Hole Centres (mm): 215
• Hole Centres (ins): 8 15/32
• Hole Ø (ins): 29/32
• Hole Ø (mm): 23
• Linch Pin Ø (mm): 10
• Maximum Towing Load: 2.5T
• Notes: This item is for off-road use only
• Number of Holes: 3
• Overall Height (ins): 21 3/16
• Overall Height (mm): 538
• Overall Length (ins): 24 1/64
• Overall Length (mm): 610
• Pin Ø (ins): 7/8
• Pin Ø (mm): 22
• Related Products: 167137
• Section (mm): 30x61.5
• Section (ins): 1 3/16x2 27/64
• Tariff Code: 7319909000
• Top Pin Diameter (mm): 19
• Top Pin Ø (ins): 3/4
• Working Length (ins): 2 1/16
• Working Length (mm): 52

Suitable For Information

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.
