Drawbar Hitch System (Cat. 2) - Sparex Part No. S.144791

Introducing the Drawbar Hitch System from Sparex, designed for optimal performance and durability. This robust hitch system features a pin diameter of 28mm and a hole diameter of 26mm, ensuring a secure fit for your agricultural needs. With a total height of 542mm and an overall length of 770mm, this hitch system is engineered for efficiency and reliability.

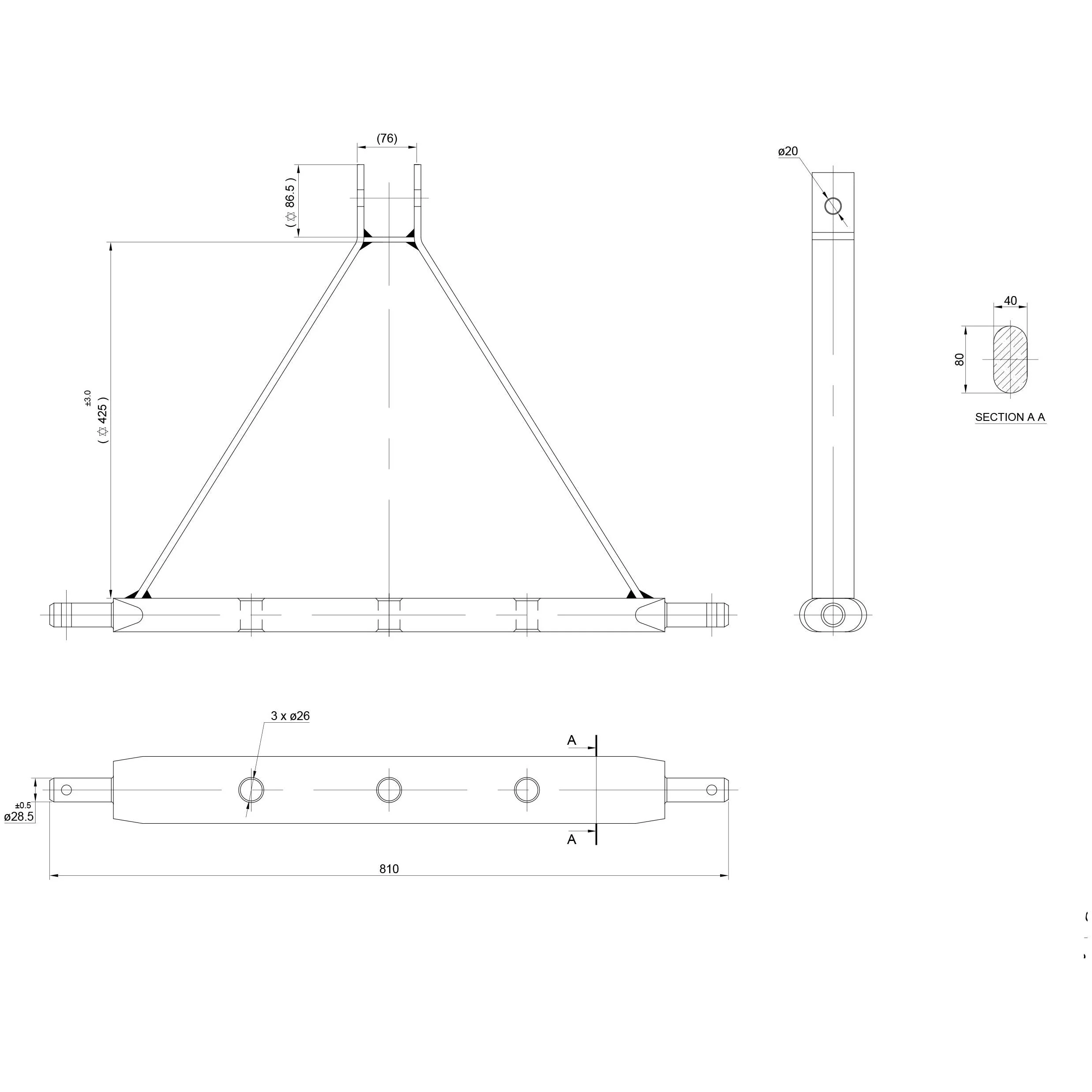

Product Specifications

• A (mm): 40
• B (mm): 80
• Brand: Sparex
• C (mm): 770
• Category: 2
• Hole Centres (mm): 165
• Hole Centres (ins): 6 1/2
• Hole Ø (ins): 1 1/32
• Hole Ø (mm): 26
• Linch Pin Ø (mm): 12
• Number of Holes: 3
• Overall Height (ins): 21 11/32
• Overall Height (mm): 542
• Overall Length (ins): 30 5/16
• Overall Length (mm): 770
• Pin Ø (ins): 1 1/8
• Pin Ø (mm): 28
• Related Products: 29230, 3342, 39
• Section (mm): 40x80
• Section (ins): 1 37/64 x 3 5/32
• Tariff Code: 7319909000
• Top Pin Diameter (mm): 19
• Top Pin Ø (ins): 3/4
• Working Length (ins): 2 13/64
• Working Length (mm): 56

Compatibility Information

This Drawbar Hitch System is not associated with any specific make or model, providing versatility for various applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring a broad range of compatibility.
