Drawbar Hitch System (Cat. 1) - Sparex Part No. S.144790

Enhance your agricultural equipment with the Drawbar Hitch System from Sparex. Designed for durability and efficiency, this hitch system features a pin diameter of 22mm and accommodates hole diameters of 21mm and 26mm. With a total height of 506mm and a length of 730mm, it is perfectly suited for Category 1 applications.

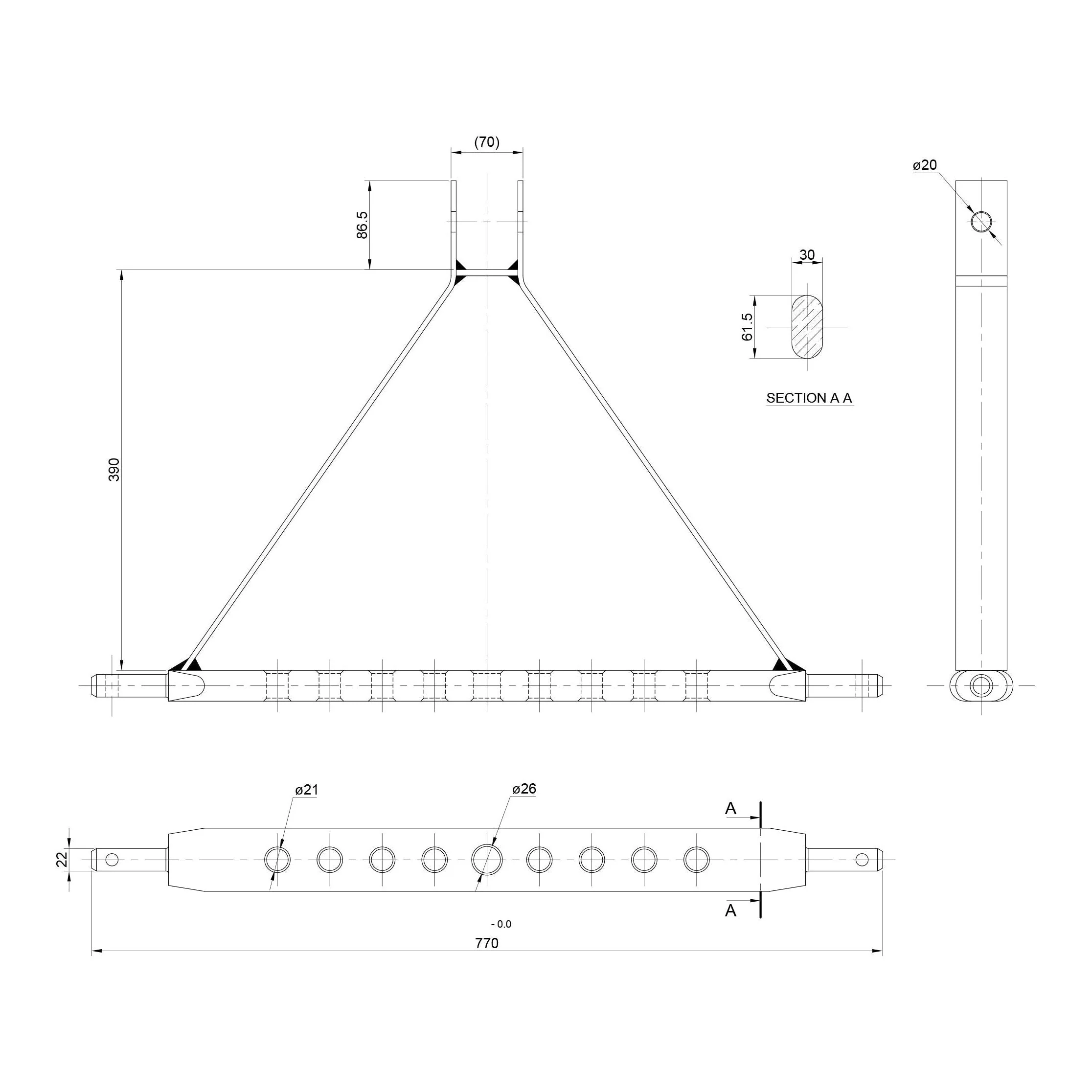

Product Specifications

• A (mm): 30
• B (mm): 61.5
• Brand: Sparex
• C (mm): 730
• Category: 1
• Hole Centres (mm): 51
• Hole Centres (in): 2
• Hole Ø (in): 53/64 & 1 1/32
• Hole Ø (mm): 21 & 26
• Linch Pin Ø (mm): 12
• Number of Holes: 9
• Overall Height (in): 19 59/64
• Overall Height (mm): 506
• Overall Length (in): 28 47/64
• Overall Length (mm): 730
• Pin Ø (in): 7/8
• Pin Ø (mm): 22
• Related Products: 2631, 3342, 39
• Section (mm): 30x61.5
• Section (in): 1 3/16x2 27/64
• Tariff Code: 7319909000
• Top Pin Diameter (mm): 19
• Top Pin Ø (in): 3/4
• Working Length (in): 2 11/64
• Working Length (mm): 55

Compatibility Information

This Drawbar Hitch System is not associated with any specific make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across different equipment.
