Drawbar Hitch System (Cat. 2) - Sparex Part No. S.119469

Introducing the Drawbar Hitch System designed for off-road use, featuring a robust construction and precise specifications to meet your towing needs. With a pin diameter of 28mm and a hole diameter of 28mm, this hitch system ensures a secure fit for your equipment. The hole centers are spaced at 64mm, providing versatility for various applications.

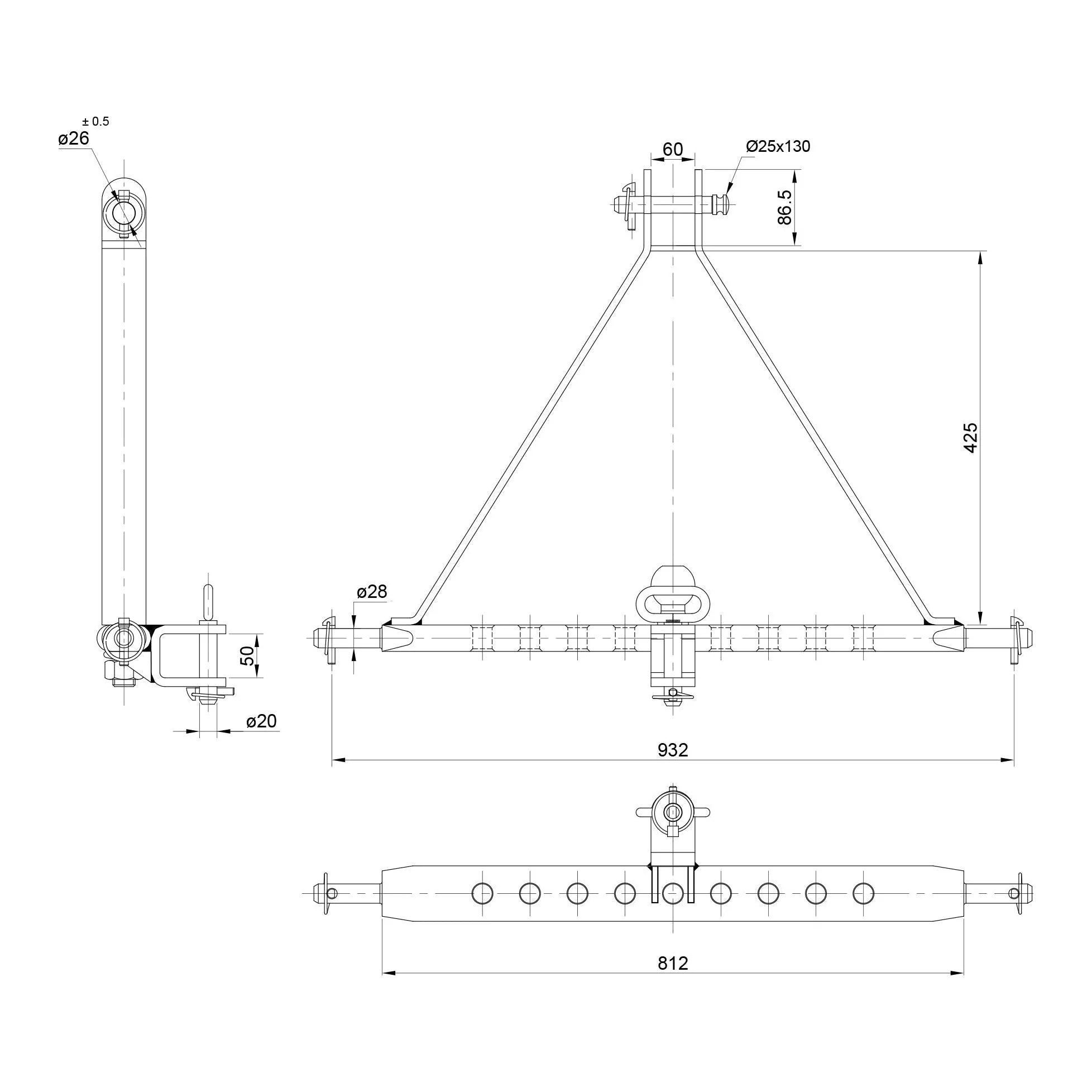

Product Specifications

• A (mm): 32
• Alternative to: 144792
• B (mm): 75
• Ball Size (mm): 50
• Brand: Sparex
• C (mm): 932
• Category: 2
• D (mm): 60
• E (mm): 150
• F (mm): 64
• G (mm): 28
• Hole centres (mm): 64
• Hole Centres (ins): 2 33/64
• Hole Ø (ins): 1 1/8
• Hole Ø (mm): 28
• Linch Pin Ø (mm): 10
• Maximum Towing Load: 3.5T
• Notes: This item is for off-road use only
• Number of holes: 9
• Overall height (ins): 21 3/8
• Overall height (mm): 543
• Overall length (ins): 36 11/16
• Overall length (mm): 932
• Pin Ø (ins): 1 1/8
• Pin Ø (mm): 28
• Related products: 32, 3341, 408, 420, 167139
• Section (mm): 32x75
• Section (ins): 1 17/64x2 61/64
• Tariff Code: 7319909000
• Top Pin Diameter (mm): 25
• Top pin Ø (ins): 1
• Working length (ins): 2 3/8
• Working length (mm): 60

Suitable For Information

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.
