Drawbar Hitch System (Cat. 1) - Sparex Part No. S.119468

Enhance your off-road capabilities with the Drawbar Hitch System from Sparex. Designed specifically for rugged terrain, this hitch system features a robust construction with a pin diameter of 22mm and a hole diameter of 22mm. The hitch boasts a maximum towing load of 3T, making it an essential tool for heavy-duty applications.

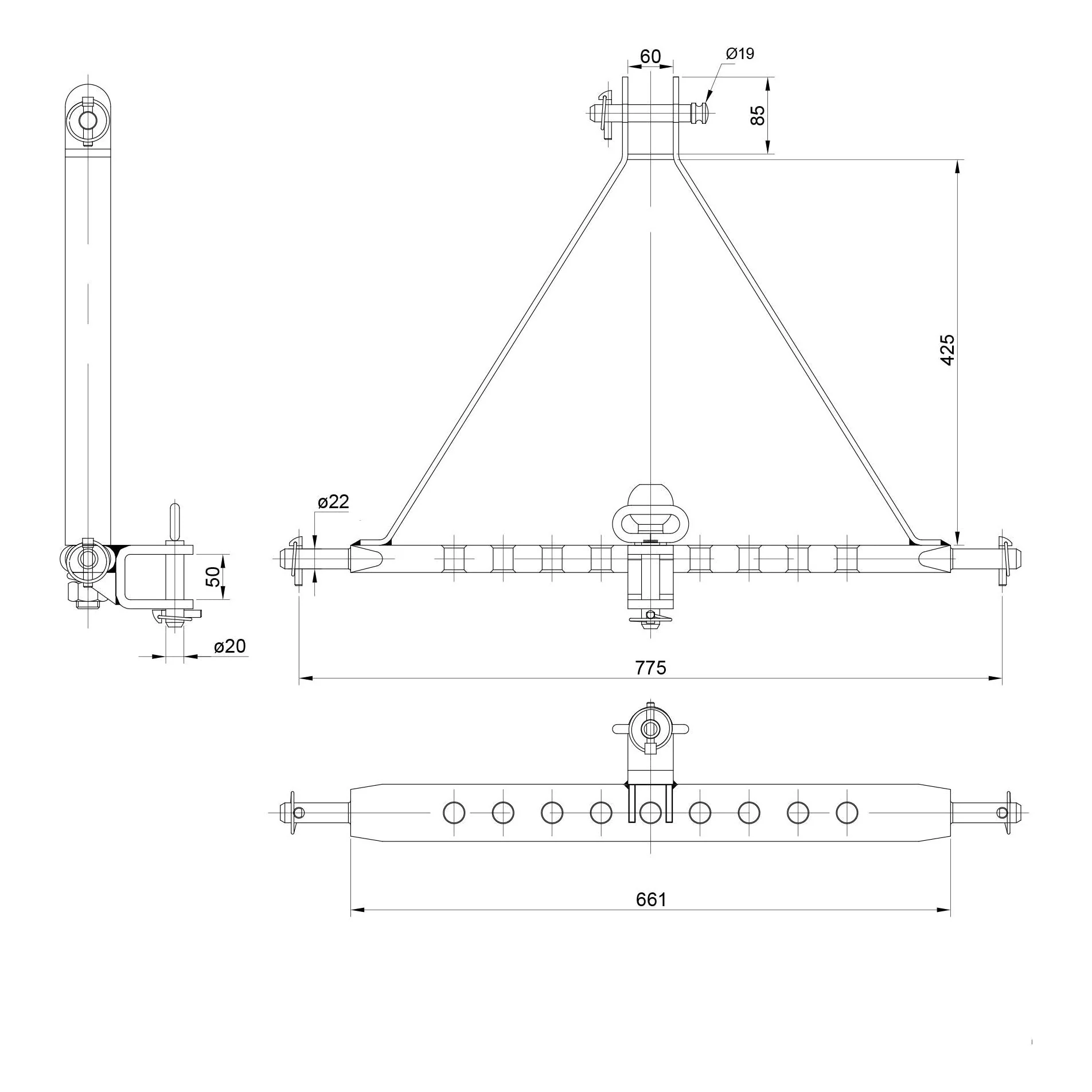

Product Specifications

• A (mm): 25
• B (mm): 63
• Ball Size (mm): 50
• Brand: Sparex
• C (mm): 775
• Category: 1
• D (mm): 57
• E (mm): 114
• F (mm): 54
• G (mm): 22
• Hole Centres (mm): 54
• Hole Centres (in): 2 1/8
• Hole Ø (in): 55/64
• Hole Ø (mm): 22
• Linch Pin Ø (mm): 10
• Maximum Towing Load: 3T
• Notes: This item is for off-road use only
• Number of Holes: 9
• Overall Height (in): 21 1/16
• Overall Height (mm): 535
• Overall Length (in): 30 33/64
• Overall Length (mm): 775
• Pin Ø (in): 7/8
• Pin Ø (mm): 22
• Related Products: 167137
• Section (mm): 25x63
• Section (in): 1x2 1/2
• Tariff Code: 7319909000
• Top Pin Diameter (mm): 19
• Top Pin Ø (in): 3/4
• Working Length (in): 2 1/4
• Working Length (mm): 57

Suitable For Information

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.
