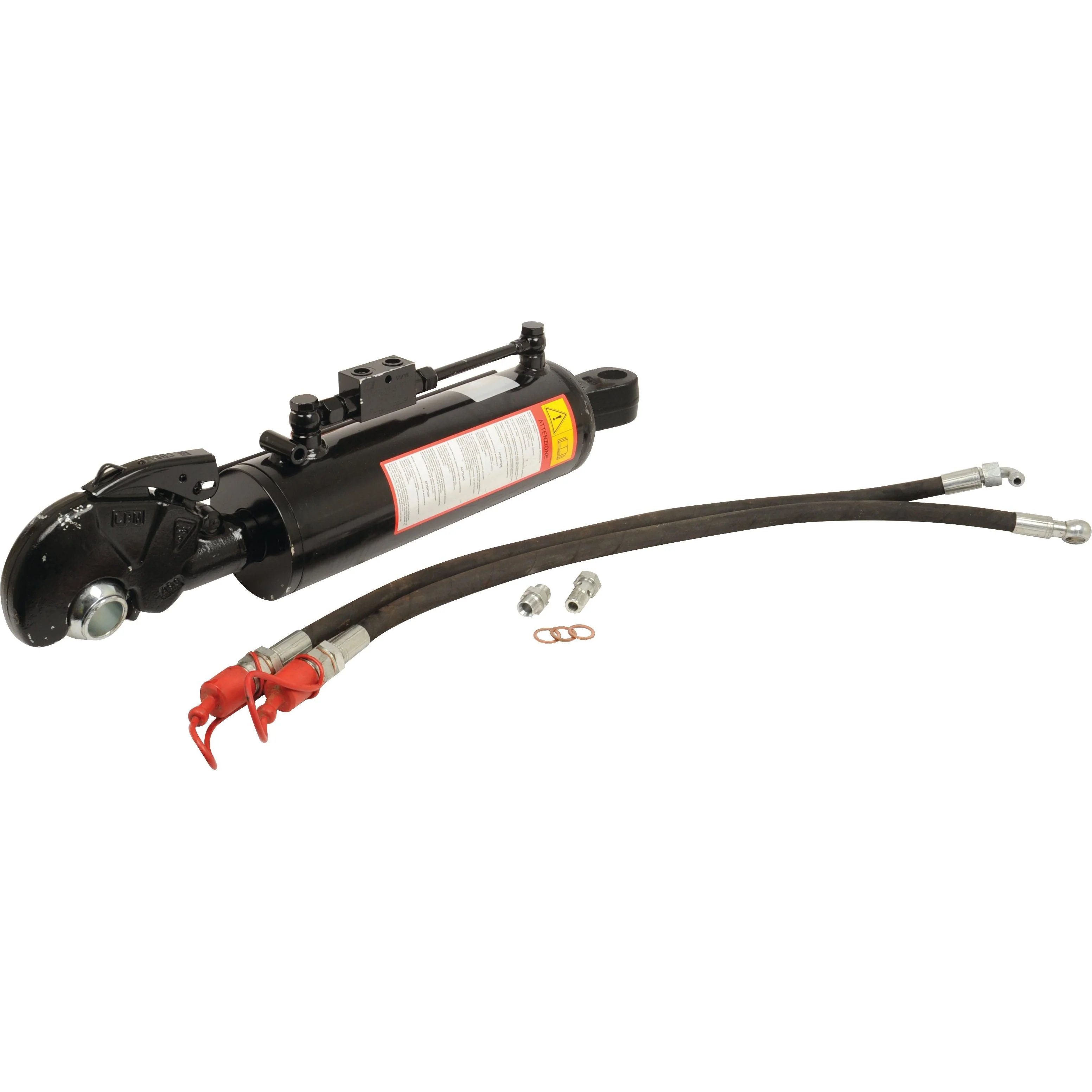

Hydraulic Top Link (Cat.-/3) with Q.R CBM Hook - Sparex Part No. S.32930

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this hydraulic linkage features a minimum length of 550mm and a maximum length of 735mm. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin) for easy installation and operation.

Product Specifications

• Alternative to: 399811, 399812, 399813, 399814
• Brand: Sparex
• Category Implement End: 3
• Check Valve Position: Top
• Cylinder Bore: 80mm
• Implement End: Q.R CBM Hook
• Lift Capacity @ 180 bar: 6930 kg
• Maximum Length: 735mm
• Minimum Length: 550mm
• Rod Diameter: 40mm
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label without knuckle & pin
• Tariff Code: 8412212090
• Thrust @ 180 bar: 9240 kg

Compatibility Information

This hydraulic top link is versatile and not associated with any specific make or model, making it an ideal choice for various agricultural applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across different machinery.
