Hydraulic Top Link (Cat.3/3) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust top link features a cylinder bore of 80mm and offers a minimum length of 610mm and a maximum length of 795mm. It is supplied with a comprehensive hose set, chain & ball, and a marker label with knuckle & pin for easy installation and use.

Product Specifications

• A (mm): 152
• Alternative to: 32930
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 3
• Category: 3/3
• Check Valve Position: Top
• Cylinder Bore (mm): 80

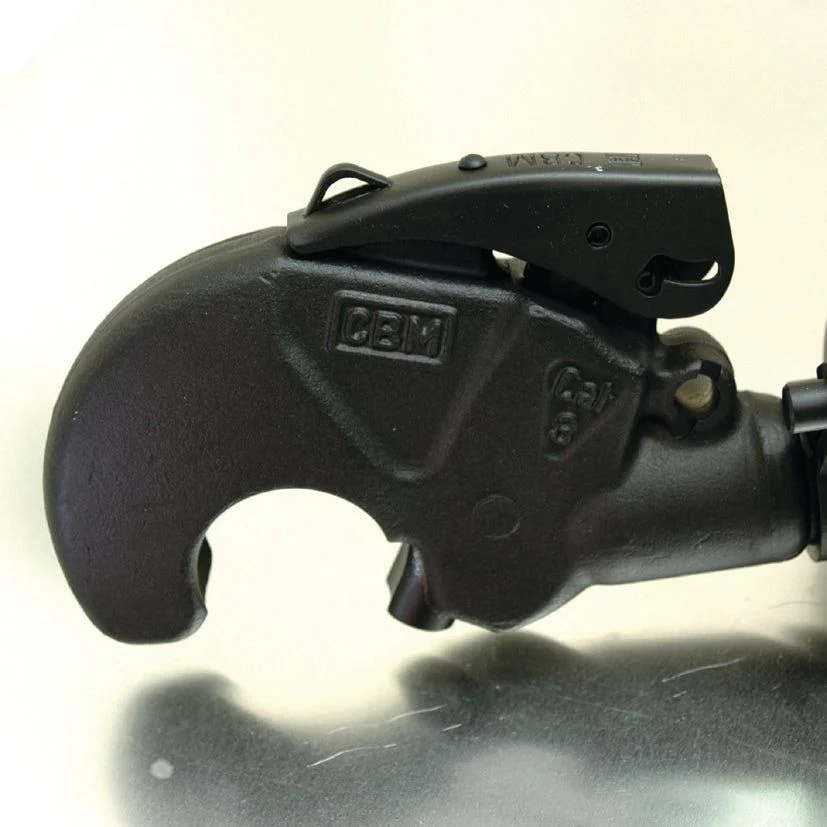

• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 6930
• Maximum Length (mm): 795
• Minimum Length (mm): 610
• Related Products: 10288, 10292, 32255, 33010, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240
• Tractor End Fixing: S.10288
• Tractor End: Knuckle

Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
