Hydraulic Top Link (Cat.-/3) with Q.R. Hook - Sparex Part No. S.56806

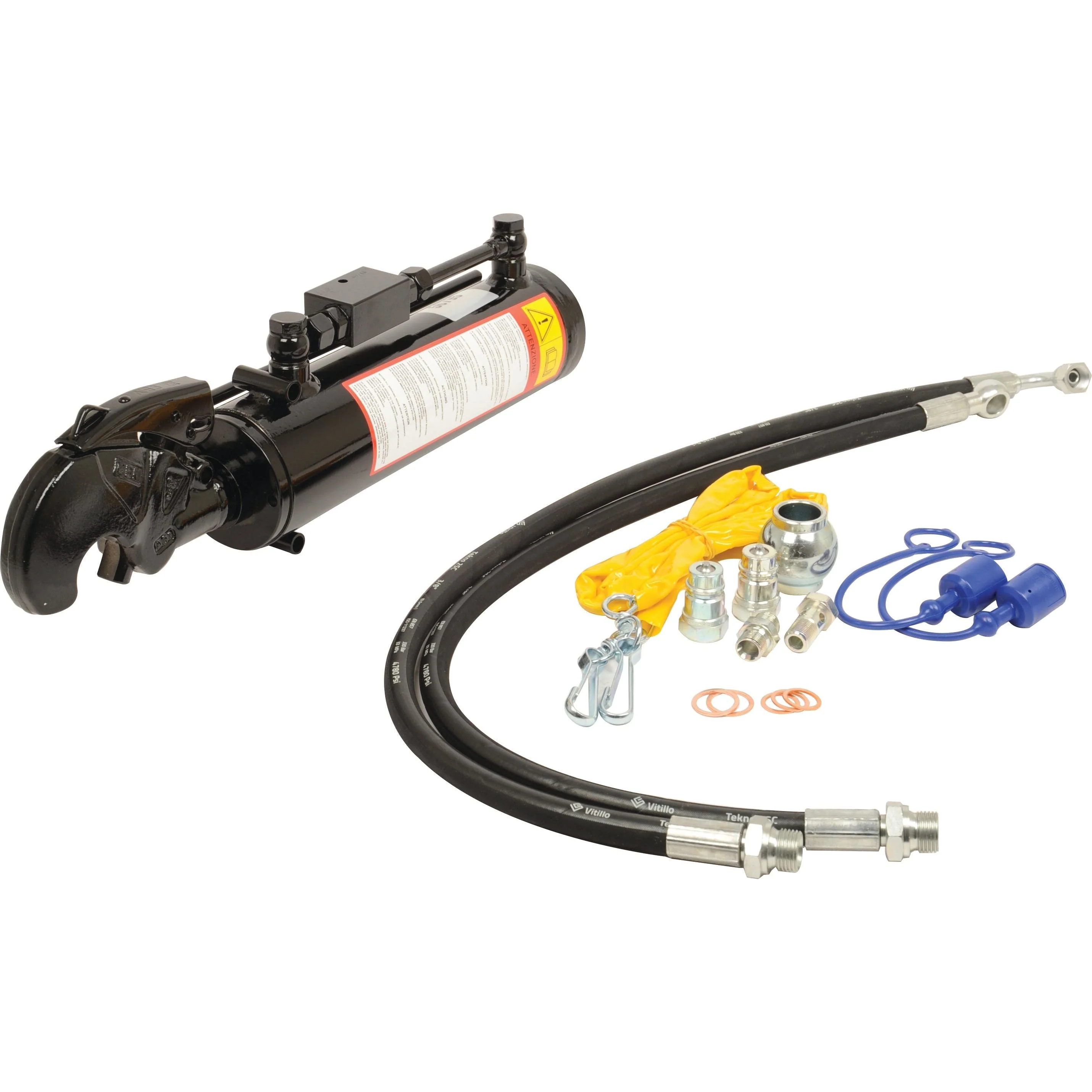

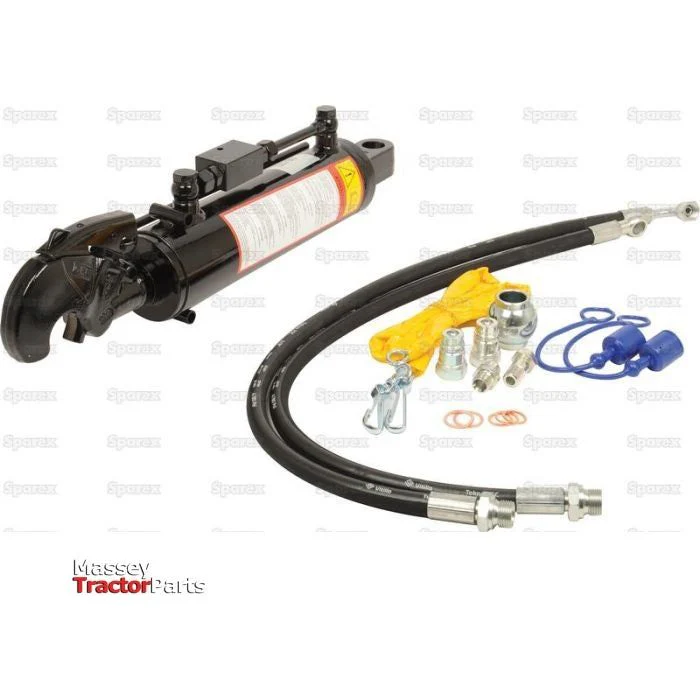

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 690mm and a maximum length of 911mm. It comes complete with a hose set, chain & ball, and a marker label for easy installation and operation.

Product Specifications

• Brand: Sparex
• Category Implement End: 3
• Check Valve Position: Top
• Cylinder Bore: 105mm
• Implement End: Q.R CBM Hook
• Lift Capacity @ 180 bar: 11520 kg
• Maximum Length: 911mm
• Minimum Length: 690mm
• Rod Diameter: 45mm
• Suitable for Tractors up to: 250hp (184kW)
• Supplied with: Hose set, chain & ball, marker label
• Tariff Code: 8412212090
• Thrust @ 180 bar: 14440 kg
• Related Products: 10287, 10288, 10289, 10290, 10292, 32947, 32950, 32951, 32977, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 56818, 148196, 148197

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
