Hydraulic Top Link (Cat.-/2) with Q.R CBM Hook - Sparex Part No. S.56812

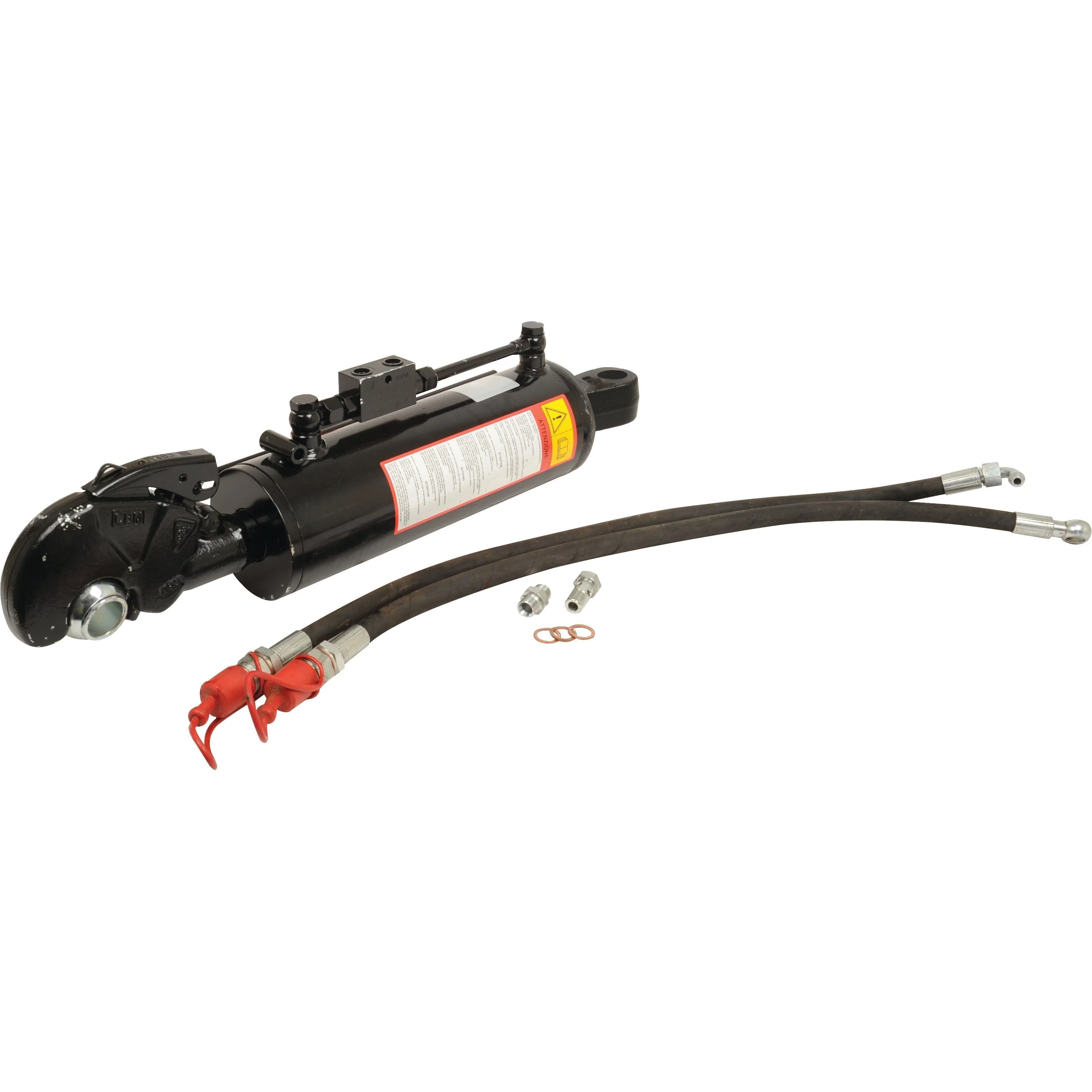

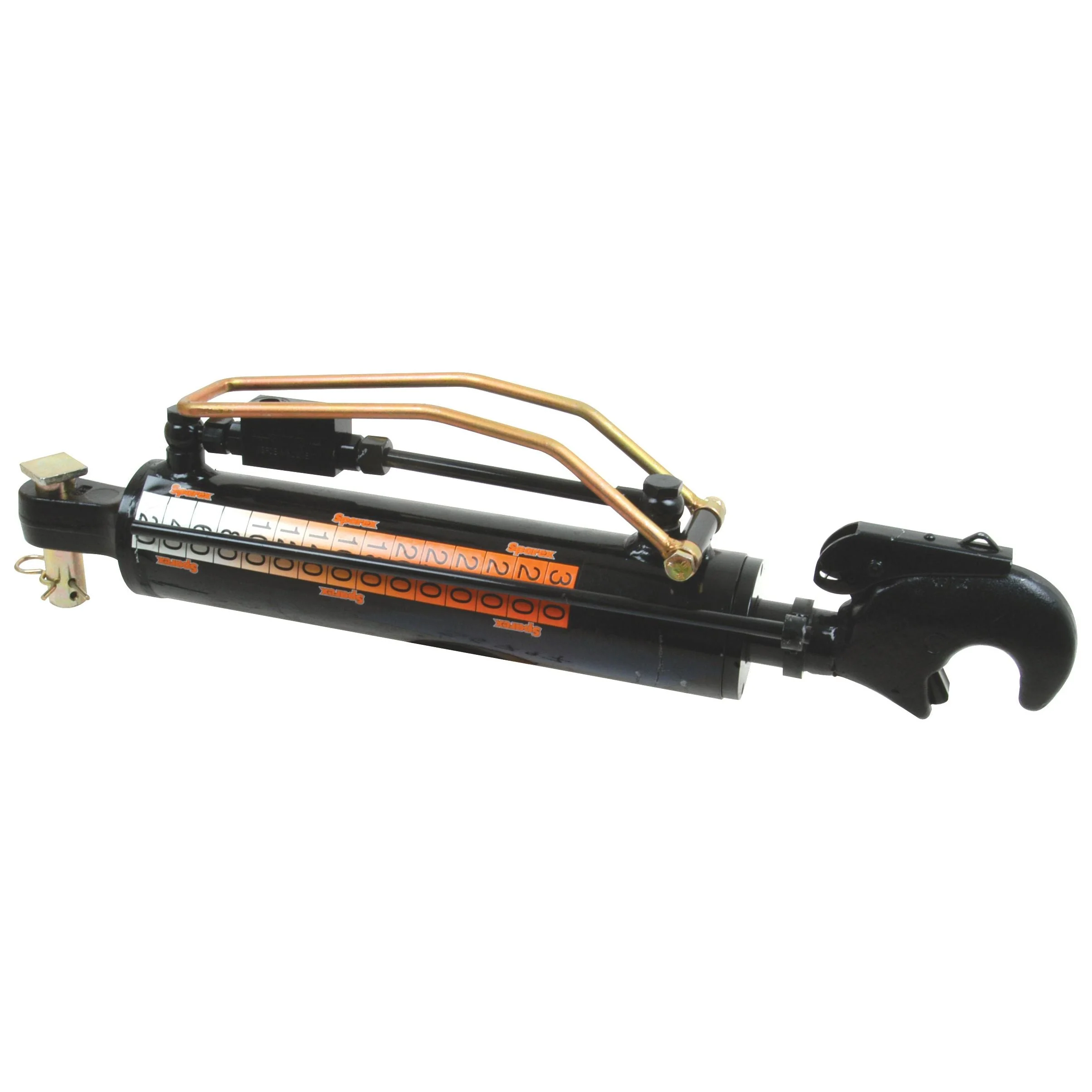

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this hydraulic linkage features a minimum length of 580mm and a maximum length of 825mm. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin) for easy installation and operation.

Product Specifications

• A (mm): 150
• Alternative to: 331501, 331502, 331503
• Brand: Sparex
• Category Implement End: 2
• Category: -/2
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 6930
• Loop Option: 40
• Maximum Length (mm): 825
• Minimum Length (mm): 580
• Ram Stroke (mm): 215
• Related Products: 10287, 10288, 10289, 10290, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56815, 56817, 148199
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label without knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
