Hydraulic Top Link (Cat.3/3) with Ball and Q.R CBM Hook - Sparex Part No. S.331346

Enhance your agricultural equipment with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 667mm and a maximum length of 923mm. It comes complete with a hose set, chain & ball, and a marker label equipped with a CBM Hook for easy installation and operation.

Product Specifications

• A (mm): 125
• Alternative to: 56805
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 3
• Category: 3/3
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 6930
• Maximum Length (mm): 923
• Minimum Length (mm): 667
• Related Products: 32255, 32951, 32977, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)

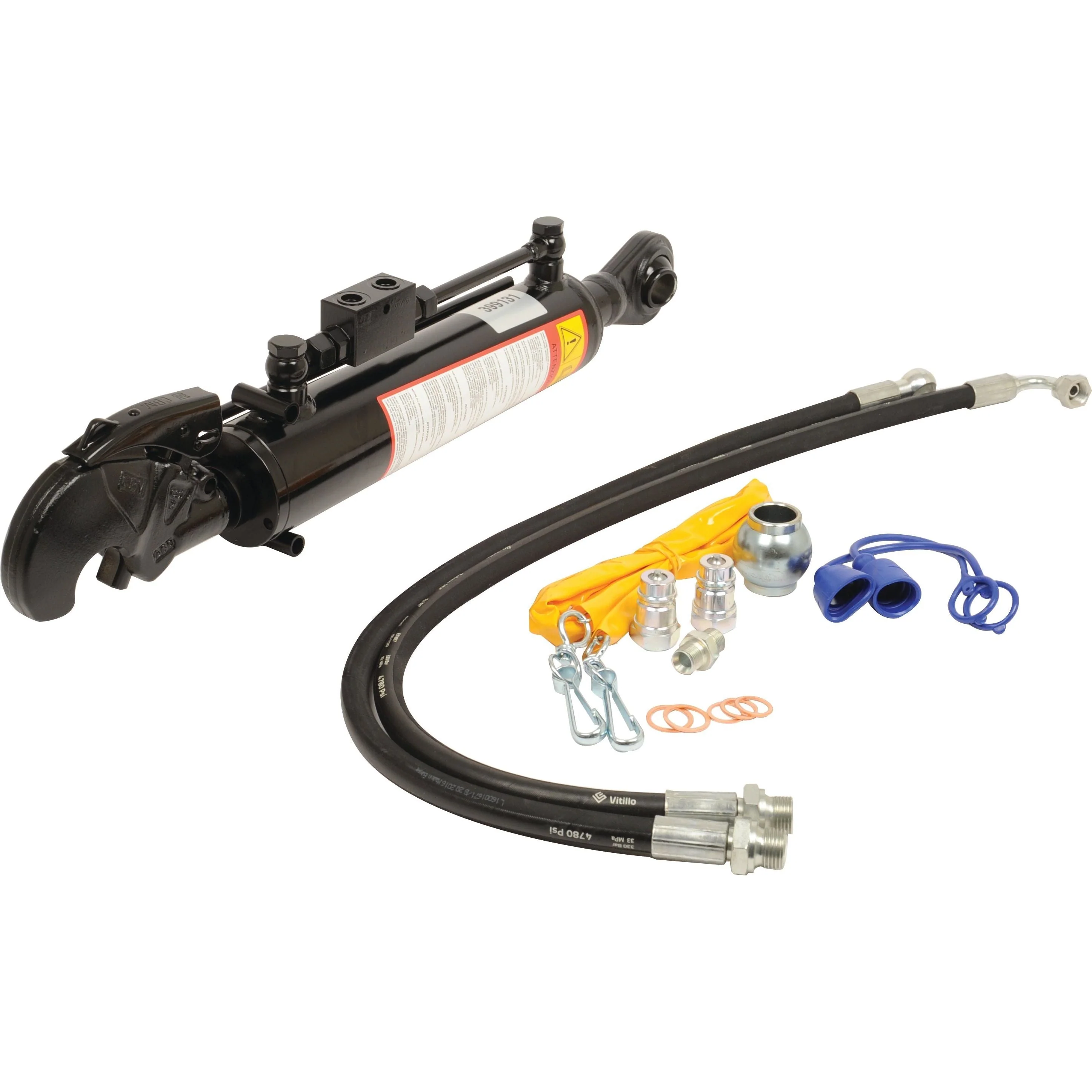

• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240
• Tractor End Fixing: S.32951
• Tractor End: Ball

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
