Hydraulic Top Link (Cat.28mm/3) - Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm

Enhance your agricultural equipment with the Hydraulic Top Link from Sparex. This versatile top link features a minimum length of 610mm and a maximum length of 795mm, making it suitable for a variety of applications. It comes complete with a hose set, chain & ball, and a marker label with knuckle & pin for easy installation and operation.

Product Specifications

• A (mm): 152
• Alternative to: 32930
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 28mm
• Category: 28mm/3
• Check Valve Position: Top
• Cylinder Bore (mm): 80

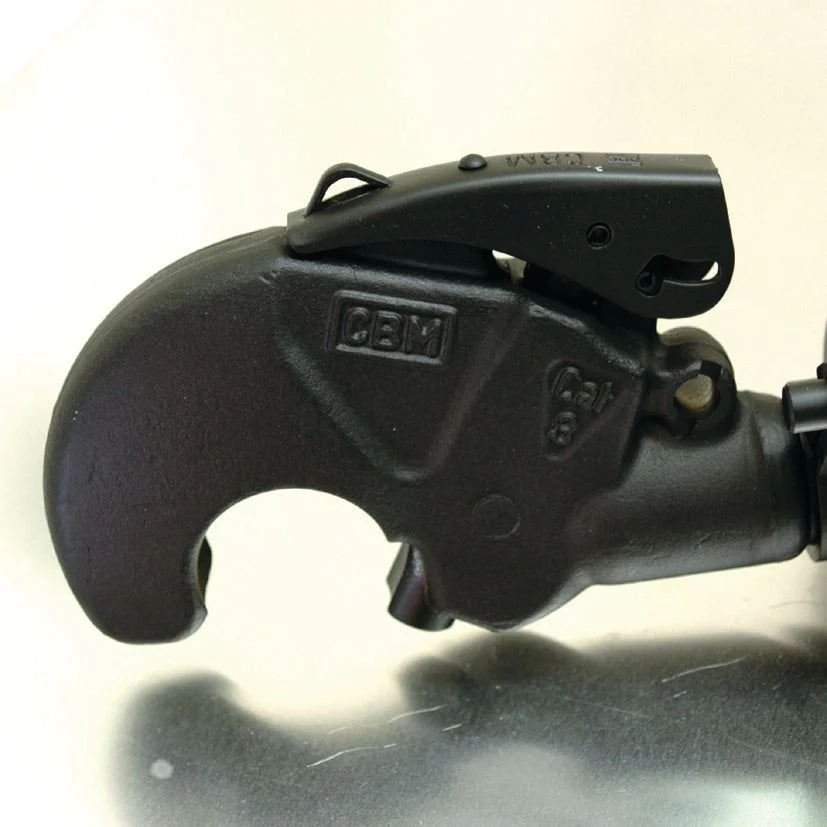

• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 6930
• Maximum Length (mm): 795
• Minimum Length (mm): 610
• Related Products: 10289, 10292, 32255, 33010, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240
• Tractor End Fixing: S.10289

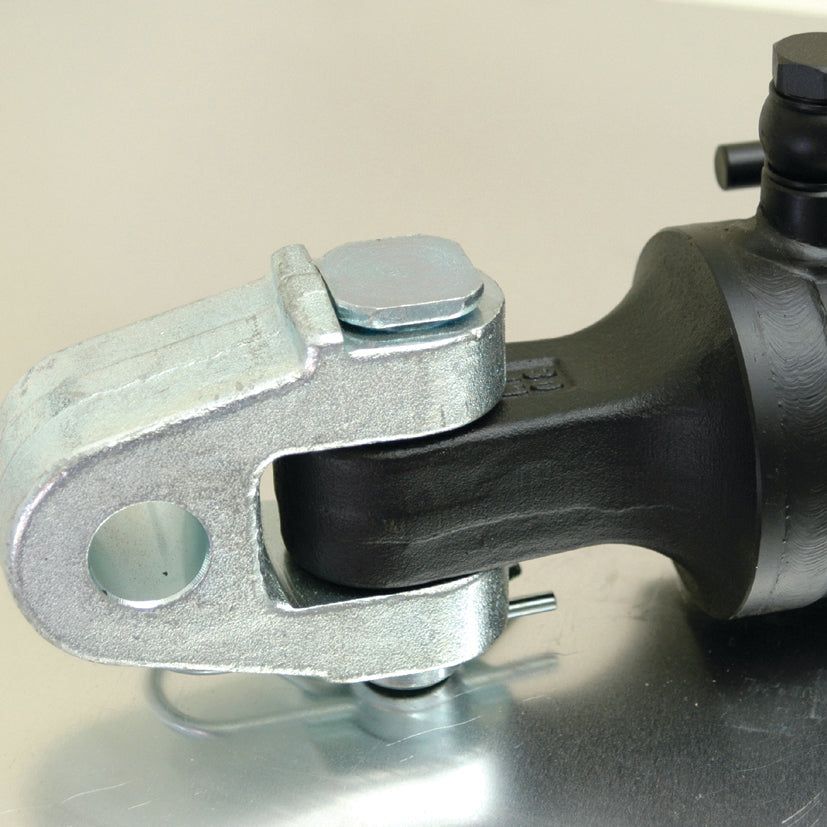

• Tractor End: Knuckle

Suitable For

This hydraulic top link is compatible with various tractor models, including:

• Case IH / International Harvester: VESTRUM 100 - CVX DRIVE, VESTRUM 110 - CVX DRIVE, VESTRUM 120 - CVX DRIVE, VESTRUM 130 - CVX DRIVE
• Fiat: F100, F110, F115, F120, F130, F140
• Steyr: 4095 MULTI, 4095 MULTI - ECOTECH, 4100 MULTI, 4105 MULTI, 4105 MULTI - ECOTECH, 4110 MULTI, 4115 MULTI, 4115 MULTI - ECOTECH, 4120 MULTI

Manufacturer Information

This product is not associated with any particular OEM part number, ensuring a versatile fit for your agricultural needs.
