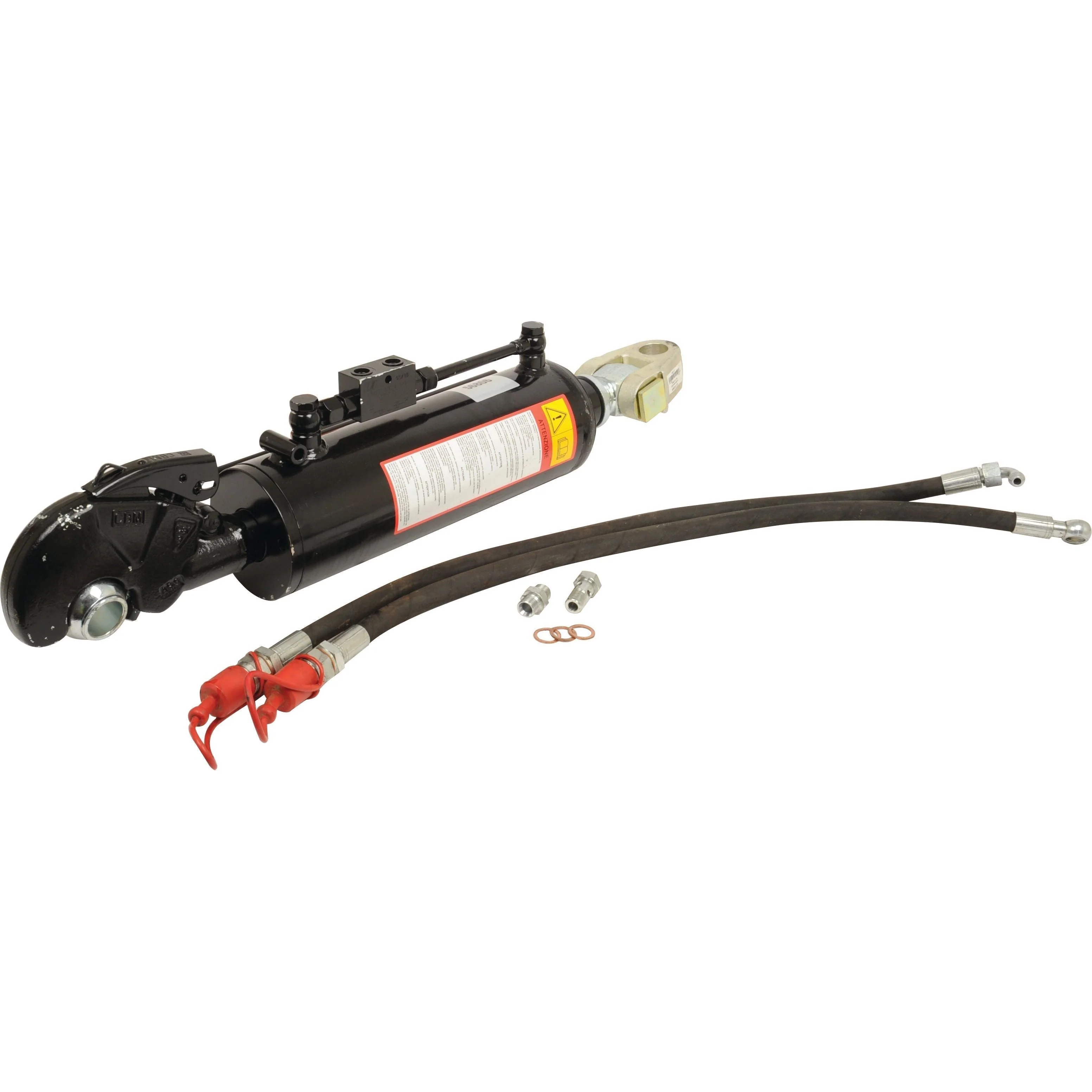

Introducing the Hydraulic Top Link (Cat. 28mm/2) with Knuckle and Q.R CBM Hook, designed for optimal performance in agricultural applications. This robust hydraulic top link features a minimum length of 640mm and a maximum length of 885mm, making it versatile for various tractor models. Each unit is supplied with a complete hose set, chain & ball, and a marker label with knuckle and pin for easy installation.

Product Specifications

• A (mm): 152
• Alternative to: 56812
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 28mm
• Category: 28mm/2
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 6930
• Maximum Length (mm): 885
• Minimum Length (mm): 640
• Related Products: 10289, 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240
• Tractor End Fixing: S.10289
• Tractor End: Knuckle

Suitable For Information

This hydraulic top link is compatible with:

• Case IH / International Harvester MAXXUM 100
• Ford / New Holland T6010 - DELTA, T6010 - PLUS, T6020, T6020 - DELTA, T6020 - PLUS, T6030, T6030 - DELTA, T6030 - PLUS, T6040, T6050 - DELTA, T6050 - PLUS, TS100A - DELTA, TS100A - PLUS / DELUXE, TS110A, TS110A - DELTA, TS110A - PLUS / DELUXE, TS115A, TS115A - DELTA, TS115A - PLUS / DELUXE, TS125A, TS125A - PLUS / DELUXE, TS130A - DELTA

Manufacturer Information

Part Number: Ford / New Holland 5197609
