Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook

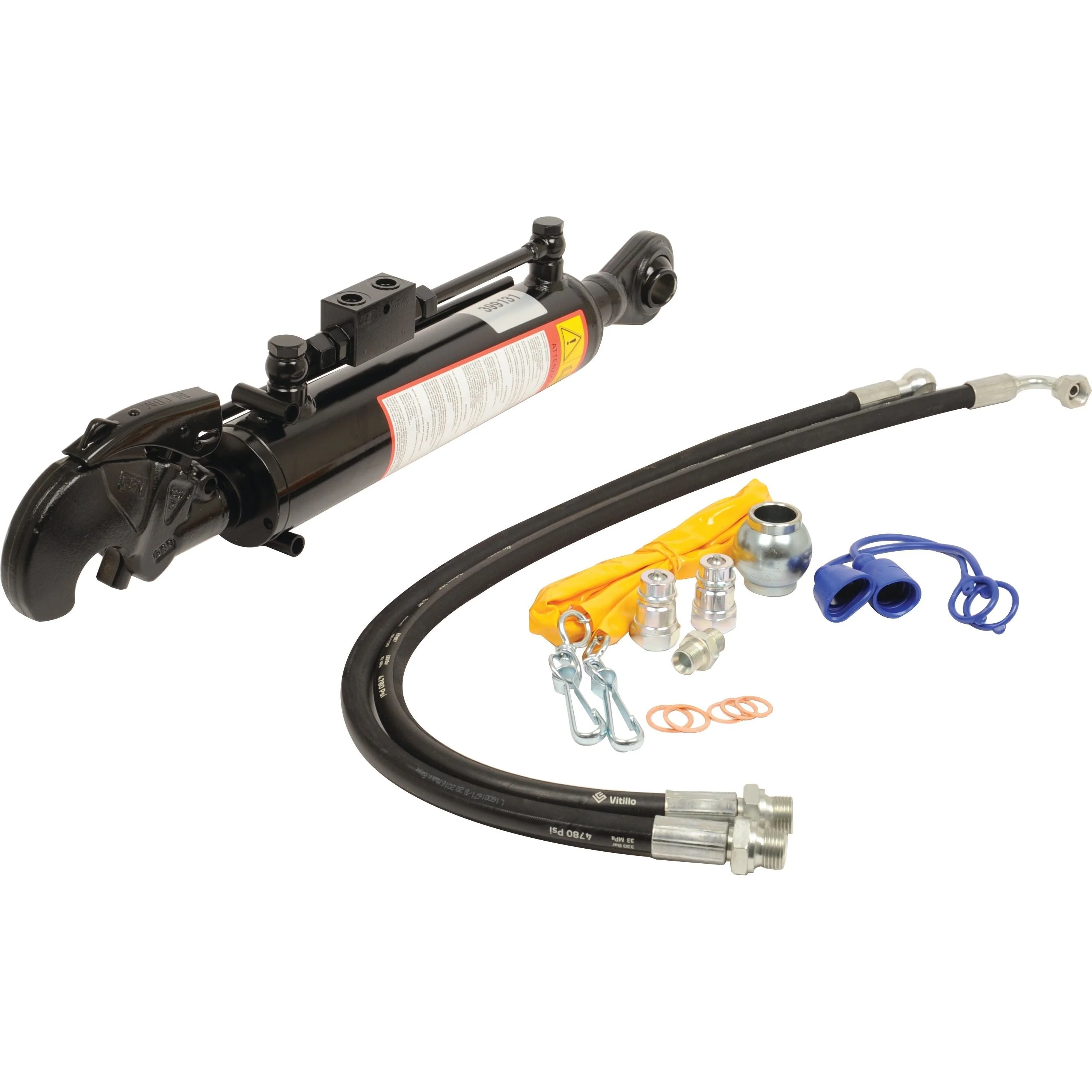

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust hydraulic top link features a cylinder bore of 80mm and offers a minimum length of 565mm and a maximum length of 804mm. It is supplied with a complete hose set, chain & ball, and a marker label equipped with a CBM hook for easy installation and use.

Product Specifications

• A (mm): 70
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Side
• Cylinder Bore (mm): 80
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 6930
• Maximum Length (mm): 804
• Minimum Length (mm): 565
• Related Products: 32255, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240
• Tractor End Fixing: Ball End
• Tractor End: Ball

Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring versatility across various applications.
