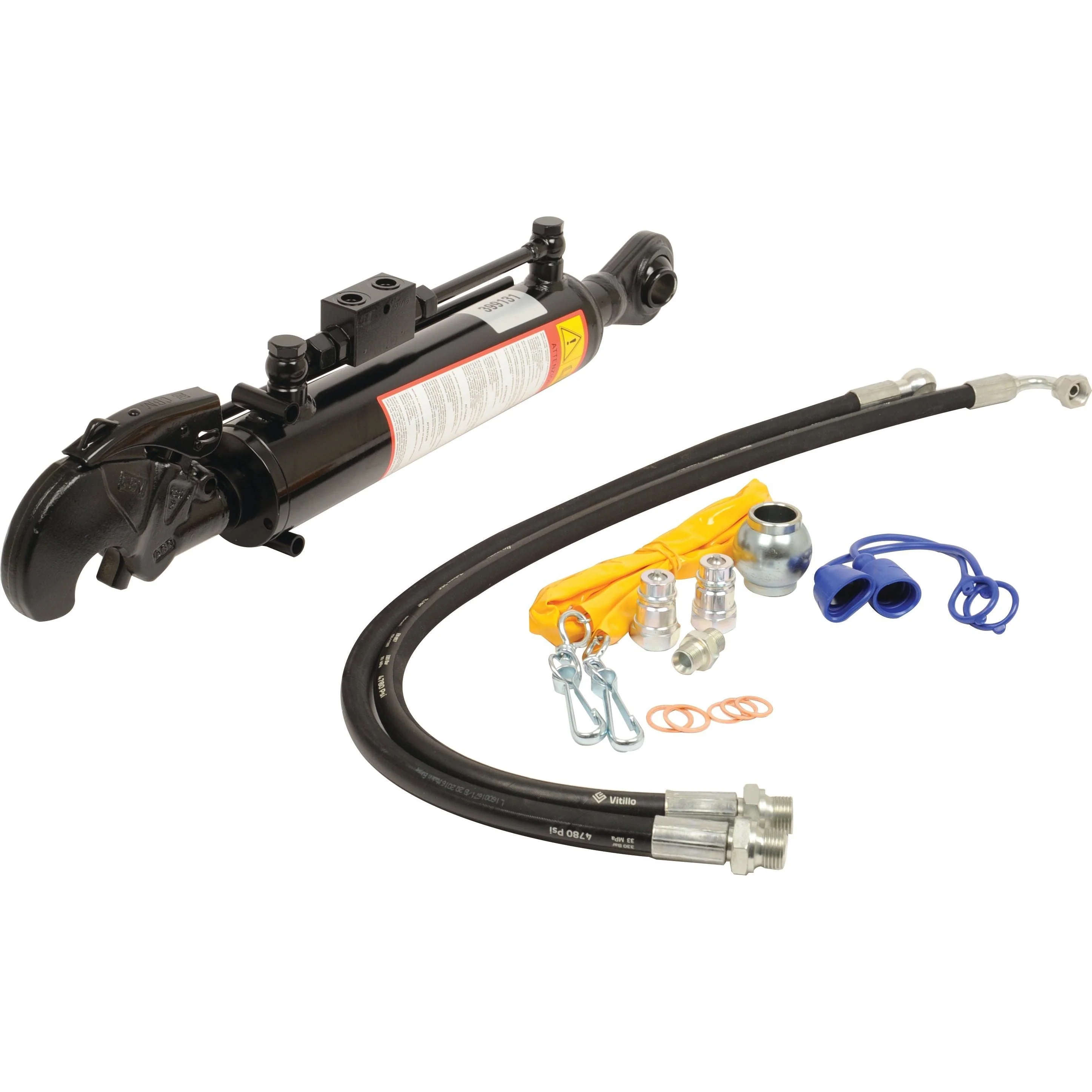

Hydraulic Top Link (Cat.1/2) with Ball and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and durability. This versatile top link features a minimum length of 637mm and a maximum length of 903mm, making it suitable for a wide range of applications. It comes complete with a hose set, chain & ball, and a marker label equipped with a CBM Hook for easy installation and use.

Product Specifications

• A (mm): 125
• Alternative to: 56803
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 1
• Category: 1/2
• Check Valve Position: Top
• Cylinder Bore (mm): 63
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 3960
• Maximum Length (mm): 903
• Minimum Length (mm): 637
• Related Products: 32253, 32948, 32952, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
• Rod Diameter (mm): 35
• Suitable for Tractors up to: 100hp (74kW)
• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 5730
• Tractor End Fixing: S.32948
• Tractor End: Ball

Suitable For

This hydraulic top link is compatible with a variety of Fiat models, including:

• 35-66
• 45-66
• 50-56
• 50-66
• 55-56
• 55-66
• 550
• 56-66
• 60-56
• 60-66
• 640
• 65-56
• 65-66
• 65-66S
• 65-66SDT
• 650
• 670
• 70-56

Manufacturer Information

This product is not associated with any specific OEM part number, ensuring a reliable alternative for your agricultural needs.
