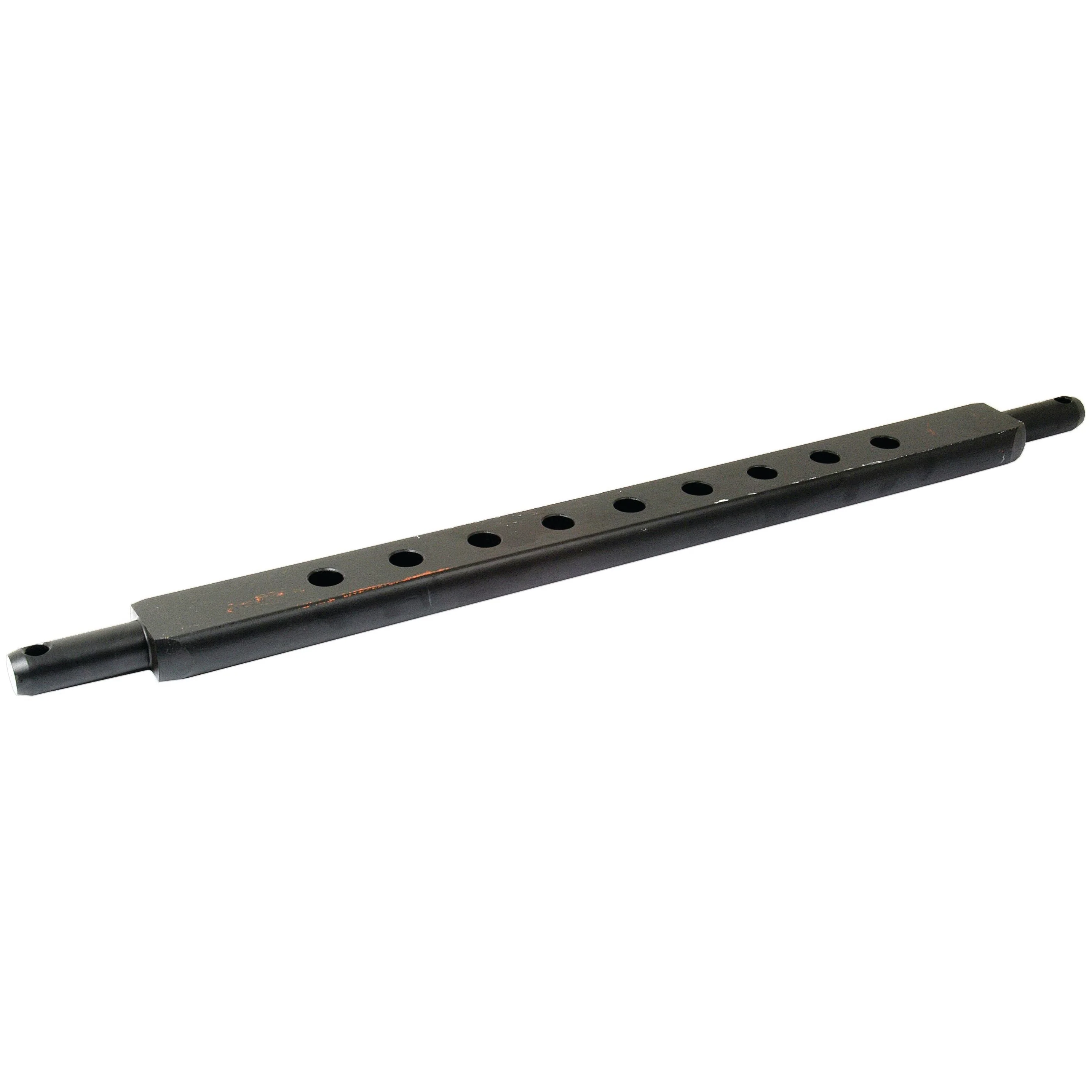

Flat Drawbar (Cat. 2) - Sparex Part No. S.3394

Enhance your agricultural equipment with the Sparex Flat Drawbar, designed for durability and efficiency. This high-quality drawbar features a pin diameter of 28mm and a hole diameter of 25mm, with hole centers spaced at 80mm, ensuring a secure fit for your machinery.

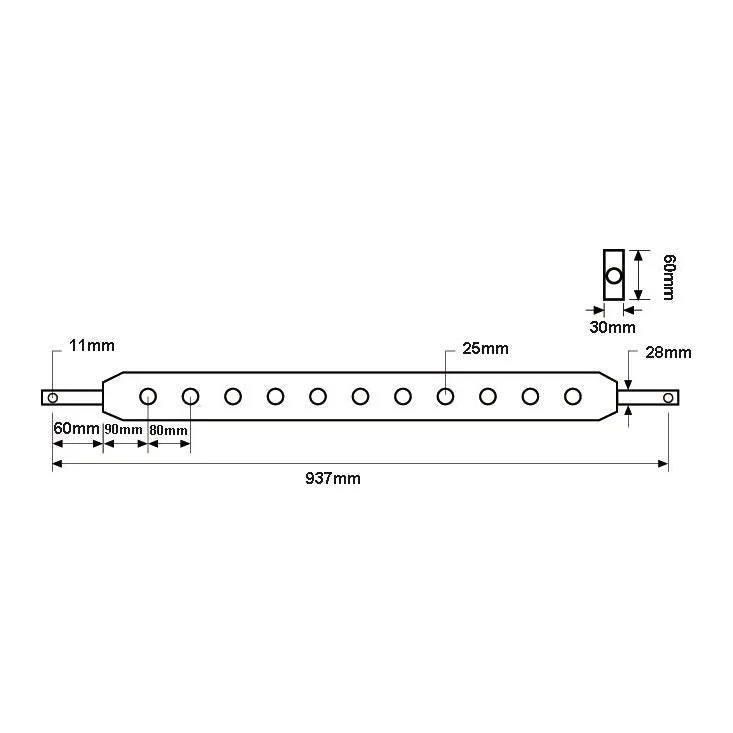

Product Specifications

• Brand: Sparex
• Category: 2
• D (ins): 2 3/8
• D (mm): 60
• E (ins): 7 1/8
• E (mm): 90
• Hole Centres (mm): 80
• Hole Centres (ins): 3 5/32
• Hole Ø (ins): 1
• Hole Ø (mm): 25
• Linch Pin Ø (mm): 11
• Number of Holes: 9
• Overall Length (ins): 36 57/64
• Overall Length (mm): 937
• Pin Ø (ins): 1 1/8
• Pin Ø (mm): 28
• Section (mm): 30x60
• Section (ins): 1 3/16x2 3/8
• Tariff Code: 7319909000
• Tensile Strength (kgs/cm²): 8000
• Tensile Strength (tons/in²): 50
• Working Length (ins): 2 3/8
• Working Length (mm): 60

Compatibility Information

This product is not associated with any particular make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any specific OEM part number, ensuring broad compatibility across different machinery.
