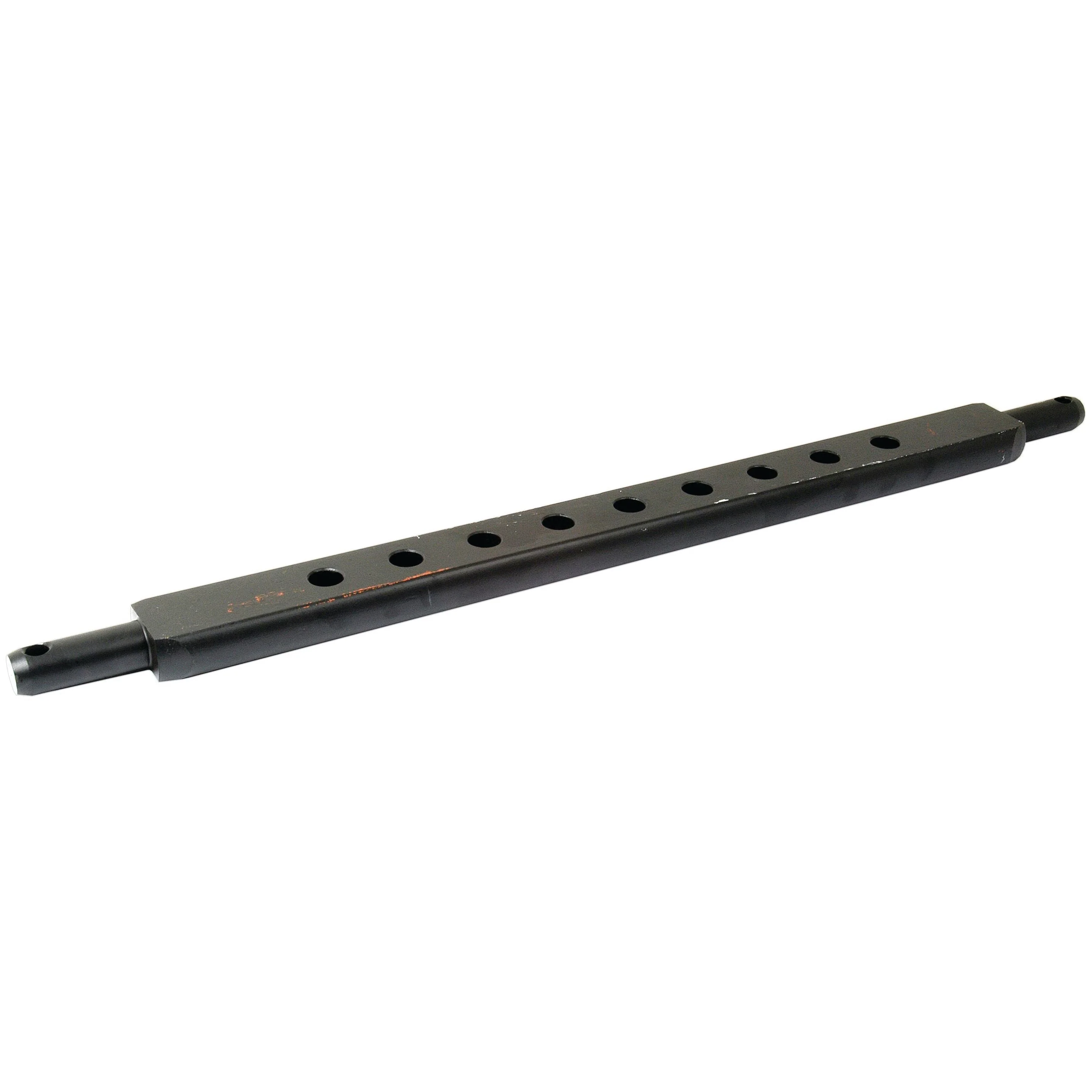

Flat Drawbar (Cat. 2) - 9 Holes, 781mm | Sparex Part No. S.124

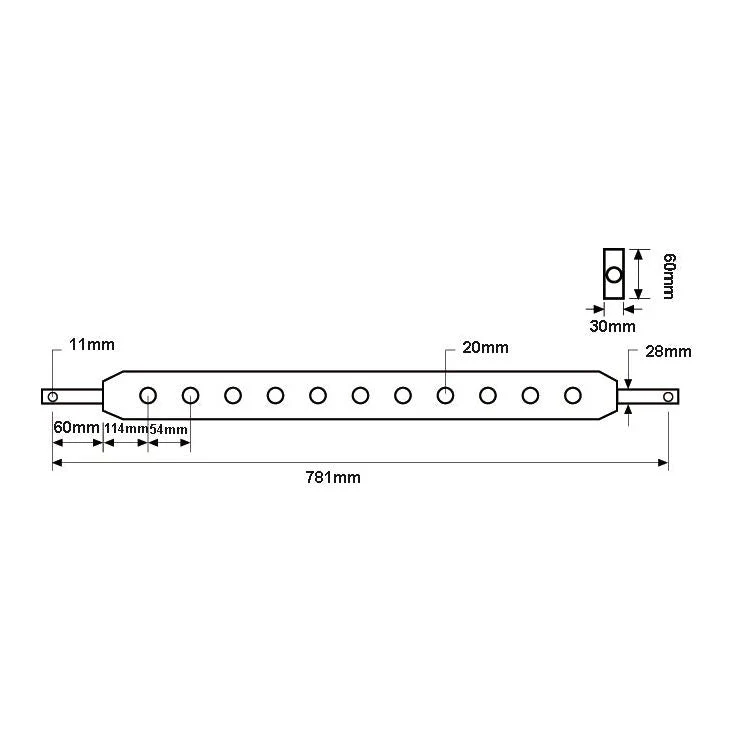

Enhance your agricultural equipment with the Sparex Flat Drawbar, designed for durability and efficiency. This robust drawbar features a pin diameter of 28mm and a hole diameter of 20mm, with hole centers spaced at 54mm, making it an ideal choice for various applications.

Product Specifications

• Brand: Sparex
• Category: 2
• D (ins): 2 3/8
• D (mm): 60
• E (ins): 4 1/2
• E (mm): 114
• Hole Centres (mm): 54
• Hole Centres (ins): 2 1/8
• Hole Ø (ins): 25/32
• Hole Ø (mm): 20
• Linch Pin Ø (mm): 11
• Number of Holes: 9
• Overall Length (ins): 30 3/4
• Overall Length (mm): 781
• Pin Ø (ins): 1 1/8
• Pin Ø (mm): 28
• Section (mm): 30x60
• Section (ins): 1 3/16x2 3/8
• Tariff Code: 7319909000
• Tensile Strength (kgs/cm²): 3150
• Tensile Strength (tons/in²): 20
• Working Length (ins): 2 3/8
• Working Length (mm): 60

Compatibility Information

This product is not associated with any particular make or model, providing versatility for various applications.

Manufacturer Information

This product is not associated with any specific OEM part number, ensuring broad compatibility across different equipment.
