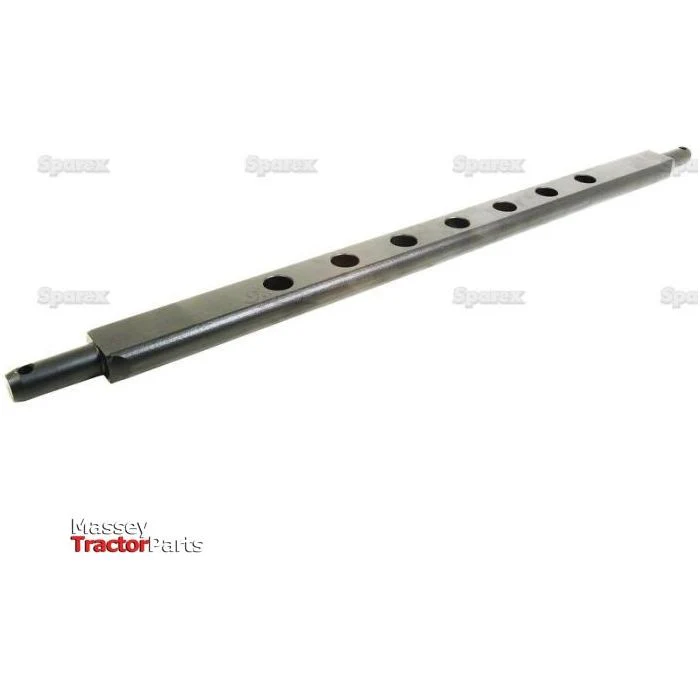

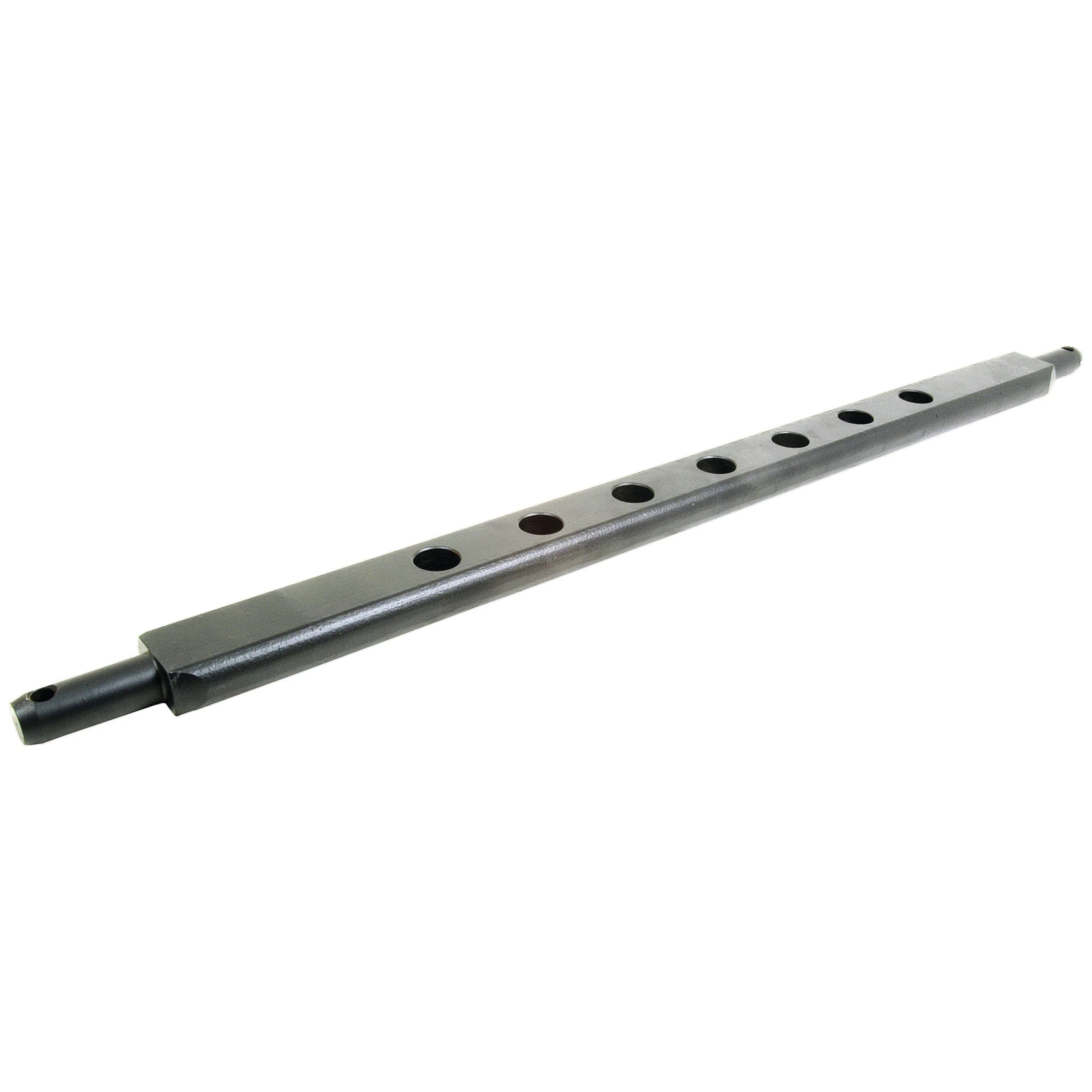

Flat Drawbar (Cat. 2) No. holes: 7, 1000mm | Sparex Part No.S.15081

This Sparex Flat Drawbar is a Category 2 hitch with 7 holes and an overall length of 1000mm. It features a pin diameter of 28mm, a hole diameter of 28mm, hole centers of 80mm, and a section of 30x60mm.

Product Specifications

• Brand: Sparex
• Category: 2
• D (ins): 2 3/8
• D (mm): 60
• E (ins): 7 1/8
• E (mm): 200
• erp_hazardous: No
• Hole centres (mm): 80
• Hole Centres Ins: 3 5/32
• Hole Ø (ins): 1 1/8
• Hole Ø (mm): 28
• Linch Pin Ø (mm): 11
• Number of holes: 7
• Overall length (ins): 39 3/8
• Overall length (mm): 1000
• Pin Ø (ins): 1 1/8
• Pin Ø (mm): 28
• Section (mm): 30x60
• Section ins: 1 3/16x2 3/8
• Tariff Code:7319909000
• Tensile Strength kgs (cm²): 3150
• Tensile Strength tons (ins²): 20
• Working length (ins): 2 3/8
• Working length (mm): 60

Suitable For

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.
