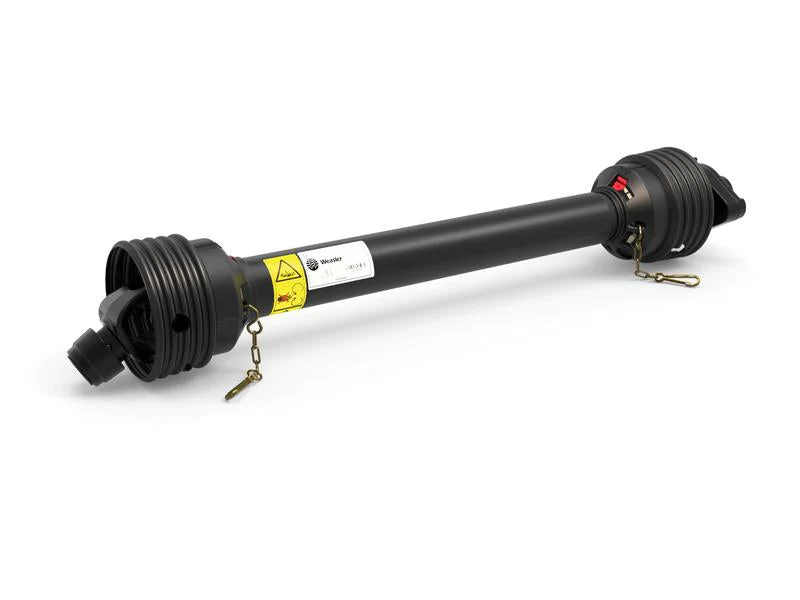

Weasler PTO Shaft - 1210mm Length, 1 3/8'' x 6 Spline Q.R. to 1 3/4'' x 6 Spline Shear Bolt Limiter

Introducing the Weasler PTO Shaft, a high-performance solution designed for optimal power transfer and durability. This PTO shaft is engineered to meet the demands of various agricultural and industrial applications.

Product Specifications:

• Brand: Weasler
• Clutch Setting: 4180 Nm
• Guard Type: Easylock
• HP Rating @ 540 RPM: 100 HP
• HP Rating Range @ 540 RPM: 55 to 119 HP
• Implement End: 1 3/4'' x 6 Spline Shear Bolt Limiter
• Italian Series: AB8N/A8N
• Kilowatt Power Rating @ 540 RPM: 75 kW
• Lz Length: 1210 mm
• PTO Series: AB8N/A8N
• Reference: 1680-6818-12124
• Related Products: 7539, 165467
• Shearbolt Clutch Bolt Ø: 12 mm
• Shearbolt Clutch Radius: 56 mm
• Tariff Code: 8483908990
• Torque: 2255 - 3225 Nm
• Total Closed Length: 1498 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Tube Reference: 12512/12522
• Universal Joint Dimensions: 35 x 106.5 mm

This Weasler PTO Shaft is not associated with any particular OEM part number, making it a versatile choice for various machinery. With its robust construction and reliable performance, it is ideal for those seeking a dependable PTO solution.

For more information or to purchase, refer to the Sparex Part Number: S.155511.
