V Belt - A Section - Belt No. A26 | Sparex Part No.S.18708

This Sparex (Agribelt) A26 V Belt is a standard, smooth V belt designed for a variety of agricultural applications. It features a "A" section and a pitch length of 690mm. This belt is compatible with a wide range of agricultural machinery, including Allis Chalmers, Case IH / International Harvester, Ford / New Holland, Hesston, John Deere, and Massey Ferguson models.

Product Specifications

• Belt No.: A26
• Brand: Sparex (Agribelt)
• Datum length LD (mm): 690
• Depth (mm): 8
• Depth ins: 5/16
• Effective Length (ins): 27
• Effective Length (mm): 690
• Inside length Li (mm): 660
• Inside length Li ins: 26
• Outside length La (ins): 28
• Outside length La (mm): 710
• Pitch Length (Lp) (Lw):: 690
• Related products: 14683
• Section: A
• Tariff Code: 4010390090

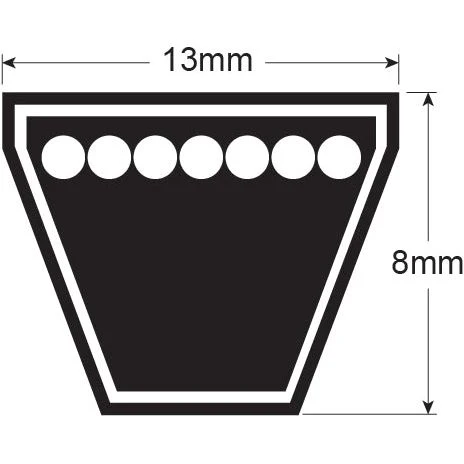

• Top Width x Depth: 13 x 8mm (1/2'' x 5/16'')
• Type: Standard V Belt (Smooth)
• Width (ins): 1/2
• Width (mm): 13

OEM Fitment Information

• Allis Chalmers: 0823358, 70823358, A26
• Case IH / International Harvester: 379629R1
• Ford / New Holland: 330675
• Hesston: 855619
• John Deere: M40222, M40222M
• Massey Ferguson: 518223M2, 518223M21

Product Machine Fitment Information

This product is not associated with any particular make or model.
