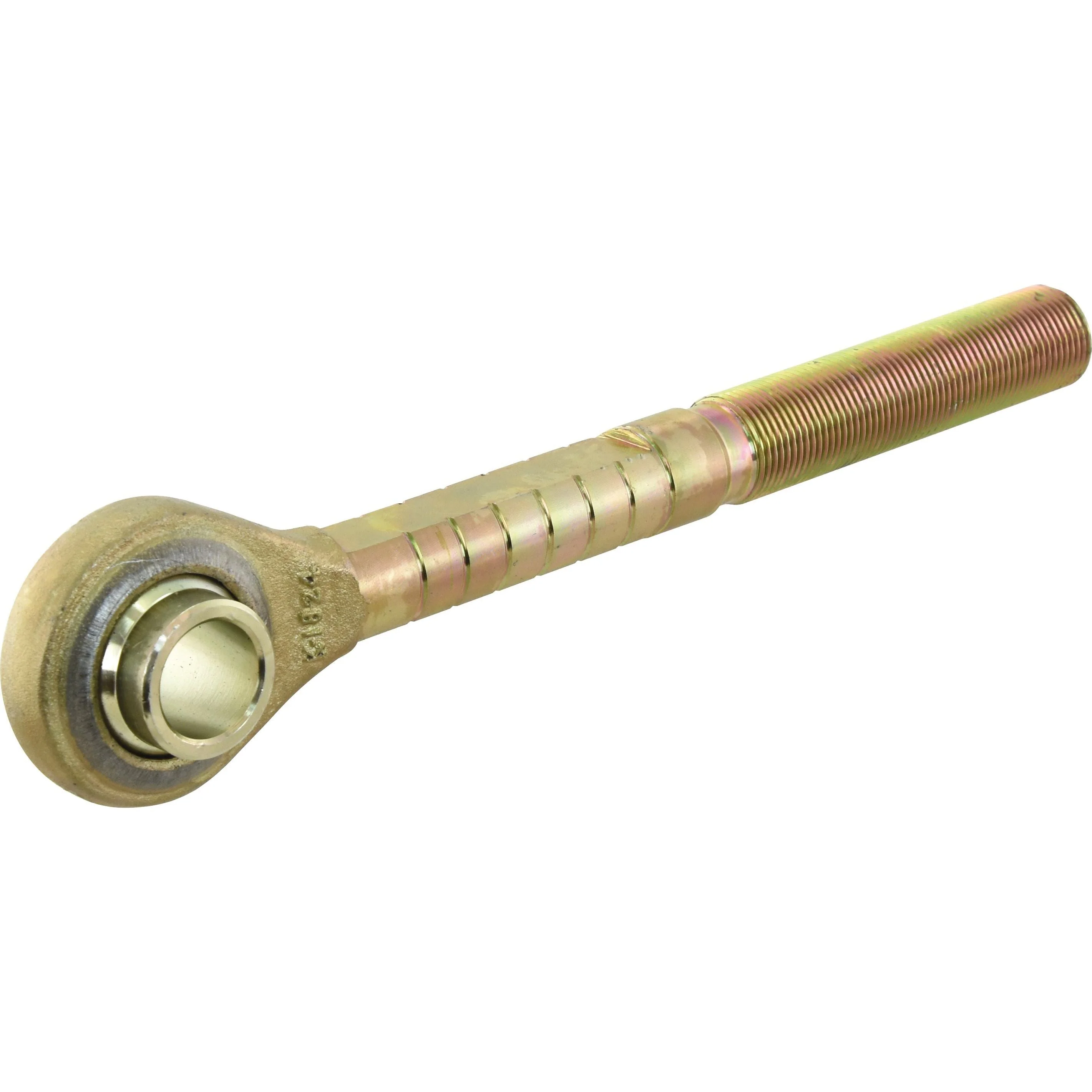

Top Link Ball End - 1 1/16'' UNF - Cat.2 | Sparex Part No.S.443

Enhance your agricultural machinery with the high-quality Top Link Ball End, designed for optimal performance and durability. With a ball bore diameter of 25.4mm (1 inch) and an overall length of 328mm (12 29/32 inches), this component is essential for ensuring smooth operation in various applications.

Product Specifications

• Ball Bore Diameter: 25.4mm (1 inch)
• Ball Width: 50.8mm (2 inches)
• Brand: Spenco
• Category: 2
• End Radius: 33mm (1 5/16 inches)
• Fitting: Right Hand (RH)
• Notes: 183623M93
• Overall Length: 328mm (12 29/32 inches)
• Tariff Code: 7303009090
• Thread Length: 127mm (5 inches)
• Thread Size: 1 1/16''
• Thread Type: UNF
• Working Length: 295mm (11 5/8 inches)

Suitable For

This Top Link Ball End is compatible with a range of models from Landini 6030 and Massey Ferguson models including:

• 1080, 133, 135, 135 GAS / 135 PETROL, 140, 148, 152, 155, 165, 168, 175, 178, 185, 188
• 20C, 20D, 20F, 230, 235, 240, 243, 245, 250, 255, 260, 263, 265, 275, 290
• 30B, 30D, 30E, 340, 342, 350, 352, 355, 360, 362, 365, 372, 375, 375E BRAZILIAN
• 382, 390, 390E BRAZILIAN, 390T, 40B, 40E, 425 BRAZILIAN, 435 BRAZILIAN
• 50, 550, 560, 565, 575, 590, 65, 675, 690, 698, 698T, 699, 765, 865

Manufacturer Information

Part Number: Massey Ferguson 183623M93
