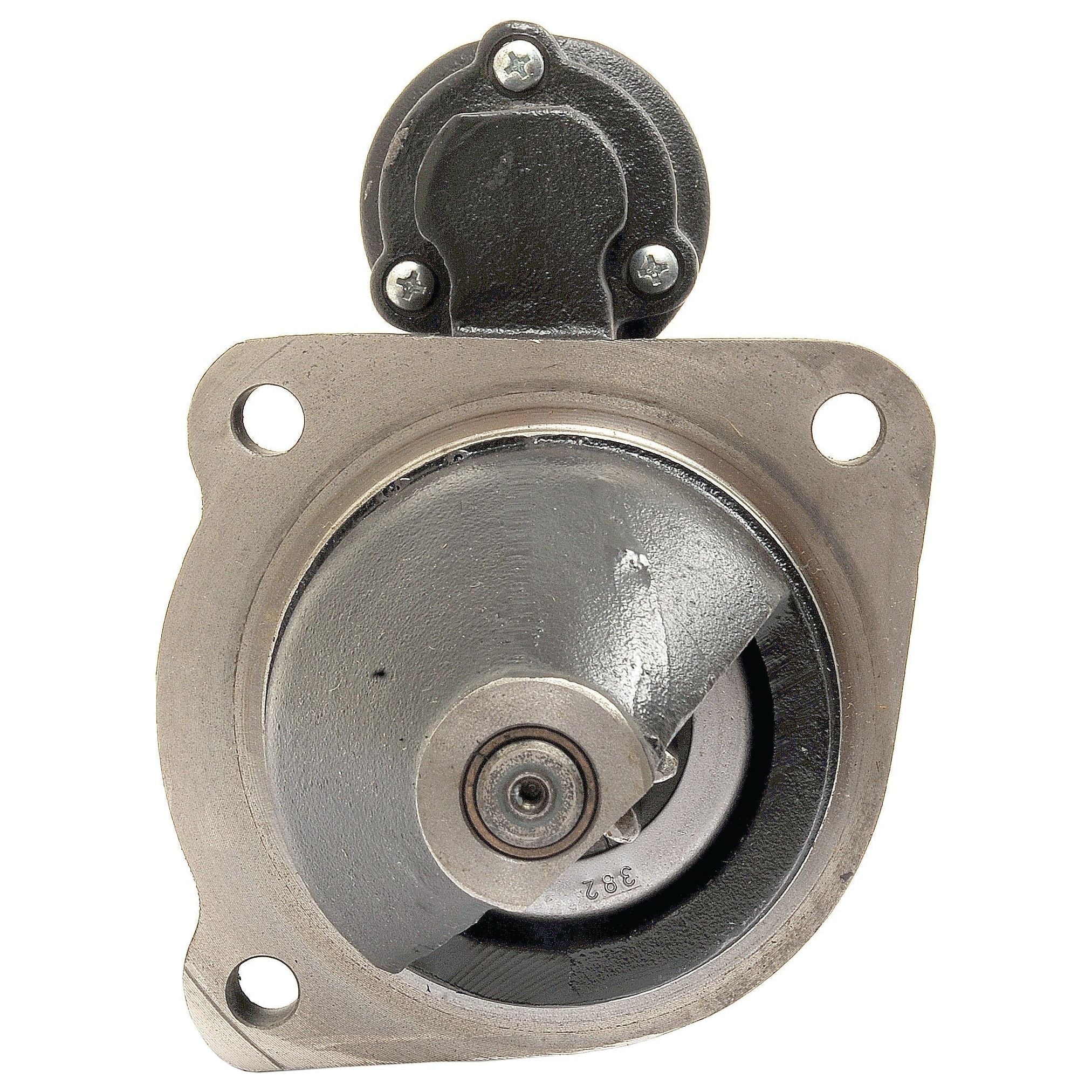

Starter Motor - 12V, 4.2Kw, Gear Reduced (Mahle) | Sparex Part No. S.36199

Product Specifications

• A (mm): 127
• a Angle (°): -40
• B (mm): 89
• Bell Opening: RH
• Brand: Mahle
• C (mm): 32.5
• D (mm): 39.6
• Distance Between Teeth (mm): 15.4
• E (mm): 10.9
• Fitting: 3 Hole Flange - RH Opening
• Gear Reduced: Yes
• Height (mm): 152.4
• Kilowatts: 4.2
• Length (mm): 387.4
• Length from Front Mounting Face to Rear (mm): 250
• Mounting Hole (mm): 10.9
• Number of Flange Holes: 3
• Number of Teeth: 10
• Outer Diameter of Battery Terminal (mm): 9.8
• Tariff Code: 8511400090
• Volts: 12V

Suitable For

Case IH / International Harvester: CX100, CX70, CX80, CX90
Claas: CONSUL, MERCATOR 50
JCB: 2CX, 3CX, 410, 411, 4C, 4CN, 4CX, 525-50, 525-50S, 530, 532, 532H TURBO, 533-105, 535-95, 537, 537H, 540, 540-170, 926, 930, 940
Landini: 10000
Manitou: MLT629-120LS
Massey Ferguson: 1004, 1014, 1080, 1114, 1134, 1200, 155, 158, 165, 168, 175, 178, 185, 188, 240, 265, 275, 290, 298, 3050, 3060, 3065, 307, 3070, 3075, 362, 365, 372, 375, 375E BRAZILIAN, 382, 390, 390E BRAZILIAN, 396, 398, 399, 4215, 4220, 4225, 4235, 4245, 4255, 4260, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 440 BRAZILIAN, 481 BRAZILIAN, 492 BRAZILIAN, 50, 506, 507, 50B, 50D, 50E, 50EX, 50F, 50H, 50HX, 520, 525, 5425, 5435, 5445, 5455, 5460, 565, 575, 590, 595, 60, 60H, 60HX, 6110, 6120, 6130, 6140, 6150, 6235, 6245, 6255, 6265, 6445, 6455, 6460, 6470, 675, 690, 698, 699
McCormick: CX100, CX70, CX80, CX90
Perkins: A4.212, A4.236, A4.248, A4.318, A6.354.4

Manufacturer Information

AGCO: 6306847M91, 2834390M91, 3786310M1, 3788259M93, 3788259M94, 067916T1
Iskra: IS1023, IS1159
JCB: 714/40159
Massey Ferguson: 3821818M93, 3821818M91, 3821818M94
McCormick: 700336A1
