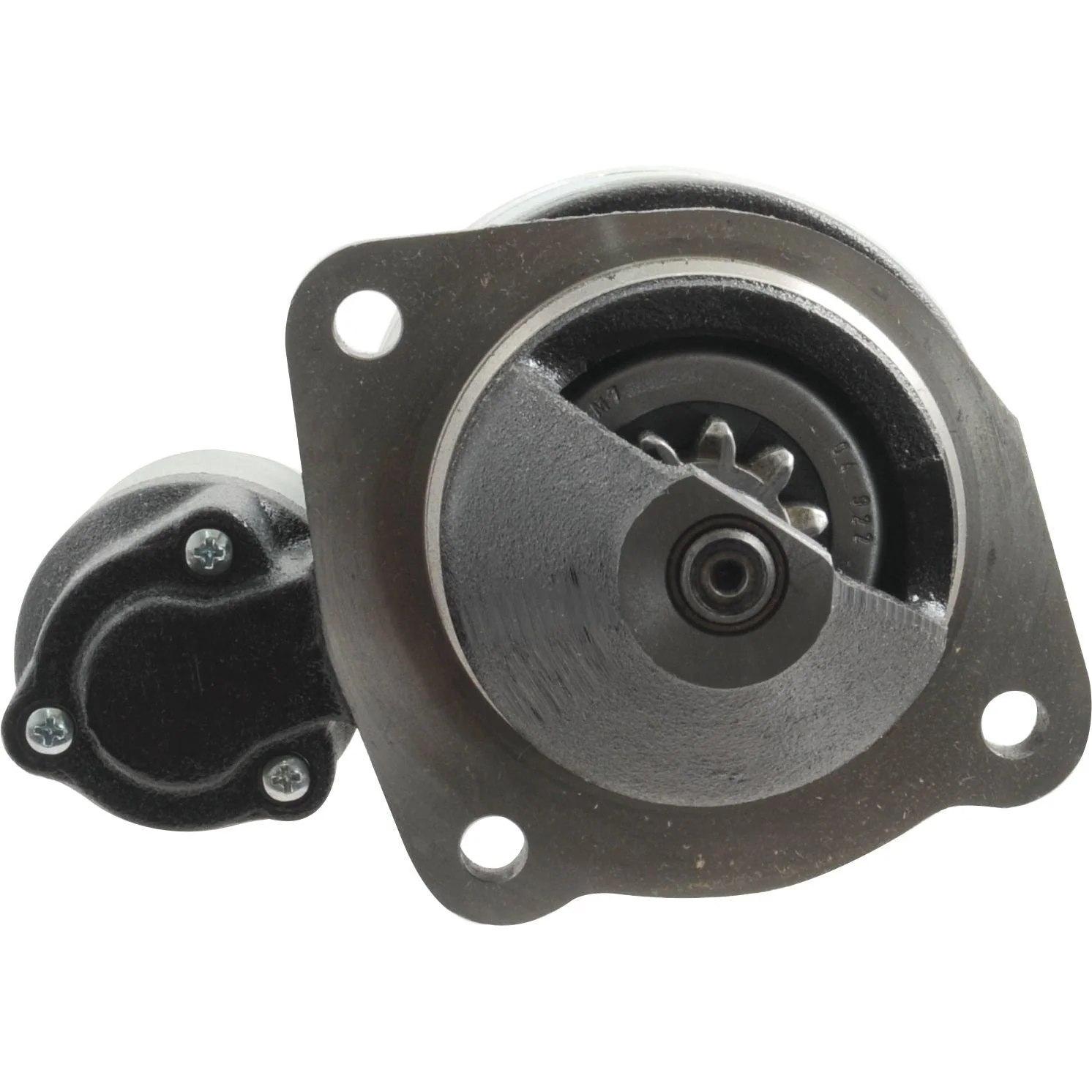

Starter Motor - 12V, 3Kw (Mahle) | Sparex Part No. S.36189

Product Specifications

• A (mm): 127
• a Angle (°): -40
• Alternative to: 361891, 127859
• B (mm): 89
• Bell Opening: RH
• Brand: Mahle
• C (mm): 32.5
• D (mm): 39.6
• Distance Between Teeth (mm): 15.4
• E (mm): 10.9
• Fitting: 3 Hole Flange - RH Opening
• Gear Reduced: No
• Height (mm): 152.4
• Kilowatts: 3
• Length (mm): 381
• Length from Front Mounting Face to Rear (mm): 238
• Mounting Hole (mm): 10.9
• Number of Flange Holes: 3
• Number of Teeth: 10
• Outer Diameter of Battery Terminal (mm): 7.8
• Tariff Code: 8511400090
• Volts: 12V

Suitable For

Case IH / International Harvester: CX100, CX70, CX80, CX90, MX100C, MX80C, MX90C
Claas: CONSUL, MERCATOR 50
Landini: LARGE 10000
Manitou: MLT629-120LS
Massey Ferguson: 1004, 1004T, 1014, 1080, 1114, 1134, 1200, 155, 158, 165, 168, 175, 178, 185, 188, 240, 265, 275, 290, 298, 3050, 3060, 3065, 307, 3070, 3075, 362, 365, 372, 375, 375E BRAZILIAN, 382, 390, 390E BRAZILIAN, 390T, 396, 398, 399, 4215, 4220, 4225, 4235, 4245, 4255, 4260, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 440 BRAZILIAN, 481 BRAZILIAN, 492 BRAZILIAN, 50, 506, 507, 50B, 50D, 50E, 50EX, 50F, 50H, 50HX, 520, 525, 5425, 5435, 5445, 5455, 5460, 565, 575, 590, 595, 60, 60H, 60HX, 6110, 6120, 6130, 6140, 6150, 6235, 6245, 6255, 6265, 6445, 6455, 6460, 6470, 675, 690, 698, 698T, 699
McCormick: CX100, CX70, CX80, CX90
Perkins: A4.212 (LA), A4.236 (LD), A4.248 (LF), A4.318 (NC), A6.354.4 (TW)

Manufacturer Information

AGCO: C000900060220
Case IH / International Harvester: 234987A1, 323319A1, 73326810, 395378A1, 388187A2, 395377A1, 388187A1
Iskra: IS0807
Landini: 388187A2, 388187A3, 388187A1
Lester: 18482
Massey Ferguson: 6106496M92
