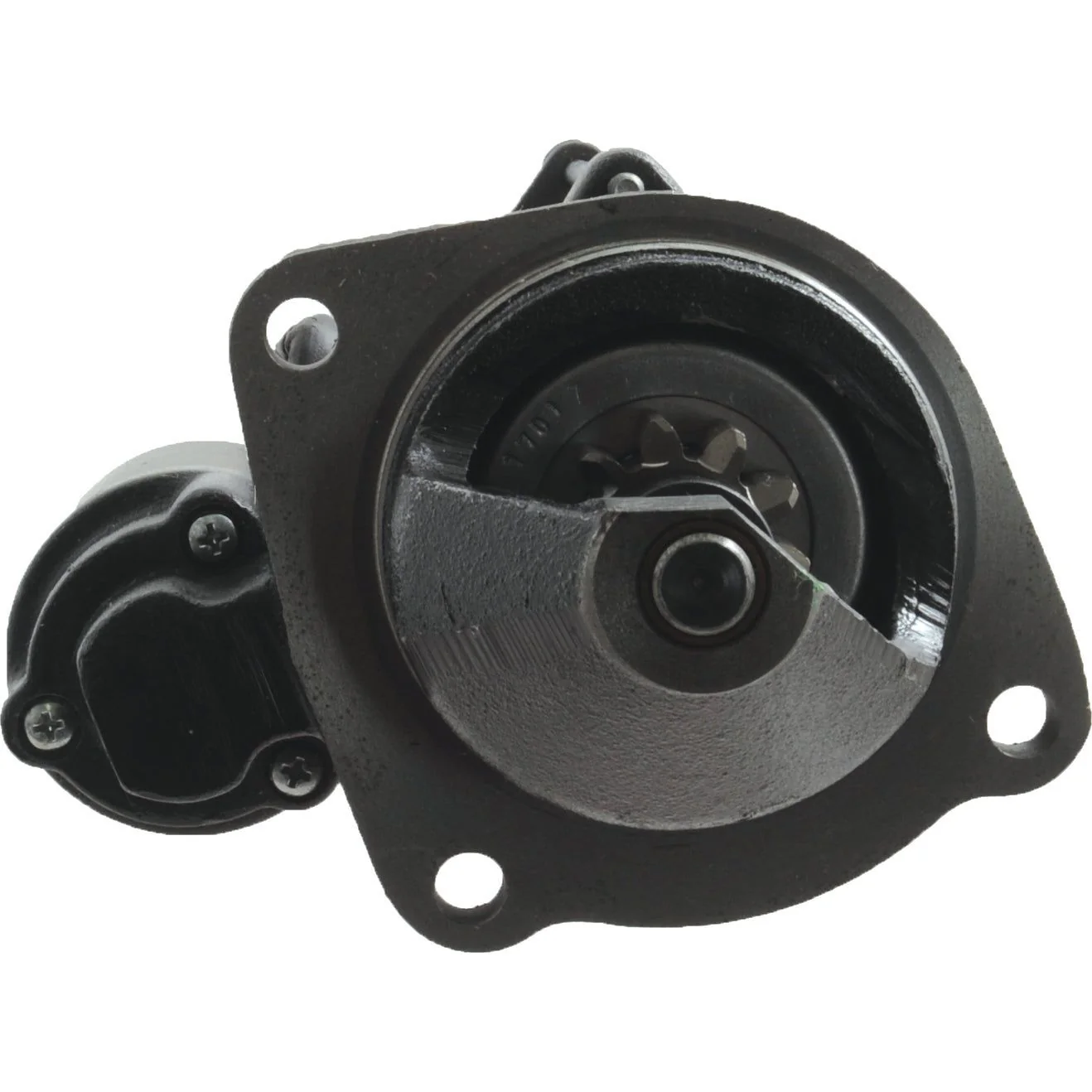

Starter Motor - 12V, 3.2Kw, Gear Reduced (Mahle) | Sparex Part No. S.113797

Product Specifications

• A (mm): 127
• a Angle (°): -42
• Alternative to: 68269
• B (mm): 89
• Bell Opening: RH
• Brand: Mahle
• C (mm): 32.5
• D (mm): 39.6
• Distance Between Teeth (mm): 15.4
• E (mm): 10.9
• Fitting: 3 Hole Flange - RH Opening
• Gear Reduced: Yes
• Height (mm): 152.4
• Kilowatts: 3.2
• Length (mm): 381
• Length from Front Mounting Face to Rear (mm): 220
• Mounting Hole (mm): 10.9
• Number of Flange Holes: 3
• Number of Teeth: 10
• Outer Diameter of Battery Terminal (mm): 7.8
• Tariff Code: 8511400090
• Volts: 12V

Suitable For

JCB: 2, 2CX, 3, 3CX, 532-120
Manitou: MLT629-120LS
Massey Ferguson: 1004, 1004T, 155, 158, 165, 168, 175, 178, 185, 188, 235 BRAZILIAN, 240, 250 BRAZILIAN, 265, 275, 290, 292 BRAZILIAN, 295 BRAZILIAN, 296 BRAZILIAN, 297 BRAZILIAN, 298, 299 BRAZILIAN, 3050, 3060, 3065, 307, 3070, 3075, 3330, 3340, 3350, 3355, 3425, 3435, 3445, 3455, 362, 365, 372, 375, 375E BRAZILIAN, 382, 390, 390E BRAZILIAN, 390T, 396, 398, 399, 415 BRAZILIAN, 4215, 4220, 4225, 4235, 4245, 425 BRAZILIAN, 4255, 4260, 4265, 435 BRAZILIAN, 440 BRAZILIAN, 445 BRAZILIAN, 460 BRAZILIAN, 465 BRAZILIAN, 475 BRAZILIAN, 481 BRAZILIAN, 492 BRAZILIAN, 50, 500B, 506, 507, 50B, 50D, 50E, 50EX, 50F, 50H, 50HX, 520, 525, 5340 BRAZILIAN, 5355 BRAZILIAN, 5360 BRAZILIAN, 575, 590, 595, 60H, 60HX, 6110, 6120, 6130, 6140, 6150, 675, 690, 698, 698T, 699
McCormick: CX100, CX105, CX70, CX80, CX85, CX90, CX95, MC100, MC105, MC80, MC90
Perkins: 1103B-33 (DF), 1103B-33T (DG), 1103C-33 (DC), A4.212 (LA), A4.236 (LD), A4.248 (LF), A4.318 (NC), A6.354.4 (TW)
Renault: 70-32, 70-34, 75-32, 75-34, 80-32, 80-34, 85-32, CERES 75

Manufacturer Information

Iskra IS1201
JCB: 714/40531, 714/40536, 714/40159, 714/40231, 714/40159R
Massey Ferguson: 4226785M91, 4225326M91, 4226784M91, 4227054M91, 4227441M91, 1482841M92
Perkins: 2873K626, 2873A029, 2873K405, 2873K624, T410865
