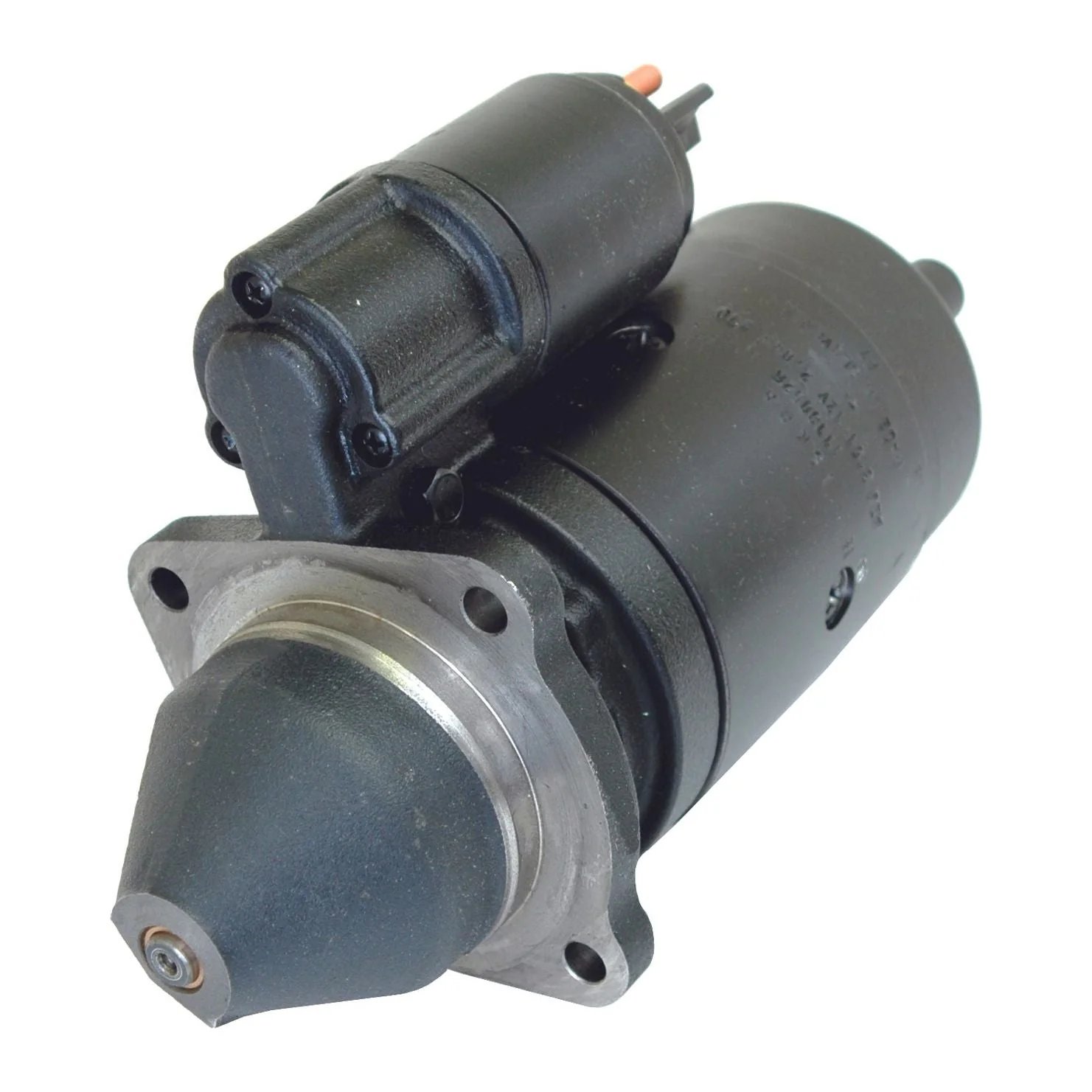

Starter Motor - 12V, 2.8Kw (Mahle) | Sparex Part No. S.361050

Product Specifications

• A (mm): 127
• a Angle (°): 45
• Alternative to: 361051, 127864
• B (mm): 89
• Bell Opening: LH
• Brand: Mahle
• C (mm): 32.5
• D (mm): 39.6
• Distance Between Teeth (mm): 15.4
• E (mm): 10.9
• Fitting: 3 Hole Flange - LH Opening
• Gear Reduced: No
• Height (mm): 146.1
• Kilowatts: 2.8
• Length (mm): 381
• Length from Front Mounting Face to Rear (mm): 250
• Mounting Hole (mm): 10.9
• Number of Flange Holes: 3
• Number of Teeth: 10
• Outer Diameter of Battery Terminal (mm): 7.8
• Related Products: 39956
• Tariff Code: 8511400090
• Volts: 12V

Suitable For

Landini: 6000, 7000, C6000
Manitou: MLA628, MLT626, MLT628, MLT725, MRT2150, MT732, MT932
Massey Ferguson: 3085, 3095, 3115, 3120, 3125, 3635, 3645, 3655, 3670, 3680, 3690, 6160, 6170, 6180, 6190, 6260, 6270, 6280, 6290, 8110, 8120, 8130, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8260
Perkins: A6.354.4, AT6.354.4, T6.354.4
Valmet & Valtra: 8300, 8600

Manufacturer Information

AGCO: C000900060090
Bosch: 986018151
Case IH / International Harvester: 73328002
Claas: 6005706629
Iskra: IS0526
JCB: 714/29300R
Landini: 3551773M91, 1447732M1, 2873A102, 2873B056, 2873B071, 2873001, 3581576M2, 3581576M3, 3541729M91, 3541730M91, 3648190M91
Lester: 17650, 17649, 17644
Lucas: 27570, LRS00161, LRS00968, LRS968, NSB524, 27518, 27520, 27588, NSB529, LRS00195, LRS00124, LRS195, LRS00302
Manitou: 745011
Massey Ferguson: 3581576M1, 3581576M2, 3935081E1ATG, 3930508E1, 3581576M3, 28730001T, 2873B056T, 2873B071, 2873001T, 3930508R1
Perkins: 1447732MI, 3581576MI, 3581576R1, 2873B056, 2873B071, 37701400, 2873001, 2873A001, 2873A102, 2873A030, 1446802M91, 1447732R1
