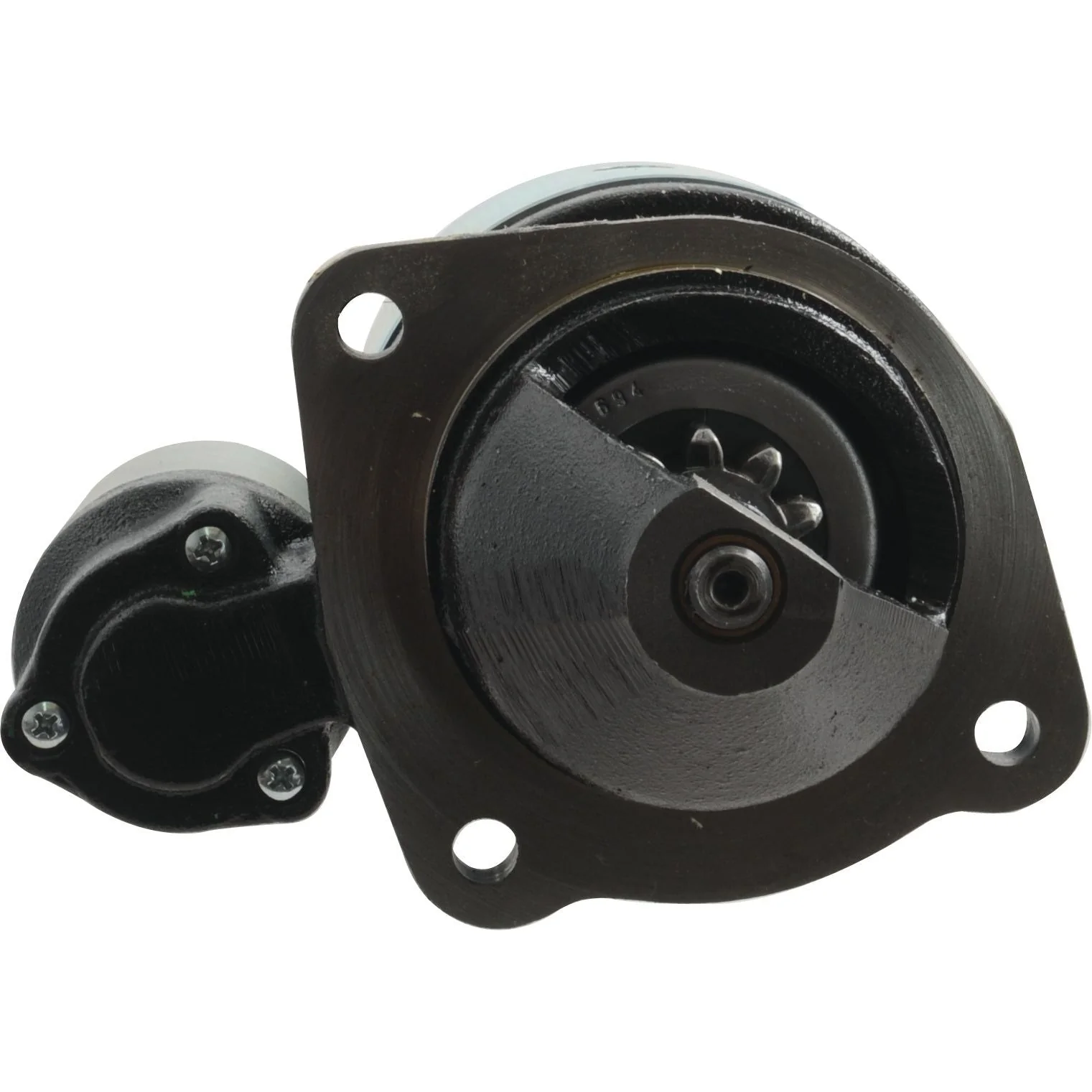

Starter Motor - 12V, 2.8Kw (Mahle) | Sparex Part No. S.35976

Product Specifications

• A (mm): 127
• a Angle (°): -40
• Alternative to: 68269, 68277, 127859
• B (mm): 89
• Bell Opening: RH
• Brand: Mahle
• C (mm): 32.5
• D (mm): 39.6
• Distance Between Teeth (mm): 15.4
• E (mm): 10.9
• Fitting: 3 Hole Flange - RH Opening
• Gear Reduced: No
• Height (mm): 152.4
• Kilowatts: 2.8
• Length (mm): 387.4
• Length from Front Mounting Face to Rear (mm): 250
• Mounting Hole (mm): 10.9
• Number of Flange Holes: 3
• Number of Teeth: 10
• Outer Diameter of Battery Terminal (mm): 9.8
• Related Products: 39956
• Tariff Code: 8511400090
• Volts: 12V

Suitable For Information

This starter motor is compatible with a variety of machinery, including:

• Case IH / International Harvester: C70, C80, C90, CX100, CX70, CX80, CX90, MX100C, MX80C, MX90C
• Claas: CONSUL, MERCATOR 50
• JCB: 185 ROBOT, 185 ROBOT HF, 2CX, 3C, 3CX, 3D, 409, 411, 416, 4C, 4CN, 4CX, 520, 520-50, 520-55, 520S, 525, 525-50, 525-50S, 525-58, 525-58FS ATMO, 525-67, 526, 526-55, 526-55FS, 526S, 526SLE, 527-58, 527-58FS, 527-67, 527-67FS, 528-70, 528S, 530, 530-110, 530-120, 530-95, 530S, 532, 532H TURBO, 532HLE, 532LE, 537, 537-120, 537-130, 537H, 537LE, 540, 540-120, 540-170, 926, 930, 940, TM200, TM270 TELE-AGRI
• Landini: 6500, 6530, 6550, 6560, 6830, 6840, 6870, 7500, 7530, 7560, 7830, 7870, 8500, 8530, 8560, 8830, BLIZZARD 65, BLIZZARD 85, LARGE 9550, TREKKER 75, TREKKER 85
• Manitou: MLT629-120LS
• Massey Ferguson: 1004, 1004T, 155, 158, 165, 168, 174, 174C, 175, 178, 184, 185, 188, 194, 240, 263, 265, 273, 274, 274SK, 275, 283, 284, 285 (FR), 290, 293, 294, 298, 3050, 3060, 3065, 307, 3070, 3075, 350, 355, 360, 362, 365, 372, 373, 374, 375, 375E BRAZILIAN, 377, 382, 383, 384, 387, 390, 390E BRAZILIAN, 390T, 396, 398, 399, 4215, 4220, 4225, 4235, 4245, 4255, 4260, 4265, 440 BRAZILIAN, 50, 506, 507, 50B, 50D, 50E, 50EX, 50F, 50H, 50HX, 520, 525, 565, 575, 590, 592, 595, 60, 60H, 60HX, 6110, 6120, 6130, 6140, 6150, 675, 690, 698, 698T, 699
• McCormick: CX100, CX70, CX80, CX90
• Perkins: A4.212 (LA), A4.236 (LD), A4.248 (LF), A4.318 (NC), A6.354.4 (TW)

Manufacturer Information

This starter motor is manufactured by Mahle and is compatible with various OEM part numbers:

• AGCO: C000900060070
• Bosch: 0001367040, 9000143416
• Case IH / International Harvester: 234987A1, 73326810
• Claas: 6005700081
• HELLA LTD: CS946
• Iskra: IS0509
• JCB: 714/29500
• Landini: 3542185M92, 3546391M, 3546391M91, 3597372M2, 3597372M1, 3542185M, 3539390M92, 3763362M94, 3763362M91, 1868285M2, 3539390M91, 3546391M92, 3542185M91, 12873004, 2873B072, 2873003, 2873A031, 1868285M3, 1860093M2, 1691806M1
• Lester: 18289, 17650, 19736, 17072, 18482
• Lucas: NSB540, LRS00232, LRS519, LRS232, LRS215, S5027, NSB529, NSB531, 26413R, 26410, 26271R, 27539, 27539R, 27464, 26404R, 26413, 27572, 27572B, 26404, 26271
• Massey Ferguson: 4224340M91, 4226701M91, 3930509R1, 1691806R1, 1691806M1, 3930506R1, 3930506E1, 3930506E1ATG, 2873B072, 3519400M92, 1868287T, 1868285M2, 1868285M3, 1447731M1, 3763362M92, 3763362M91, 1680064M1, 3597372R2, 3597372M2, 3597372M1, 2873B057, 1860093M2, 1868285M91, 1868285M3
• Perkins: 2873B055, 2873B072, 2873003, 26410R
• Renault: 6005700081, 7701031686, 7700011850, 6005003154, 6005021272
• Valeo: 433316
