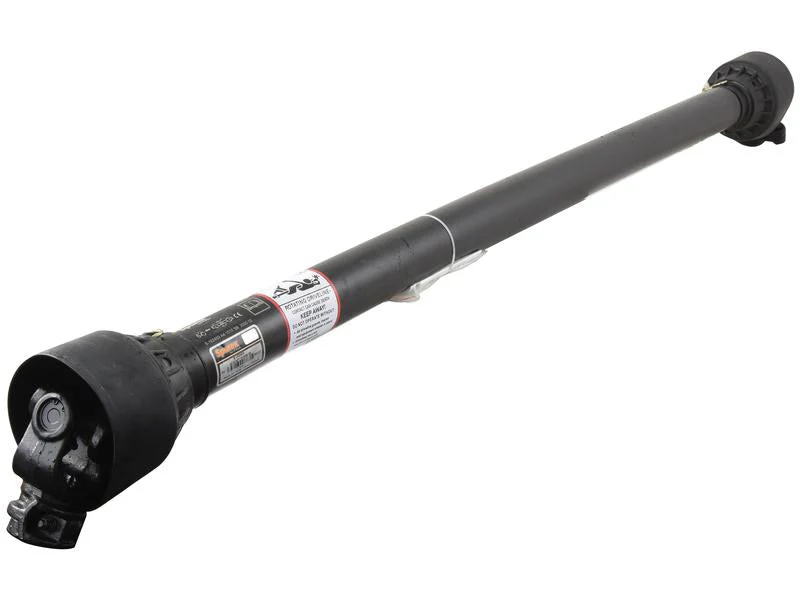

Sparex PTO Shaft - (Lz) Length: 880mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 880mm and connects from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

• Brand: Sparex
• Clutch Setting: 1400 Nm
• HP Rating @ 540 RPM: 35 HP (up to 54 HP)
• Kilowatt Power Rating @ 540 RPM: 26 kW
• Torque Range: 335 - 1240 Nm (Max Torque: 460 Nm)
• Total Closed Length: 1095 mm
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 74.5 mm
• Shearbolt Clutch Bolt Diameter: 8 mm
• Shearbolt Clutch Radius: 48 mm
• Italian Series: AB4/A4
• PTO Series: AB4/A4
• Tube Reference: 12507/12508
• Tariff Code: 8483908990

Compatibility:

This PTO shaft serves as an alternative to part numbers 128688 and 128713. It is compatible with various implements and is designed to meet the needs of agricultural machinery.

Related Products:

• 10608
• 163810
• 166692
• 166693

Upgrade your equipment with the reliable and efficient Sparex PTO Shaft. Perfect for enhancing the performance of your agricultural machinery.
