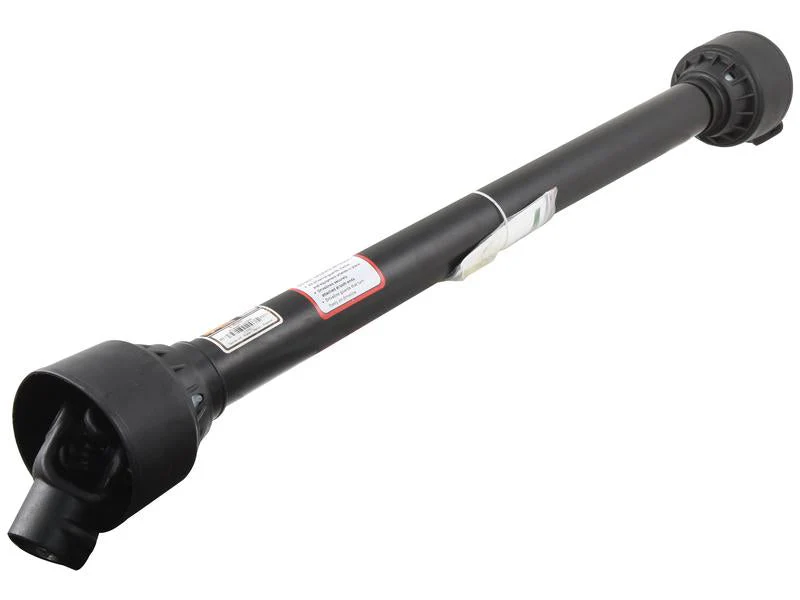

Sparex PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Part Number: S.164290

The Sparex PTO Shaft is a high-performance component designed for agricultural machinery, offering exceptional durability and efficiency. This PTO shaft is an ideal alternative to part numbers 6700, 128686, and 128690, ensuring compatibility with a variety of implements.

Key Features:

• Brand: Sparex
• HP Rating @ 540RPM: 47 HP (up to 54 HP)
• Kilowatt Power Rating @ 540RPM: 35 kW
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB5/A5
• Lz Length: 860 mm
• Total Closed Length: 1080 mm
• Torque: 335 - 1240 Nm (620 Nm nominal)
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 79.4 mm
• Tube Reference: 12509/12510
• Related Products: 163812, 166692, 166693
• Tariff Code: 8483908990

This PTO shaft is engineered to meet the demands of various agricultural applications, providing reliable performance and ease of use. Whether you're replacing an old shaft or upgrading your equipment, the Sparex PTO Shaft is the perfect choice for enhancing your machinery's capabilities.
