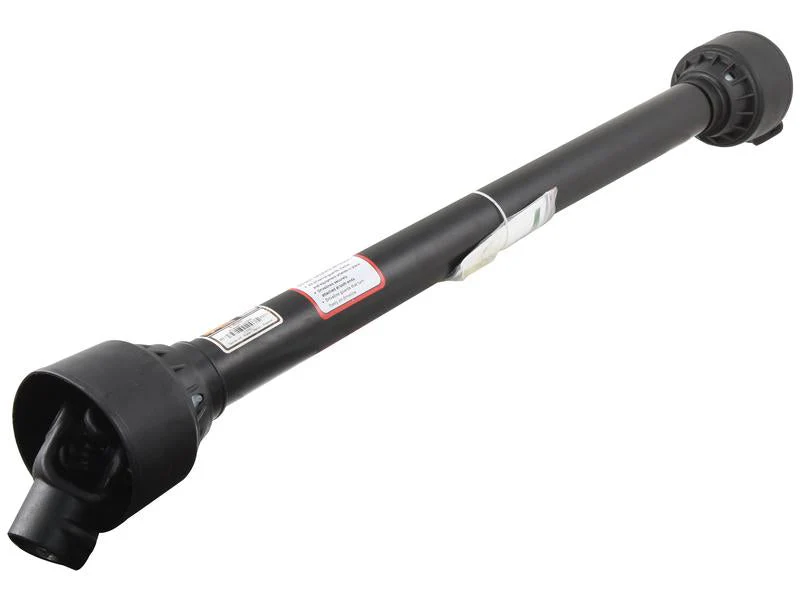

Sparex PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.164282

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft is an excellent alternative to part numbers 128681 and 128697, making it a versatile choice for various applications.

Key Specifications:

• Brand: Sparex
• HP Rating @ 540RPM: 35 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB4/A4
• Kilowatt Power Rating @ 540RPM: 26 kW
• Lz Length: 710 mm
• PTO Series: AB4/A4
• Torque: 335 - 1240 Nm
• Torque (Nm): 460 Nm
• Total Closed Length: 36.4 in (925 mm)
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Tube Ref: 12507/12508
• Universal Joint Dimensions: 27 x 74.5 mm
• Tariff Code: 8483908990

Related Products:

• 10608
• 163810
• 166692
• 166693

Whether you're looking to replace an existing PTO shaft or upgrade your equipment, the Sparex PTO Shaft is engineered to meet your needs with reliability and efficiency. Enhance your machinery's performance with this robust and dependable component.
