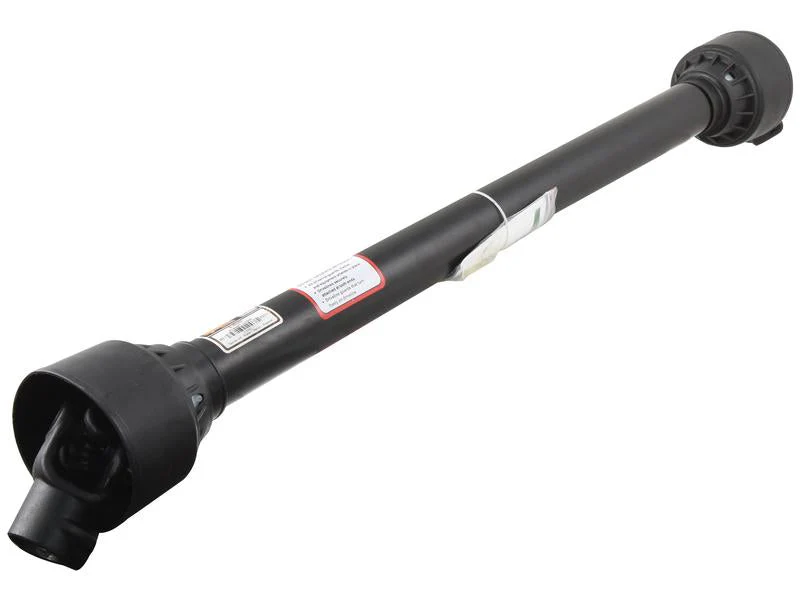

Sparex PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Part Number: S.164289

The Sparex PTO Shaft is designed for optimal performance and durability, making it an essential component for your agricultural machinery. This PTO shaft is a reliable alternative to part numbers 128674 and 128689.

Key Features:

• Brand: Sparex
• HP Rating @ 540RPM: 47 HP (up to 54 HP)
• Kilowatt Power Rating @ 540RPM: 35 kW
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB5/A5
• PTO Series: AB5/A5
• Torque: 335 - 1240 Nm (620 Nm nominal)
• Total Closed Length: 780 mm
• Lz Length: 560 mm
• Tube Profile: Triangle
• Tube Reference: 12509/12510
• Universal Joint Dimensions: 30.2 x 79.4 mm
• Tariff Code: 8483908990

Related Products:

• 163812
• 166692
• 166693

This PTO shaft is not associated with any specific OEM part number or particular make and model, ensuring versatility across various applications. Upgrade your machinery with the Sparex PTO Shaft for enhanced efficiency and performance.
