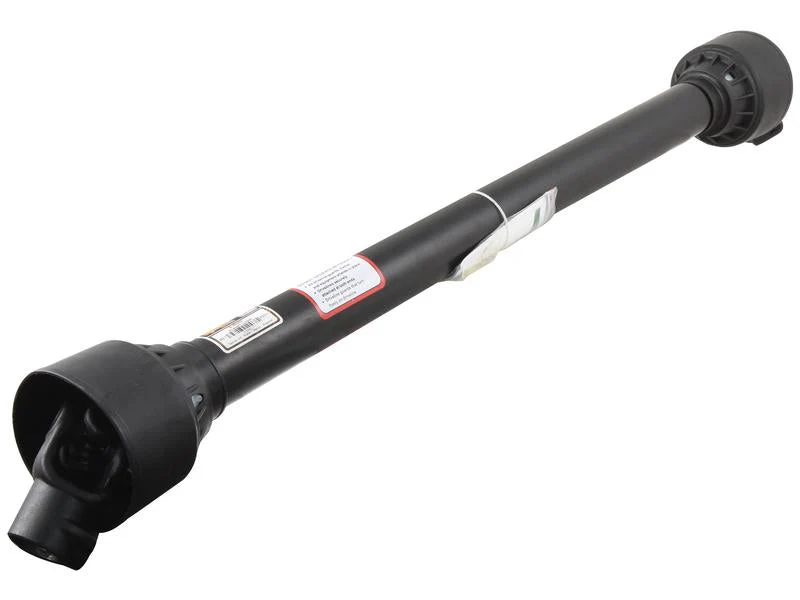

Sparex PTO Shaft - Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Part Number: S.164270

The Sparex PTO Shaft is designed for optimal performance and durability, making it an essential component for your agricultural machinery. This high-quality PTO shaft is an excellent alternative to part numbers 128671 and 128715.

Key Features:

• Brand: Sparex
• HP Rating @ 540RPM: 16 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB1/A1
• Kilowatt Power Rating @ 540RPM: 12 kW
• Lz Length: 560 mm
• PTO Series: AB1/A1
• Torque: 210-334 Nm
• Total Closed Length: 29.25 inches (743 mm)
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 22 x 54 mm

Additional Information:

This PTO shaft is not associated with any particular OEM part number, making it a versatile choice for various applications. It is compatible with related products such as 10607, 163810, 166692, and 166693.

Tariff Code: 8483908990

Tube Reference: 12502/12503

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft, designed to meet the demands of modern agricultural tasks.
