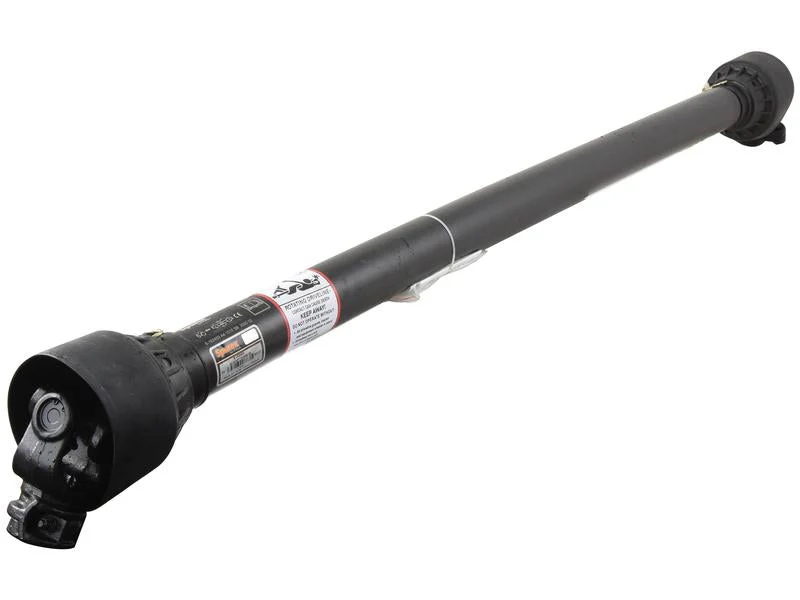

Sparex PTO Shaft - (Lz) Length: 1510mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1510mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

• Brand: Sparex
• Alternative to: 110579
• Clutch Setting: 2700 Nm
• HP Rating @ 540RPM: 95 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 70 kW
• Torque: 335 - 1240 Nm
• Total Closed Length: 1782 mm
• Shearbolt Clutch Bolt Diameter: 10 mm
• Shearbolt Clutch Radius: 60 mm
• Universal Joint Dimensions: 35 x 106.5 mm
• Tube Profile: Triangle
• Tube Reference: 12512/12522
• Italian Series: AB8N/A8N
• PTO Series: AB8N/A8N
• Related Products: 166692, 166693
• Tariff Code: 8483908990

This PTO shaft is engineered to meet the demands of various agricultural applications, ensuring reliable performance and compatibility. Whether you're replacing an old shaft or upgrading your equipment, the Sparex PTO Shaft is the perfect choice for your needs.

Product SKU: SP-164311

Supplier: Sparex

Note: This product is not associated with any particular OEM part number or specific make or model.
