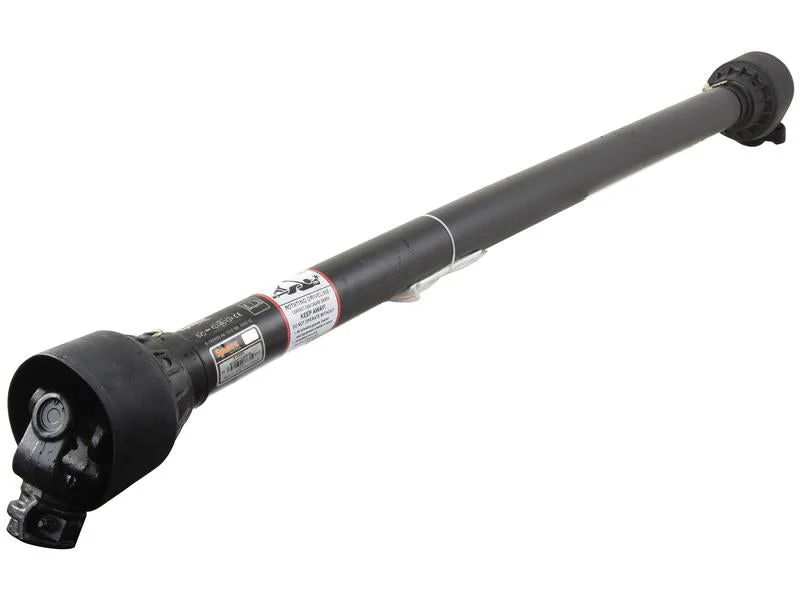

Sparex PTO Shaft - (Lz) Length: 1510mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1510mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

• Alternative to: 166273
• Brand: Sparex
• Clutch Setting: 2500 Nm
• HP Rating @ 540 RPM: 64 HP
• HP Rating Range @ 540 RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540 RPM: 47 kW
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• PTO Series: AB6/A6
• Torque: 335 - 1240 Nm
• Total Closed Length: 1765 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Shearbolt Clutch Bolt Ø: 10 mm
• Shearbolt Clutch Radius: 55 mm
• Tariff Code: 8483908990
• Tube Ref: 12509/12512

Related Products:

• 163813
• 166692
• 166693

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft. Perfect for a variety of applications, this PTO shaft ensures high performance and compatibility with the Italian Series AB6/A6. Experience the difference with Sparex!
