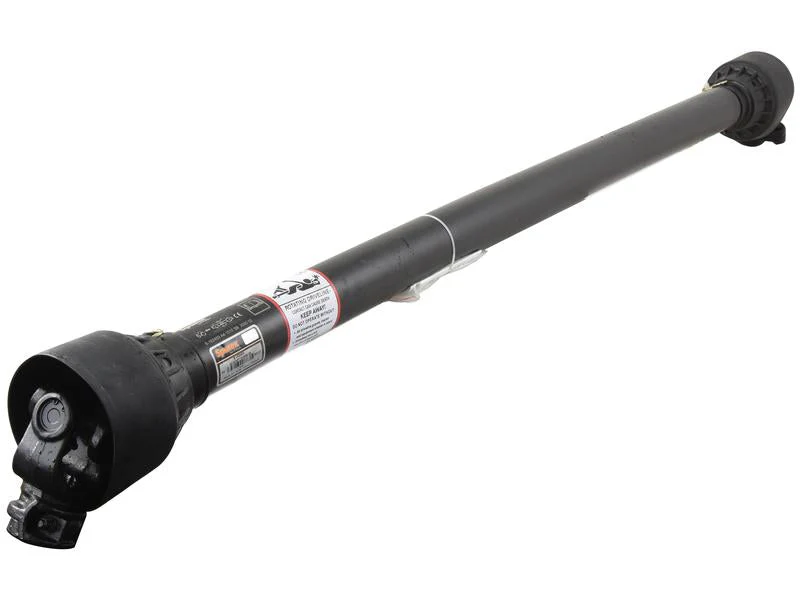

Sparex PTO Shaft - (Lz) Length: 1510mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1510mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

• Brand: Sparex
• Alternative to: 166271
• Clutch Setting: 1600 Nm
• HP Rating @ 540RPM: 47 HP (up to 54 HP)
• Kilowatt Power Rating @ 540RPM: 35 kW
• Torque Range: 335 - 1240 Nm (Max Torque: 620 Nm)
• Total Closed Length: 1732 mm
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 79.4 mm
• Shearbolt Clutch Bolt Diameter: 8 mm
• Shearbolt Clutch Radius: 55 mm
• Italian Series: AB5/A5
• PTO Series: AB5/A5
• Tube Reference: 12509/12510
• Related Products: 163813, 166692, 166693
• Tariff Code: 8483908990

This PTO shaft is engineered for reliability and efficiency, making it an essential component for your agricultural machinery. Whether you're replacing an old part or upgrading your equipment, the Sparex PTO Shaft ensures seamless operation and compatibility.

Product SKU: SP-164297

Supplier: Sparex

OEM Fitment Information: This product is not associated with any particular OEM part number.

Machine Fitment Information: This product is not associated with any particular make or model.
