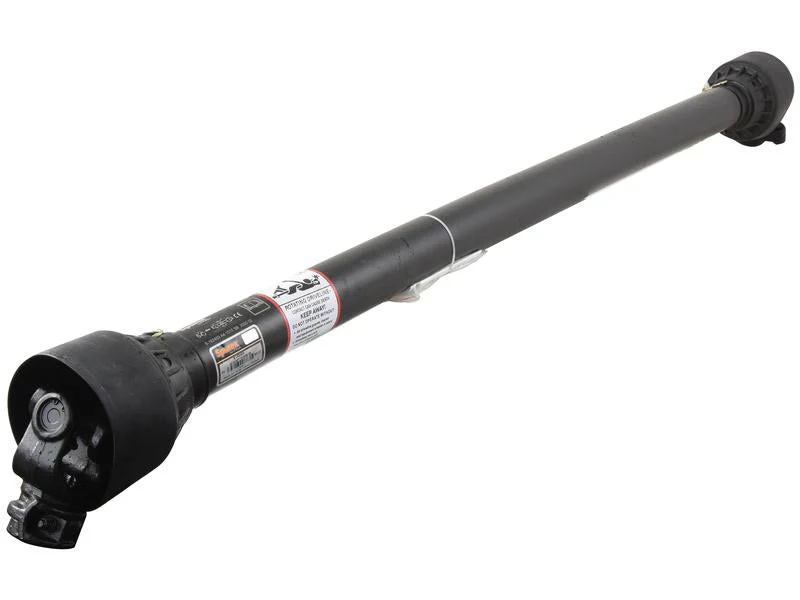

Sparex PTO Shaft - Length: 1510mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1510mm and connects with a 1 3/8'' x 6 Spline Quick Release at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

• Brand: Sparex
• Alternative to: 143027
• Clutch Setting: 1400 Nm
• HP Rating @ 540 RPM: 35 HP (up to 54 HP)
• Kilowatt Power Rating @ 540 RPM: 26 kW
• Torque Range: 335 - 1240 Nm (Max Torque: 460 Nm)
• Total Closed Length: 1725 mm
• Shearbolt Clutch Bolt Diameter: 8 mm
• Shearbolt Clutch Radius: 48 mm
• Universal Joint Dimensions: 27 x 74.5 mm
• Tube Profile: Triangle
• Tube Reference: 12507/12508
• Italian Series: AB4/A4
• PTO Series: AB4/A4
• Related Products: 2448, 4814, 4815, 59607, 59636, 6048, 6100, 6101, 6157, 163811, 166692, 166693
• Tariff Code: 8483908990

This PTO shaft is engineered for reliability and efficiency, making it an essential component for your agricultural machinery. Whether you're replacing an old shaft or upgrading your equipment, the Sparex PTO Shaft ensures seamless operation and compatibility.

Product SKU: SP-162403

Note: This product is not associated with any particular make or model.
