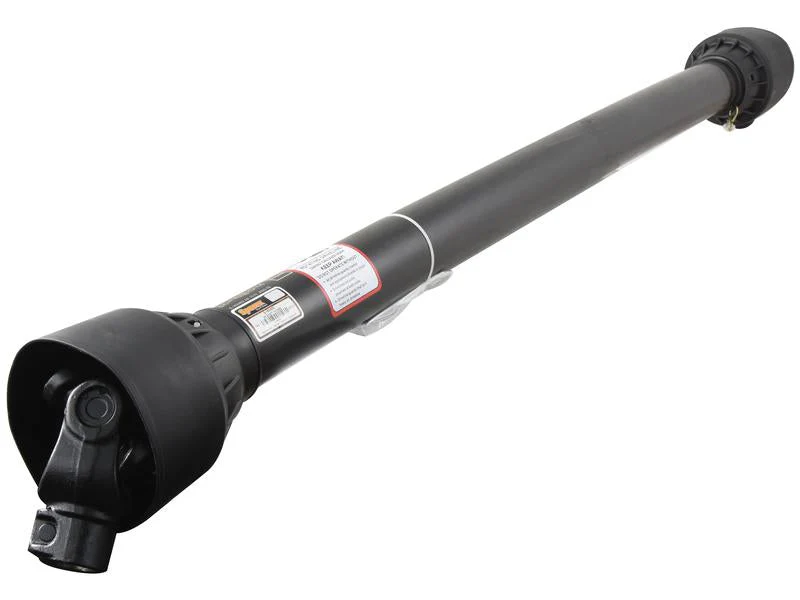

Sparex PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.162402

Product image 1

Sparex PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.162402

Sparex PTO Shaft - Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Part Number: S.162402

The Sparex PTO Shaft is designed for optimal performance and durability, making it an essential component for your agricultural machinery. This high-quality PTO shaft is an excellent alternative to part number 164131.

Key Specifications:

  • Brand: Sparex
  • HP Rating @ 540RPM: 64 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540RPM: 47 kW
  • Torque: 335 - 1240 Nm (830 Nm nominal)
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Total Closed Length: 68.6 inches (1744 mm)
  • Lz Length: 1510 mm
  • Tube Profile: Triangle
  • Tube Ref: 12509/12512
  • Universal Joint Dimensions: 30.2 x 92 mm
  • Italian Series: AB6/A6
  • PTO Series: AB6/A6
  • Tariff Code: 8483908990

Related Products:

  • 2449
  • 4816
  • 4817
  • 59611
  • 59638
  • 6058
  • 6120
  • 6121
  • 163813
  • 166692
  • 166693

This PTO shaft is not associated with any particular OEM part number or specific make and model, ensuring versatility across various applications. Upgrade your machinery with the reliable performance of the Sparex PTO Shaft today!

$280.00
