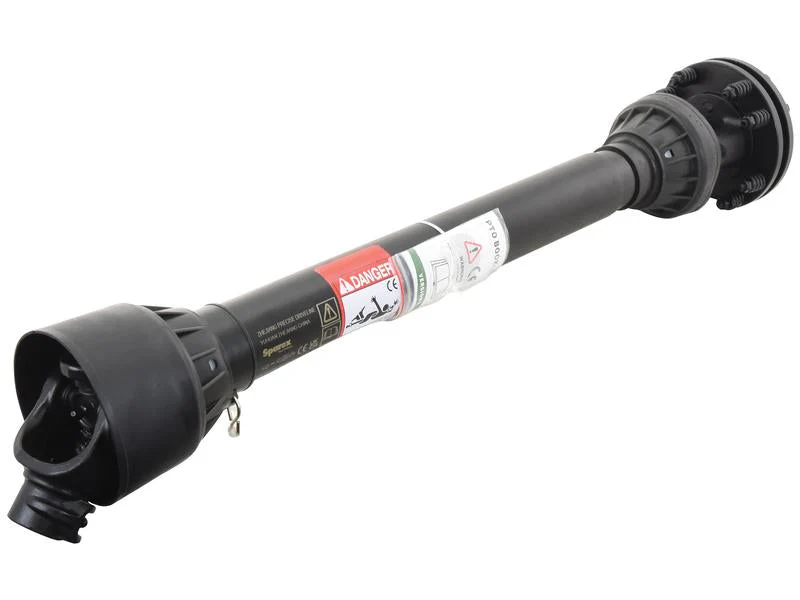

Sparex PTO Shaft - (Lz) Length: 1510mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1510mm and is equipped with a 1 3/8'' x 6 Spline Q.R. connection on the tractor end, transitioning to a 1 3/8'' x 6 Spline Friction Disc Clutch on the implement end.

Key Specifications:

• Brand: Sparex
• Clutch Setting: 1400 Nm
• HP Rating @ 540RPM: 95 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 70 kW
• Number of Discs: 2
• Torque: 335 - 1240 Nm
• Total Closed Length: 1801 mm
• Tube Profile: Triangle
• Universal Joint Dimensions: 35 x 106.5 mm
• Italian Series: AB8N/A8N
• PTO Series: AB8N/A8N
• Related Products: 166692, 166693
• Tariff Code: 8483908990
• Tube Reference: 12512/12522

This PTO shaft is engineered to meet the demands of various agricultural applications, ensuring reliable power transfer and efficiency. With a robust torque range of 1240 Nm, it is suitable for a wide array of implements.

Upgrade your machinery with the Sparex PTO Shaft and experience enhanced performance and durability. Perfect for those seeking a reliable solution for their agricultural needs.
