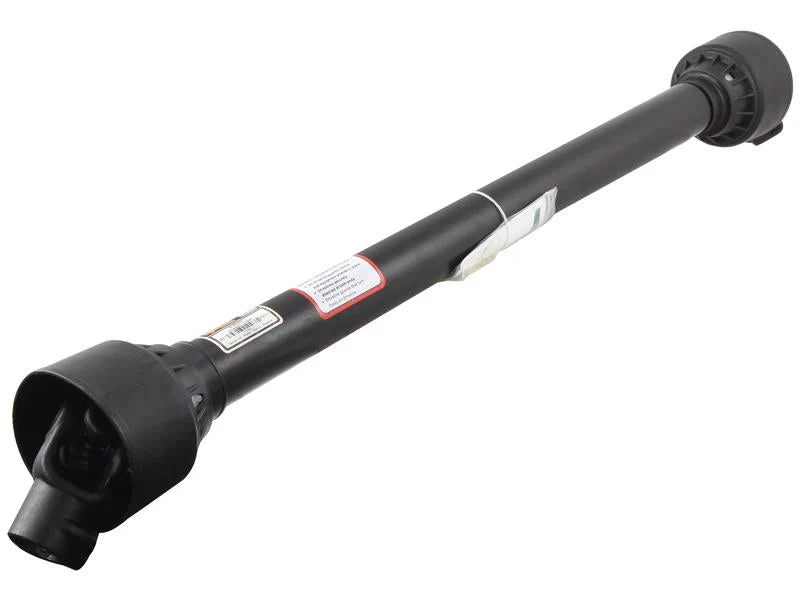

Sparex PTO Shaft - (Lz) Length: 1310mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft is an excellent alternative to part numbers 128671 and 128683, making it a versatile choice for various applications.

Product Specifications

• Brand: Sparex
• HP Rating @ 540RPM: 35 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB4/A4
• Kilowatt Power Rating @ 540RPM: 26 kW
• Lz Length: 1310 mm
• PTO Series: AB4/A4
• Torque: 335 - 1240 Nm
• Torque (Nm): 460 Nm
• Total Closed Length: 49.4 in (1525 mm)
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Tube Ref: 12507/12508
• Universal Joint Dimensions: 27 x 74.5 mm
• Tariff Code: 8483908990

Related Products

Explore our range of related products: 10608, 163811, 166692, 166693.

Whether you're looking to replace an existing PTO shaft or upgrade your equipment, the Sparex PTO Shaft is engineered to meet your needs with reliability and efficiency. Enhance your machinery's performance today!
