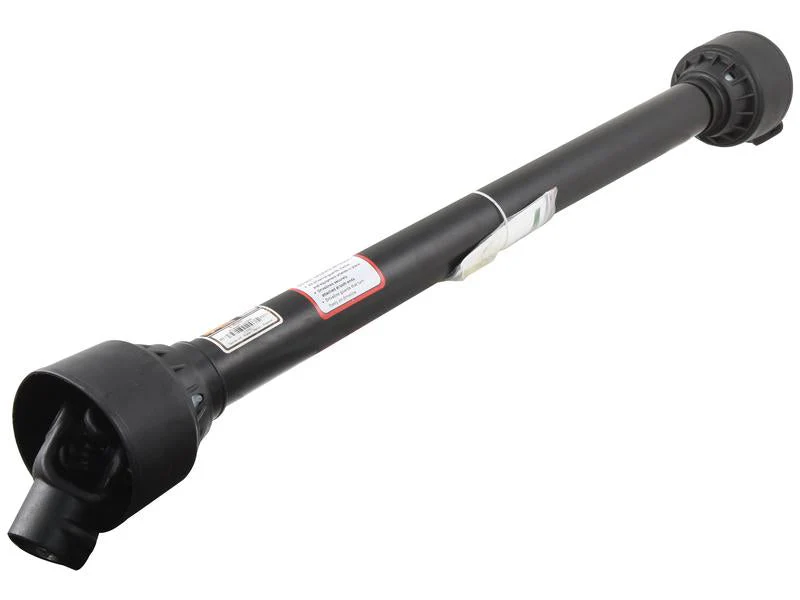

Sparex PTO Shaft - (Lz) Length: 1210mm
Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1210mm and is equipped with a 1 3/8'' x 6 Spline Quick Release at the tractor end, ensuring a secure connection for your agricultural equipment.
Key Specifications:
- Brand: Sparex
- HP Rating @ 540RPM: 16 HP
- HP Rating Range @ 540RPM: Up to 54 HP
- Implement End: 25mm Bore Clamp Bolt Yoke with 8mm Key
- Italian Series: AB1/A1
- Kilowatt Power Rating @ 540RPM: 12 kW
- Total Closed Length: 1393mm
- Torque: 210-334 Nm
- Tractor End: 1 3/8'' x 6 Spline Q.R.
- Tube Profile: Triangle
- Universal Joint Dimensions: 22 x 54mm
- Tube Reference: 12502/12503
- Tariff Code: 8483908990
Compatibility:
This PTO shaft is part of the AB1/A1 series and is compatible with various implements. Please note that this product is not associated with any specific OEM part number or particular make or model.
Related Products:
- 6093
- 163811
- 166692
- 166693
Upgrade your agricultural machinery with the reliable and efficient Sparex PTO Shaft. Designed for high performance, this shaft is an essential component for any farming operation.
