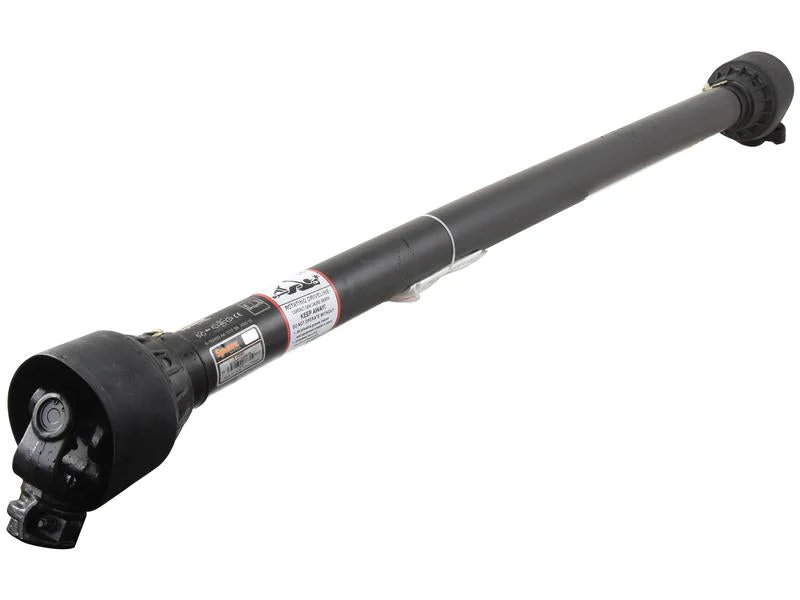

Sparex PTO Shaft - (Lz) Length: 1210mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1210mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

• Brand: Sparex
• Clutch Setting: 1400 Nm
• HP Rating @ 540 RPM: 35 HP (up to 54 HP)
• Kilowatt Power Rating @ 540 RPM: 26 kW
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Italian Series: AB4/A4
• Torque: 335 - 1240 Nm (460 Nm nominal)
• Total Closed Length: 1425 mm
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 74.5 mm
• Shearbolt Clutch Bolt Diameter: 8 mm
• Shearbolt Clutch Radius: 48 mm
• Tube Reference: 12507/12508
• Related Products: 10608, 163811, 166692, 166693
• Tariff Code: 8483908990

This PTO Shaft is perfect for a variety of agricultural applications, ensuring reliable power transfer and efficiency. With its robust construction and precise engineering, the Sparex PTO Shaft is an essential component for your machinery.

Product SKU: SP-164286

Note: This product is not associated with any particular OEM part number or specific make and model.
