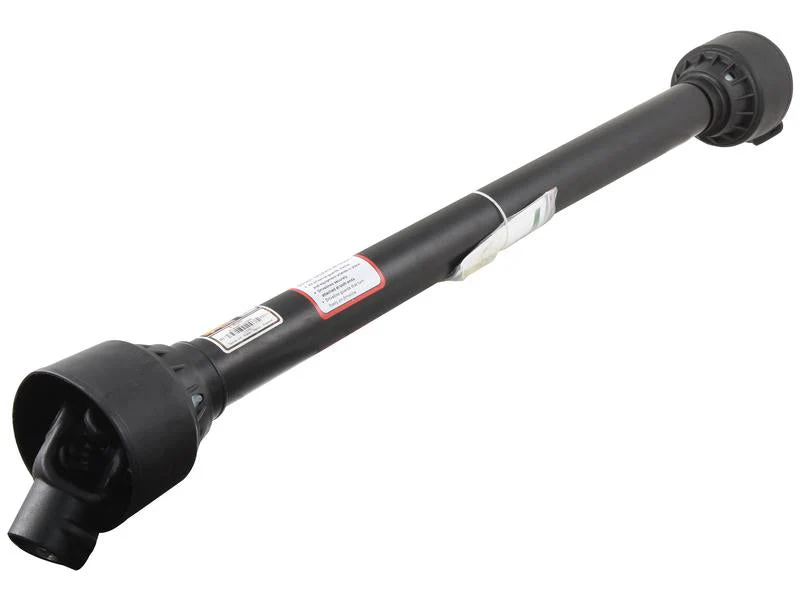

Sparex PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft is an excellent alternative to part number 166269 and is compatible with the German Series AW36/W2500.

Key Specifications:

• Brand: Sparex
• HP Rating @ 540RPM: 90 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 66 kW
• Lz Length: 1210 mm
• Total Closed Length: 1444 mm
• Torque: 335 - 1240 Nm (1175 Nm nominal)
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Star
• Tube Ref: S4/S5
• Universal Joint Dimensions: 36 x 89 mm
• PTO Series: AW36/W2500
• Related Products: 163813
• Tariff Code: 8483908990

This PTO shaft is engineered to deliver reliable power transfer for various agricultural applications. With its robust construction and precise dimensions, it ensures compatibility and efficiency in your machinery.

Upgrade your equipment with the Sparex PTO Shaft today and experience enhanced performance and durability!
