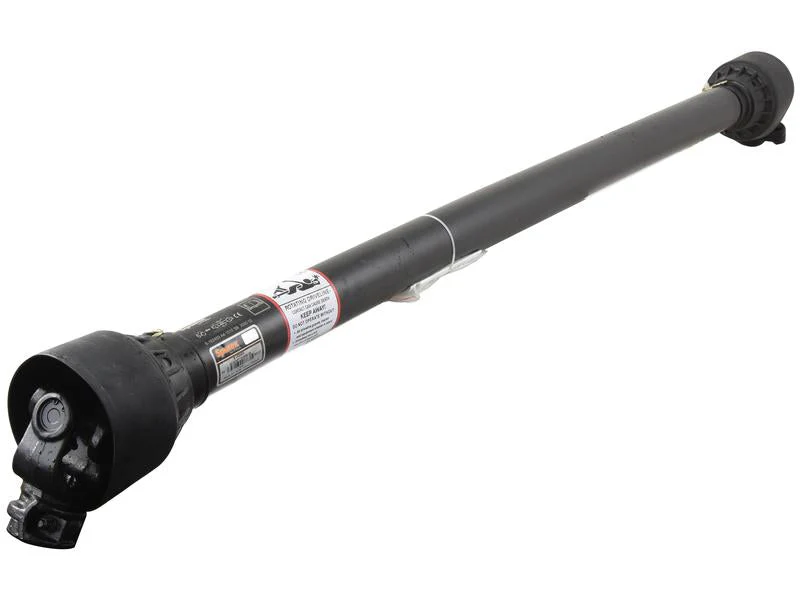

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

• Brand: Sparex
• Alternative to: 128676
• Clutch Setting: 790 Nm
• HP Rating @ 540 RPM: 21 HP (up to 54 HP)
• Kilowatt Power Rating @ 540 RPM: 15 kW
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• PTO Series: AB2/A2
• Torque: 210-334 Nm (270 Nm nominal)
• Total Closed Length: 1206 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 23.8 x 61.2 mm
• Shearbolt Clutch Bolt Diameter: 6 mm
• Shearbolt Clutch Radius: 48 mm
• Tariff Code: 8483908990
• Related Products: 10607, 163811, 166692, 166693
• Tube Reference: 12504/12505

This Sparex PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring reliable performance and compatibility with the Italian Series AB2/A2. Upgrade your machinery with this robust and efficient PTO shaft today!
