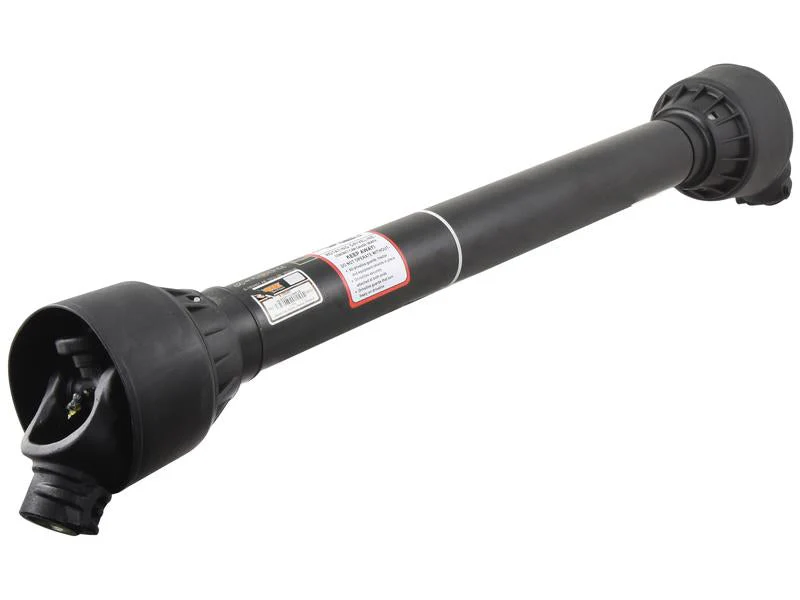

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

• Brand: Sparex
• Alternative to: 128701
• Clutch Setting: 2500 Nm
• HP Rating @ 540RPM: 64 HP (Range: 55 to 119 HP)
• Kilowatt Power Rating @ 540RPM: 47 kW
• Torque: 335 - 1240 Nm (Max Torque: 830 Nm)
• Total Closed Length: 49.8 inches (1265 mm)
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Shearbolt Clutch Bolt Diameter: 10 mm
• Shearbolt Clutch Radius: 55 mm
• Italian Series: AB6/A6
• PTO Series: AB6/A6
• Tube Reference: 12509/12512
• Tariff Code: 8483908990

Related Products:

Explore our range of compatible products: 2449, 24816, 24817, 59609, 59638, 6058, 6120, 6121, 6158, 163813, 166692, 166693.

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft. Perfect for various applications, this PTO shaft ensures seamless operation and enhanced performance.
